"DOVE"
letter balance

maker: Charles Richtmann, Newark, New Jersey, USA
bruine lijn
Dove letter scale
"DOVE" letter scale


This little letter scale is named "DOVE". This name is on original boxes. The scale design was made by Charles Richtmann. A patent was applied for on March 14 1887. The patent was granted on November 22 1887, it has the US patent number 373,568. This patent date is engraved in the scale. The scale of measurement is odd. It has a division in GRAMM (German) and in OUNCE. It shows half ounce marks up to 3 ounces and 15 gramm marks up to 90 gramms. This subdivision in 15 grams is somewhat ackward. It has two pointers. The text of the patent reveals this weighing scale is intended for weighing letters and other light parcels or packages. The actual letter scale is very similar to the drawings presented in the patent. The broad and steady bearings are a nice feature.   It is intended to disassemble

scale in front of the EQM article
the "DOVE" in front
of the EQM article

detail 0
disassembled

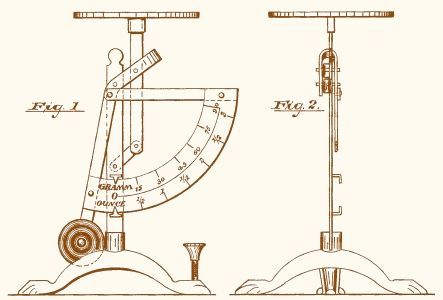

patent figure 1 and 2
figures 1 & 2 of US patent No. 373,568 granted Nov. 22, 1887

detail 00
the brass mechanism part


this letter scale very simple, "thereby greatly facilitating the packing of the device for transportation." My specimen didn't have an original top plate. The home-made brass plate shown here is a good replacement. In Equilibrium No. 4 of 2006 on pages 3196-3200 Steve Beare presented an extensive article about the "DOVE" letter balance and its designer Richtmann. Steve Beare owns a scale with the text: PAT.APD. FOR instead of PAT.NOV.22'87 as shown here. Below several photos show more details of this nice small old letter scale.

detail 1
home-made top plate

detail 2
bottom side of top plate

detail 3
plate attached to mechanism

detail 4
bearings

detail 5
bearings

detail 6
bearing figure of the patent

detail 7
date patent Nov. 22, 1887
detail 8
two pointers

detail 9
capacity 90 grams / 3 ounces
detail 10
the tripod

detail 11
the tripod patent figure

detail 12
tripod with adjusting screw

detail 13
loaded with 50 grams

detail 14
claw shape tripod ends

detail 15
the lead filled
ornamented poise
