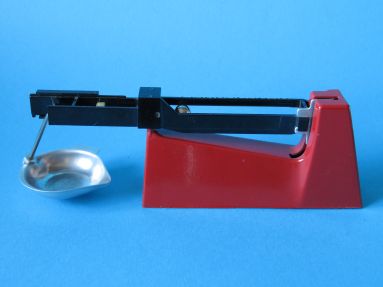

Lee gunpowder scale
Lee powder scale


the Lee gunpowder scale is made by Lee Precision, Inc. from Hatford, Wisconsin, U.S.A.. The weighing range is 110 grains, that is converted 7.128 grams. This gunpowder or powder scale has magnetic damping. In the aluminum house, at the left near the slit there are two magnets that inhibit the movement of the plastic scale arm by exerting a counterforce on the aluminum scale arm part part. (Search for 'Eddy current brake' or 'magnetic damping'). The used magnets are somewhat weak so the up and down movements relatively still take a long time. The fine reading on the sliding part is rather special, a variation on the nonius or vernier slider, see Wikipedia.
Previously, a gunpowder scale with a larger weighing range has been shown, see Lyman. This Lyman gunpowder scale has a similar magnetic damping.
Below som more images of the Lee precision powder scale.



back of the scale
back of the powder scale

detail 1
the aluminum scale base



detail 2
the scale beam with ball poise and fine adjustment



detail 3
aluminum weighing pan next to the other scale parts
on the left at the end of the beam is the aluminum
plate on which the magnet damping is exercised

weger
scale from above shows the ball and the 10 positions
on the left the aluminum plate in the slot of
the magnetic damping is clearly visible

wegerpan
the weighing pan hangs on the beam


de Lee kruitweger
animation: [move the pointer over the photo]
the weighing pan balances the powder scale


detail 4
the ten positions for the ball weight

detail 5
the unloaded powder scale is in equilibrium

detail 6
nonius or vernier-like sliding part for weighing
to do in 0.1 grain (= 0.00648 gram)

detail 7
test with a weight of 5 grams

detail 8
the 5 grams weight in the scale pan

detail 9
check on a digital scale

detail 10
the scale is in balance on 70 grains plus some more



detail 11
here the ball weight on 70 grains can be seen better



detail 12
the slider bottom right is at 6 nearly 7 grains
the vertical lines above are at 7, 8 and 9
result: the weight weighs 76.8 grains = 4.977 grams

detail 13

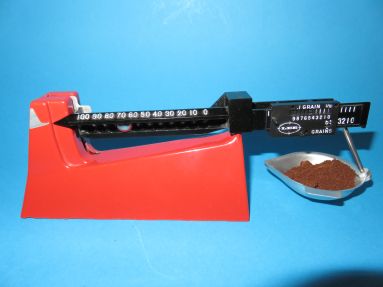

the powder scale with almost 5 grams of coffee powder

detail 14
76.25 grains is 4.941 grams coffee

image instructions

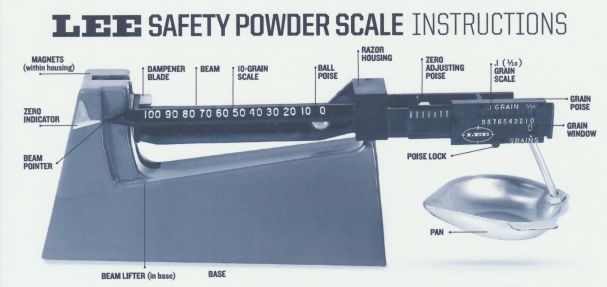

figure from the Lee safety powder scale instructions (with permission from van Lee Precision, Inc)

detail 18

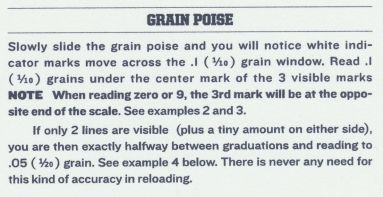

directions for reading the 0.1 grain scale (permission Lee)

detail 19
example 4 from the instructions (permission Lee)

detail 15
the slider is freely movable in this (out) position
of the little black button

detail 16
pressing the little black button will lock the slider


detail 17
the slider is blocked here, the little black button is
in pushed (in) position
