MAGIC SCALE
egg scale

maker: National Poultry Equipment Co., Seattle, Washington, U.S.A.
bruine lijn

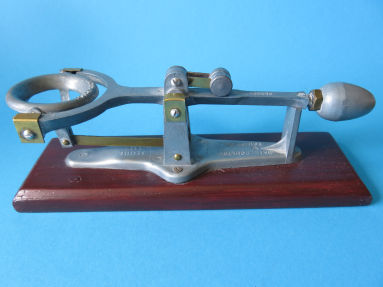

Magic egg scale, maker National Poultry Equipt. Co.
Magic egg scale, maker National Poultry Equipment Company


This egg scale originates from the U.S.A.. The text MAGIC SCALE is at the edge of the egg holder. This egg grader is made by National Poultry Equipment Company, Seattle, Washington. More information about National Poultry egg graders is given in North American Egg Scales - from ABC to Zenith by Charley Amsbaugh. This is the aluminum version. Later also a plastic version was produced. The design was made by Ellis E. Powell and on September 7, 1937 granted with an American Design Patent Des.105,970. The actual poise differs from the one on the drawings of the design patent. The oval poise is a more attractive shape compared to the plain hex nut of the patent drawings.
This typical egg grader has no measurements scale with the egg weights per piece or per dozen. The egg scale has a large fixed counterweight and two turn over weights. With this the egg scale has a division into four weight classes:
- lighter than 15/8oz;
- between 15/8 and 17/8 oz.;
- between 17/8 and 21/8oz;
- heavier than 21/8 oz.

other side of the egg scale
the egg scale seen from the other side


I don't know if a leaflet came with the egg grader. It is also unknown whether the egg scale came in a box with instructions. The parts are made of cast aluminum. The tilt axes (= knife edge bearings) are secured with screwed-on brass plates. Here the egg scale is screwed on a wooden board. The aluminum bottom is completely flat.
Below some more pictures of the National Poultry Equipment Company egg scale.

detail 1
from above

detail 2
as drawn in US Design Patent 105,970
the egg scale from above and side view

detail 3
side view

moving scale
animation: with an egg heavier than 2 1/8 oz.
[move pointer over the photo]

changing egg color
animation: egg color
[move pointer over the photo]

egg trick
animation: trick with eggs
[move pointer over the photo]

detail 10
knife edge bearing of the egg holder

detail 20
knife edge bearing main axis of the the egg grader

detail 14
NATIONAL POULTRY EQUIPT. CO.

detail 15
SEATTLE, WASH.

detail 16
PAT.DES. 105970

detail 17
with both turn over weights
to the left
detail 18
one turn over weight to the right
and the other one to the left
detail 19
with both turn over weights to
the right
detail 11
side view counterweight side

detail 12
the turn over weights

detail 13
egg in the holder

detail 4
the knife edge bearing of the egg holder

detail 5
side view egg holder side

detail 6
MAGIC SCALE

detail 7
the aluminum oval counterweight

detail 8
the smooth aluminum bottom

detail 9
the wooden base of the egg scale
