JIFFY WAY
egg scale

design: Benjamin Zimmer, Minneapolis, Minn. U.S.A.
supplier: Brower Mfg. Co., Quincy. Ill. U.S.A.
bruine lijn
egg grader, supplier Brower Mfg.

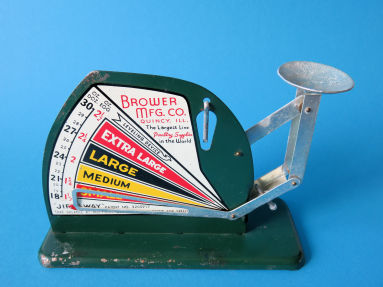

Jiffy Way egg grading scale, U.S.A.


This egg scale originates from the U.S.A.. Jiffy Way is the name under which this model became known. Benjamin Zimmer from Minneapolis, Minnesota is the designer. The patent application dates from April 8, 1938. The patent US2,205,917 was issued on June 25, 1940. In the patent, the Jiffy Way egg weigher is mounted on a metal can with an egg-illuminating lamp and a scouring pad to wipe the eggs. More information about the Jiffy Way egg graders is given in North American Egg Scales - from ABC to Zenith by Charley Amsbaugh. Several models and versions exist. This typical American egg scale has a scale on which the weight per egg and per dozen eggs is stated. This scale ranges from 18 to 30 ounces per dozen. The four American egg weight classes are also clearly on the scale. Small - Medium - Large - Extra Large. The scale has a set screw in the lower short lever. This can function as a stop to do a quicker classification in the weight classes.

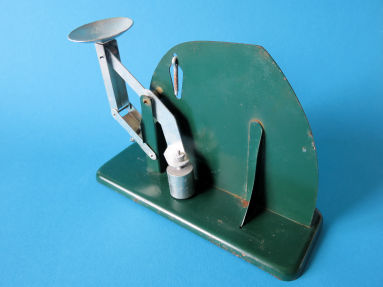

back of the egg scale
back of the egg scale


The counterweight is finely adjustable on thread. A split pin hanging in a window shows whether the scale is sufficiently horizontal. The metal Jiffy Way was made for at least sixteen different companies in the period 1938-1998. The company names were put on the scale, such as Brower Mfg Co. here. This Jiffy Way egg scale can be considered as the Jiffy I.
After that, the Jiffy Way was thoroughly redesigned and turned into an egg scale / kitchen scale, completely made of plastics: the Jiffy II. The maker / supplier is Kuhl Corporation, Flemington, New Jersey, U.S.A.
In May 2008, the Jiffy III a design made by Paul K. Boutiette, was protected with a Design Patent US D569.751. The application dates from May 2007. The Design patent has a duration of fourteen years. This well-known weighing chicken is still new for sale, among others at Kuhl Corporation.
Below some more pictures of the Jiffy Way egg scale.

egg scale with eggs
egg scale with eggs


egg scale action
animation: egg scale without and with egg
[move pointer over the photo]

scale with egg
back of the egg scale with an egg


detail 1
the Jiffy Way shows the patent number at the bottom of the scale

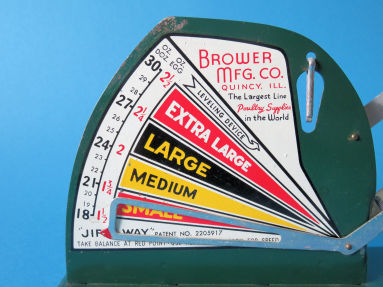

detail 2
4 egg weight classes and the weight in ounces per egg and per dozen eggs

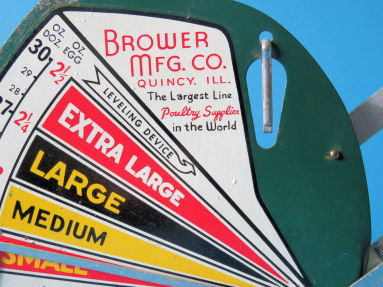

detail 3
Brower Mfg. Co., Quincy, Illinois, U.S.A. supplied this Jiffy

detail 4
adjustable stop

detail 5
the arm length of the counterweight can be adjusted

detail 6
the hanging split pin shows
whether or not the scale is level

detail 7
the aluminum egg holder

detail 8
the bottom shows the folded fastening tabs

detail 9
egg placed on the egg holder

Jiffy II
the plastic Jiffy II by Kuhl (± 2000)

patentfiguur

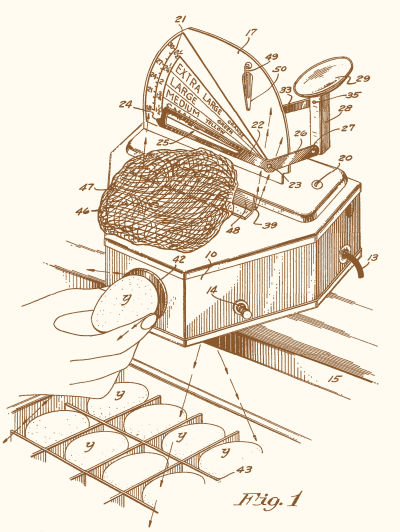

a patent figure of the Jiffy I from US patent 2,205,917 of 25 June 1940

Jiffy III
the Kuhl Jiffy III (2008)
