BECKER'S  SONS - ROTTERDAM
letter scale

restored in 1956 by:
J.S. Velthoen & Zn
Rotterdam - Schiedam
The Netherlands
bruine lijn
letter balance, maker Becker's Sons Rotterdam
letter balance, maker Becker's Sons Rotterdam


This balance made by Becker's Sons, Rotterdam is a postal balance. In 1914 the company moved its headquarters from Rotterdam to Brummen in the province of Gelderland. This letter scale is described in a Becker's Sons catalog of approximately 1911. The three rows of weights (4 + 4 + 3) are also recognizable in the image from the catalog. As one can read in the catalog, the letter scale is "exclusively used by the Mail Administration" (in Dutch: 'uitsluitend in gebruik bij de Administratie der Posterijen'. There exists also a version suitable up to one kilogram. I know of a same balance scale with the name Landre & Glinderman Amsterdam on the balance beam. In that letter scale the weights are in two rows (7 + 4).


letter scale
weighing range 500 grams

The Becker's Sons shown here has the following weights: 1 x 1g, 2 x 2g, 1 x 5g. 2 x 10g, 1 x 20g, 1x 50g 2 x 100g and 200g. Together that makes 500 grams. The letter scale presented here, was restored by J.S. Velthoen & Zn., Rotterdam-Schiedam in 1956, according to the little plaque attached on the wooden base. In this revision an ugly plastic spirit level was applied and three separately adjustable heavy duty feet were added below and partly in the wooden base. After this restoration the balance was approved individually again, the crown in the brass base of the stand is the sign of this approval. The inspection was done at the calibration office (in Dutch: ijkkantoor) number 6, which is in Rotterdam. Over time the plastic spirit level became empty. In 2006 I have replaced that plastic spirit level by a brass spirit level from another PTT letter scale of J.S. Velthoen & Zn. As shown on the detail picture, this spirit level unfortunately has a small black spot, the leveling is not prevented by this. The letter scale is leveled by turning the three sturdy set screws. The bubble of the spirit level is thereby centered in the inner ring on the glass part. The balance can then be fine tuned in perfect equilibrium at the right side of the balance beam by turning the adjustment nut. Then the indicator points out in the middle of the little ivory scale at the stand. Of the letter scale model with the two weight rows generic specimen exist also, i.e. no name, no brand.

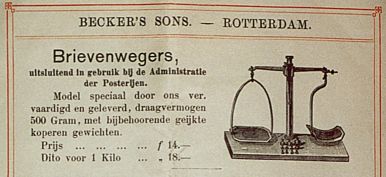

catalog fragment
as pictured in the Becker's Sons catalog of approximately 1911

rear of the balance
rear of the balance

plate
testimony plate as to proof of the
restoration by J.S. Velthoen & Zn
detail
top view

detail
scale beam

detail
the balance arms

detail
BECKER'S SONS

detail
ROTTERDAM

detail
500 g

detail
the factory mark for the
detachable parts left = 2 points

detail
knife edge bearing left

detail
knife edge bearing left

detail
the adjusting nut at the right

detail
knife edge bearing right

detail
the factory mark for the
detachable parts right = 1 point
detail
the main knife edge of the beam

detail
pointer from behind

detail
detail of knife edge support

detail
brass bearing block for main knife edge

detail
bearing block for main knife edge

detail
the lock nut of the pointer

detail
left pan

detail
frontal view pointer

detail
right scale

detail
top view left pan

detail
frontal view

detail
the curved right scale

detail
3 rows of slots for the weights

detail
the eleven weights in front of the scale

detail
the eleven weights placed
in the slots
detail
calibration office 6 = Rotterdam
mark of individually approval = crown
detail
the spirit level

detail
detail of the foot of the stand

detail
the eleven weights

detail
the central zone

detail
the eleven weights

detail
the eleven weights

detail
the eleven weights

detail
spirit level behind the weights

detail
brass bracket for adjustable leg

detail
the two-piece adjustable leg

detail
mounted two-piece adjustable leg

detail
The three adjustable feet in the picture

detail
both pans removed

detail
the beam lifted from the stand
