CARYATID
letter scale

maker: unknown, Germany
bruine lijn
Caryatid letter scale, maker unknown
Caryatid letter scale


This letter scale is shown in several catalogs from about 1908. According to these catalogs the letter scale was available in four versions:
1. with a fixed single range of 50 grams (2 oz. or 4/12 Russ. Loth);
2. with a dual range of 50 and 250 grams (2oz./9oz. or 4/20 Russ. Loth);
3. with a dual range of 60 and 350 grams (5/28 Russ. Loth);
4. with a dual range of 100 and 500 grams (4 oz./18oz. or 8/40 Russ. Loth).
A caryatid is a sculpted female figure serving as an architectural support taking the place of a column or a pillar supporting an entablature on her head. The Greek term karyatides literally means "maidens of Karyai".
In the catalogs of Kistler and of Ph.J. Maul this letter scale does not have the name Caryatid. Later in publications the winged female in this letter scale was described as being a kind of caryatid. Here a winged caryatid is supporting the main axis of the postal balance. This beautiful, majestic letter scale is presented here in a series of detailed pictures.



rear view of the letter scale
rear view of the letter scale

detail of scale
detail of the frame of the scale
showing flowers in a shell

the two positions of the counterweight
animation: the two positions
of the counterweight
-in reality a small lever rotates the counterweight-
brass top plate
the brass top plate



detail 1
the dismantled frame of the letter scale
totally reveals the winged caryatid
detail 2
a pedestal is visible on her head

detail 3
detailed wing

detail 4
the pedestal even shows
tiny little bricks
detail 5
majestic

detail 6
rear view

detail 7
main axis

detail 8
the counterweight in the
500 grams position

detail 9
dolphin-like fish head

detail 10
weighing ranges 100 and 500 grams

detail 11
shown in catalog of  ± 1908

detail 12
the counterweight in the
100 grams position
detail 13
enamel scale

detail 14
stripe per gram on 100g scale
stripe per 5 grams on 500g scale
detail 15
zero leveling screw in a wavy section

detail 16
the front

detail 17
a side view

detail 18
rear view

detail 19
dolphin rear view

detail 20
rear view

detail 21
shell rear view

detail 22
detail caryatid

detail 23

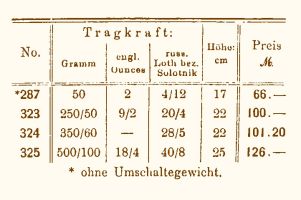

the available versions as presented
in the catalog of   ± 1908
detail 24
the wave-shaped swivel stand
