letter scale

advertising Dr. Bengué & Fils, pharmaciens, Paris, France
design: firm Balduin Heller's Söhne, Teplitz-Schönau in Czechoslovakia
bruine lijn
letter scale, maker unknown
Dr. Bengué letter scale


This letter scale was manufactured in Czechoslovakia, this country name is pressed into the bottom. The top plate of the scale is advertising six products of the French firm Dr. Bengué & Fils, pharmaciens, from Paris. The advertising imprint is graphically beautiful. The letter scale is selfadjusting to zero because the pointer arm is suspended rotatable. The scale range is 100 grams. In the first 20 grams every gram has a stripe of measure. Above 20 grams there is a stripe per five grams. Dr. Jules Bengué lived from 1840 to 1898. He has several patents to his name. The company stopped in 1976. From when this letter scale dates is unknown to me.
The design was made by the firm Balduin Heller's Söhne, Teplitz-Schönau in Czechoslovakia. It was protected in April 1935 by a German patent DE1334238. The top plate of this letter scale is even more consistent with the design shown in the patent.
Below som more pictures of this letter scale.

back of the letter scale
back of the letter scale

detail 00
display window each gram a stripe
up to 20 grams
patent drawing
figure from patent DE1334238 from April, 1935

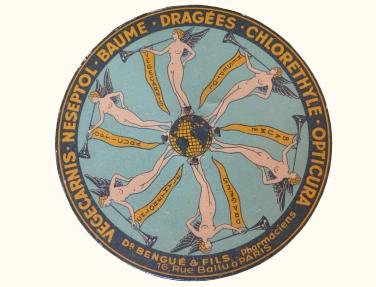

top view
Dr. Bengué & Fils, pharmaciens, 16, Rue Ballu á Paris
advertises six products with this letter scale:
VEGECARNIS, NESEPTOL, BAUME,
DRAGÉES, CHLORETHYLE, OPTICURA
detail 0
weighing range 100 grams

detail 1
mechanism hangs between
two walls of the scale housing
detail 2
odd shaped counterweight

detail 3
pointer pivots around axis

detail 4
the unloaded position

detail 5
loaded to the maximum of 100 grams

detail 6
above 20 gr. per 5 grams a stripe

detail 7
country of manufacture is on the bottom

detail 8
TCHÉCOSLOVAQUIE
= French translation for Czechoslovakia
detail 9
the letter scale next to another version
