wooden letter scale
a primary school
construction kit

supplier: Matches21de, Germany
bruine lijn
letter scale from construction kit
letter scale from construction kit


This letter scale was bought as a construction kit and is intended for primary school children age ten years and older. According to the instructions the weighing range of this letter scale is 0 - 100 grams. In reality, the 100 grams is just off the scale. The counterweight may be weighted with a metal washer in order to still achieve the 100 grams range. I find it so well enough. The construction manual (in German) is sufficiently clear. The large diameters of the shafts of 4 millimeters result in a strong influence of friction, despite the brass sleeve bearings. Smaller shaft diameters would greatly improve accuracy. before the final assembly paint the wooden parts in the desired color(s). I chose a color scheme according to the Rietveld style. I painted a second specimen plain simple yellow. I made a scale indicating the number of postal stamps: up to 20 grams one stamp, from 20 to 50 grams two stamps, and above 50 grams three stamps. Actually this is limited up to 100 grams, which here falls just outside of the scale. Below some more pictures of this bright colored wooden letter scale and some animations with two Rietveld-birds and the letter scale.

 N.B. In Zoetermeer and surroundings this Rietveld bird is better known as the bird of Jinotega. The city Zoetermeer is twinned with the city Jinotega in Nicaragua.


back of the letter scale
back of the letter scale

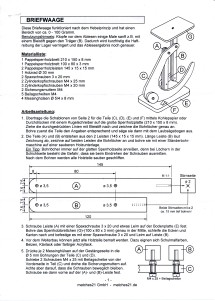

manual page 1
first page of the construction manual


animation
[move pointer over picture]
a Rietveld bird weighs just under
20 grams, so when sending
one stamp is enough

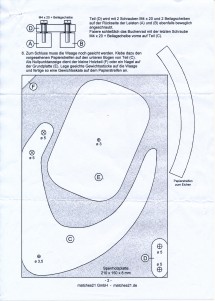

manual page 2
second page of the construction manual


detail 3
the kit with the construction manual
in the plastic packaging

detail 4
the unpacked components

detail 5
the small parts out of the paper bag

detail 7
test with 20 grams weight

detail 8
test with 50 grams weight

detail 9
test with 20 + 50 grams

detail 10
side view

detail 11
parallelogram mechanism

detail 12
the main shaft is a robust
M4 cylinder head bolt

detail 13
two scales in different colors

detail 14
the counterweight is slightly
too lightweighted

detail 15
totally yellow

detail 16
with 20 grams

detail 17
with 50 grams

detail 18
with 70 grams

animation
[move pointer over picture]
Is one stamp enough for a trip
across the Netherlands?
first a quick weigh....try to sit still....
weighing
......for a moment don't move......



animation
[move pointer over picture]
come down again!
yes it's sufficient to travel all over
the country for just one stamp!
