BIZERBA
letter scale

maker: Bizerba Waagen- und Machinenfabriken, Balingen, Germany
bruine lijn
letter scale, maker Bizerba
Bizerba letter scale


This 8.6 kilos heavy letter scale also was not intended for domestic use but was intended for use in German post offices and for use in mail rooms of larger companies. The mechanism of this letter scale is compact and complex. Put the mail item on the top plate and the pointer moves to the right. When it weighs more than 100 grams, swith to the next weighing range of 100-200 grams by pressing down the lower button [with the arrow] and shifting it to the right, repeat this step by step until the pointer moves in a range to the left and holds at an intermediate value. There are ten positions for this lower button. For scale values above 1000 grams one must rotate the triangular knob. The scale has twenty weighing zones of 100 grams and weighs per gram from zero to 2000 grams.
It is a Federlaufgewichtswaage. [literally: a spring-shiftingweight-scale]. Which current weighing range is switched in action by the lower knob can be seen in the two small windows of the dial. The triangular knob is also used to lock the mechanism during transport. This letter scale also has a damper filled with silicone oil. This damper is locked also during transport by the same triangular knob. At the right side of the scale down right is a lever to open and close the damper. Also placed at this side -down left- is an adjusting screw to regulate the pointer to zero. At the lower left of the front is a spirit level situated. At the left side of the scale this letter scale has one adjustable foot. At the right it has two fixed feet. A lead zone at the lower end of the front has a German verification office stamp. This letter scale has the same measuring scale on the back, the customer can follow the weighing and watch the result. On the back is also a yellow round sticker of a German gauging office with the indication that the verification is valid until 2005. The scale housing is mediocre,


back of the scale
back of the scale


not robust: partly thin-walled plastic injection molding and thin aluminum sheet bending. The glass dial cover plates break easily during transport. Below some more images of this Bizerba letter scale.

detail 1
left side with the
adjustable foot

detail 2
top view


detail 3
right side with down left the
fine adjustment screw and
down right the oil damper lever
de uiterste posities van de stelknop
[move the pointer over the photo]
animation:
the two end positions of the lower knob

de twee posities van de demperhendel
[move the pointer over the photo]
animation: the two positions
of the oil damper lever
left to right is from open to closed
detail 1

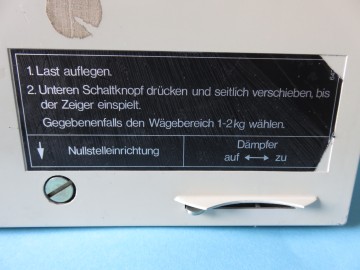

brief instructions how to weigh and direction
indicators zero adjustment screw and damper open and close

detail 2
adjustable foot for level adjustment

detail 1
rear view

detail 2
the 100 grams dial is subdivided per gram

detail 3
front view

detail 4
left side

detail 5
the dial of the back, zero at right and 100 at left

detail 6
right side

detail 7
the spirit level at the left

detail 8
the lead with a verification office mark

detail 9
the triangular knob with three positions:
0-1kg; 1-2kg; and locked (= Arretiert)

detail 1
the zero adjustment screw changes through an
eccentric the position of a leaf spring on which
the main spring is attached

detail 2
the oil damper contains silicone oil
