BIZERBA-ASE
egg grading scale

design: August Sauter KG., Ebingen, Württemberg, Germany
supplier: Bizerba-ASE, Balingen, Württemberg, Germany
bruine lijn
Bizerba-ASE egg scale
Bizerba-ASE egg grading scale


This is a particularly rare egg grading scale. According to the logo on the front and on the back, this egg scale is from Bizerba-ASE. This logo, with the ASE-circle just going through the line under the name Bizerba was used by Bizerba in the years 1936-1950. Bizerba Grösste Deutsche Schnellwaagenfabrik, is located in Balingen, in Württemberg in Germany. According to the text on the scale plate this egg grading scale was made by August Sauter, Ebingen in Württemberg in Germany. The egg scale has identification number 50193. This egg grading scale was already verified and calibrated in 1942. The most recent year of verification was 1965. The firm August Sauter has received a patent on this Eiersortierwaage in 1938. The special feature is the use of an air damper. The actual egg scale differs significantly from the design shown in the patent drawings. The pointer moves from left to right on the incremental scale. The scale values range from 40 to 75 grams. Above the gram scale are the egg weight classes: Aussort. (aussortiert = sorted out, too light), D, C, B, A, and S. Left next to the scale house is a lead layer for the minting of the verification marks. Right of the scale house is the 50 grams control weight situated in a recess. This weight is secured in this place by wire springs. Central in the front is a spirit level as an aid for properly positioning the egg scale. The two leveling feet are down left and right on the corner of the base plate. The air damper is adjusted by turning the screw which controls the air flow opening. This screw is only accessible after removing the scale house. The height of the egg scale is 24.3 centimeters, the sizes of the base plate are 20.3 x 14.3 cm. The own weight is 3.3 kilograms.
Below some more pictures of this rare egg grading scale.


back of the egg scale
back of the egg scale

scale
the fixed support is in the middle at the
front just below the round spirit level

check with 50g weight
[move the pointer over the photo]
control with a 50 grams weight

scale
the two leveling supports at the back
[are not original]


detail 1
the slanting scale makes
reading easier
detail 2
the 50 grams control weight is secured
in the recess by wire springs

detail 3
seen from behind

detail 3a

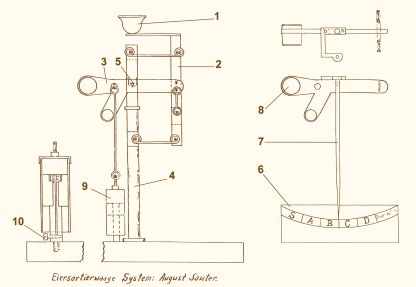

some figures from the German patent of 1938 - the actual implementation looks different

detail 4
large aluminum counterweight

detail 5
the piston rod of the air damper
is clearly visible at the left

detail 6
the cylinder of the air damper is
fixedly mounted on the base plate

detail 7
the Bizerba-ASE logo at the back of the scale house

detail 8
the logo on the front of the scale house

detail 9
the nameplate with the manufacturer data is easy
to read in grams and in egg weight classes
detail 10
the round spirit level in front
[is not the original]

detail 11
the identification number 50193 is at the bottom right

detail 12
the same egg grading scale with just
the abbreviation ASE in the logo dates
from the period 1948-1960
detail 13
verification marks at the base 1942-1959-1961-1963-
1965 and vaguely top right 22DR8 the banderole the
mark of the gauging office Eichamt Ebingen

detail 14
this round spirit level has been placed at the revision


detail 15
the 50 grams control weight has verification marks of
1939-1941-1959-1961-1963-1965 and clearly the
verification banderole 22DR8 of Eichamt Ebingen
detail 16
the unrevised egg scale without scale
house, spirit level and leveling feet
detail 17
the egg grading scale as purchased

detail 18
the unrevised egg scale without house
seen from behind
detail 19
the wire springs for keeping the
control weight in the lowering
detail 20
the weight is clamped by two wire springs

detail 21
the place of the missing spirit level

detail 22
the scale mechanism next to the scale house [front]


detail 23
The scale mechanism next to the scale house [back]


detail 24
the bottom of the steel base plate of the egg scale
still without the fixed support and the leveling feet
