TESTUT
letter scale

maker: TESTUT Société Anonyme, Paris, France
bruine lijn
letter scale, maker Testut
Testut letter scale

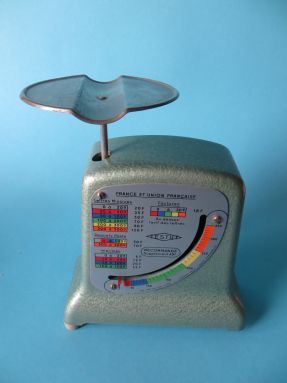

This letter scale is made by TESTUT Société Anonyme from Paris in France. The firm aluminum house holds the well-known parallelogram scale mechanism. At the beginning and end the movement is stopped by a springwire.
The letter scale has a bright colored scale. The front of the letter scale presents the postal rates in French Francs for France and the French Union in columns next to the grams scale. There are rates for letters, parcels, printed matter and invoices. And also how much extra registered sending costs. These postal rates were valid in the short period from July 7, 1957 until January 1, 1959.
This letter scale is shown in the Testut catalog of 1965 on page 299.
The scale of 350 grams has a stripe of measure per 10 grams. The letter scale, in French this is pèse-lettres, rests on two fixed rubber feet and on one adjustable rotatable metal knob. With this knob, situated at the lower right side, the unloaded letter scale can be adjusted to zero in case its standing on a slanting surface.
This Testut is much firmer and less vulnerable than this bakelite Testut.
Below some more pictures of this Testut letter scale.

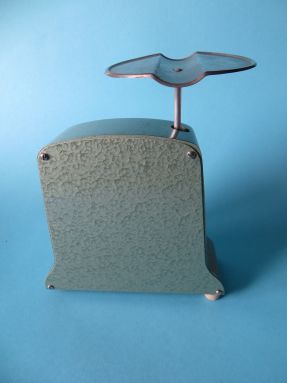

back of the scale
back of the scale

two positions
animation: from 10 to 100 grams
[move pointer over picture]

two other positions
animation: from 150 to 200 grams
[move pointer over picture]

another two positions
animation: from 250 to 350 grams
[move pointer over picture]


detail 1

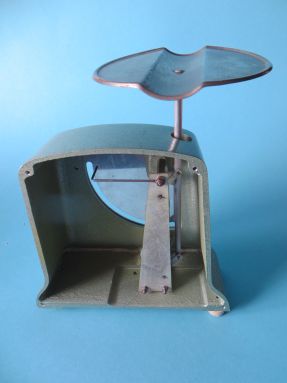

opened letter scale shows the parallelogram mechanism
the springwire stop can be seen top left

detail 2
the bright colored weight areas
with the corresponding postal rates

detail 4
the metal rotatable knob for adjusting
the scale pointer to zero

detail 5
the bottom with two fixed rubber feet
and one adjustable foot

detail 6
the letter scale in the Testut catalog of 1965
