MELIUS
letter scale

maker: firm Konrad Burg Apparatebau, Vienna, Austria
bruine lijn

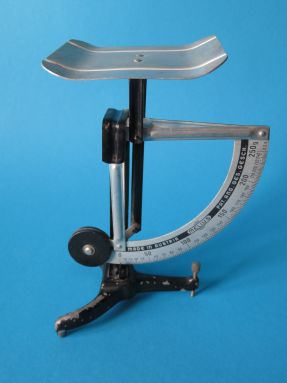

Melius letter scale
Melius letter scale


This letter scale has the brand name Melius. The scale was made by the firm Konrad Burg Apparatebau, from Vienna in Austria. I don't know the production period. I have not found the patent application. The 250 grams scale has a stripe of measure per each two grams. At the values 5 grams, 15 grams and so forth there is a dot on the scale. This Melius has an aluminum base. The movement mechanism is partly performed double. A tightly wound wire spring is inserted between the strip parts as a spacer sleeve over the axles. This is characteristic of the Melius.
There exists also a version with two weighing ranges: 300 grams and 1000 grams. With a turn-over weight one switches between weighing ranges.
Below some more pictures of this 250 grams Austrian letter scale.

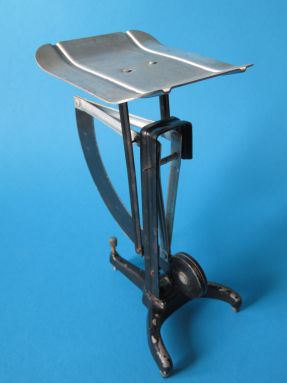

back of the scale
back of the scale

scale

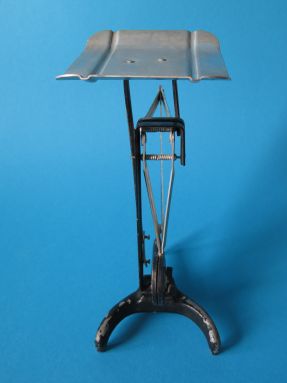

side view


the aluminum base
the aluminum base


scale

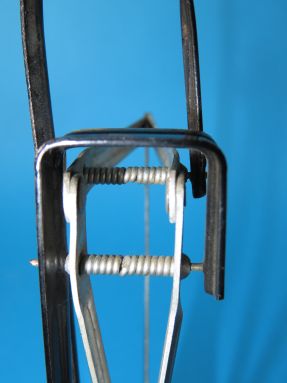

detail of the pivots



detail 1
made in Austria

detail 2
the brand Melius

detail 3
patent applied for - legally protected

detail 4

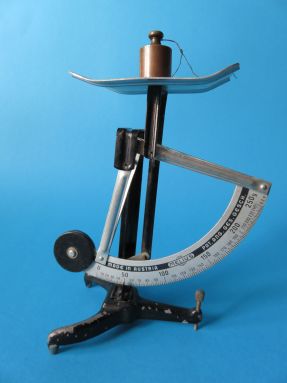

test with a 50 grams weight

detail 5
bottom view

detail 6
test with a 200 grams weight
