letter scale

maker: unknown, presumably made in Germany
bruine lijn

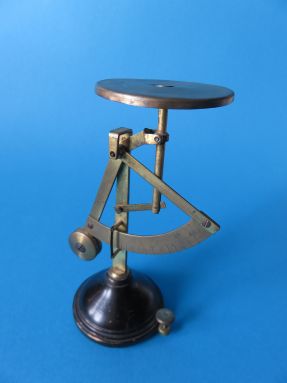

letter scale, maker unknown
letter scale, maker unknown


This is a fairly old letter scale. Characteristic is the counterweight position: below the arc of the scale of measurement. The wooden base has two fixed brass feet and one adjustable foot. With the latter the letter scale can be adjusted to zero. In the 1908 catalog of Kistler similar scales are presented with the weighing ranges 50g, 100g, 150g, 250g and 500g. Those scales have stripes of measure per each gram. On this letter scale with a weighing range of 60 grams there is a stripe of measure per each five grams.
Below are some pictures of this letter scale.

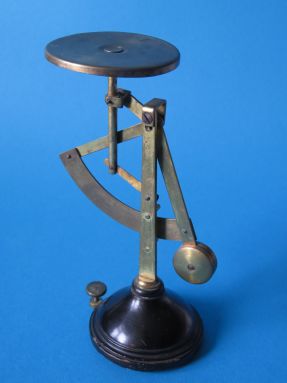

back of the scale
back of the scale

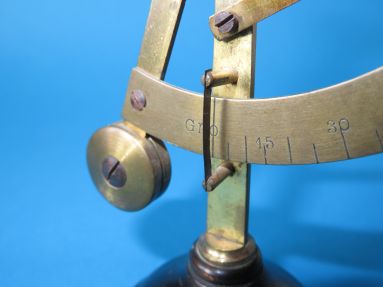

scale detail
the upper pivots


the letter plate
the brass letter plate


scale detail
rear view of the upper pivots




detail 1
stripes of measure per five grams

detail 2
the weighing range is 60 grams

detail 4
the round wooden base with the leveling screw

detail 5
image from the 1908 Kistler catalog

detail 6
two fixed supports and one adjustable
