egg scale
SALTER No. 18E

maker: George Salter & Co. Ltd., West Bromwich, Staffordshire, England
bruine lijn

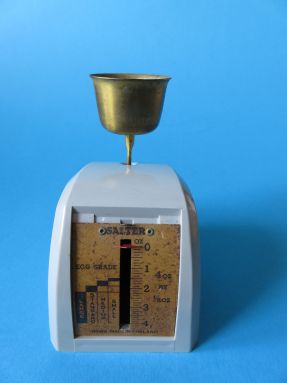

Salter No. 18E egg scale
Salter No. 18E egg scale


This Salter egg scale has the same housing as the previously shown Salter No. 18 letter scale. The traditional spring adjusting screw is missing. The zeroing is done by shifting the scale. The weighing range is 4 ounces. The four English egg weight classes are shown on the left:
- Small (1 ½ - 1 5/8 oz)
- Medium (1 5/8 - 1 7/8 oz)
- Standard (1 7/8 - 2 ¼ oz)
- Large (> 2 ¼ oz)
This classification of egg weight classes is no longer valid.
In documentation this plastic plastic Salter egg scale No. 18E can be found in a Salter catalog from 1965-1968. There are also Salter No. 18E egg scales with a metal housing with small differences in appearance, dating back to the 1939-1957 period. The egg scale has a special mechanism with leaf springs and a wound compression spring. The scale height is 11.5 centimeters.
Below some more pictures of the Salter No. 18E egg scale.

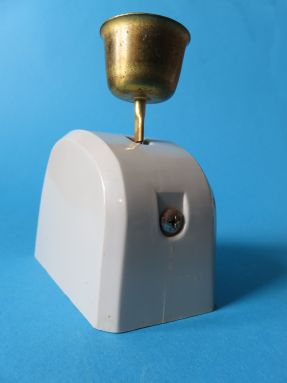

back of the egg scale
back of the egg scale

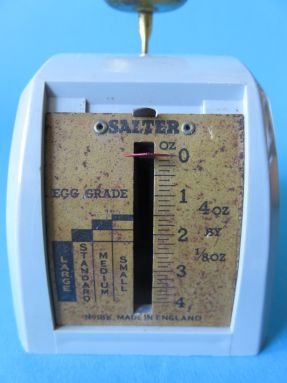

egg scale
the scale shows the egg weight classes left and
at the right the weight in ounces per 1/8 ounce

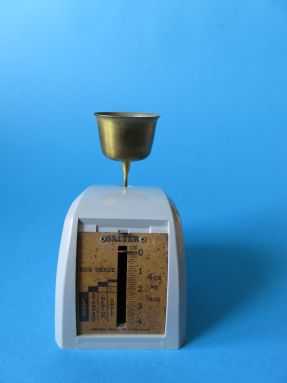

egg scale with and without an egg
animation: the scale without and with an egg
[move pointer over the photo]

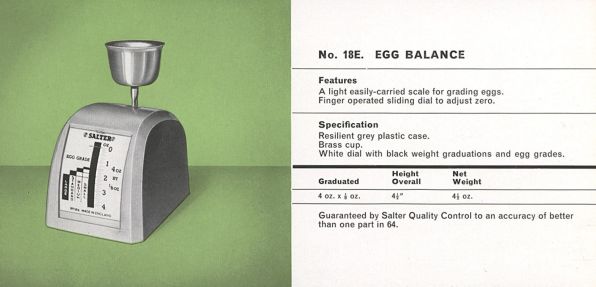

the egg scale in the catalog
the Salter egg scale No. 18E as shown and described in the 1965-1968 catalog


detail 1
the brass egg cup

detail 2
metal bottom plate

detail 3
the egg cup is removable

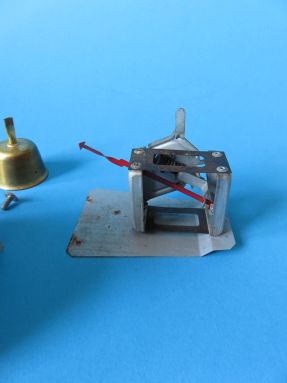

detail 4
the weighing mechanism next to the screw and egg cup

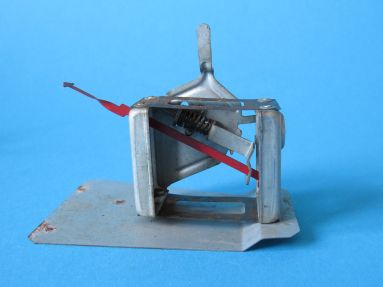

detail 5
the two horizontal leaf springs and the compression spring, still
adjustable before mounting the scale housing, are clearly visible

detail 6
1 screw connects the mechanism and the housing
