Zweigle
yarn scale

maker: Zweigle KG. Fabrik für Textilprüfmaschinen und Geräte, Reutlingen, Germany
bruine lijn

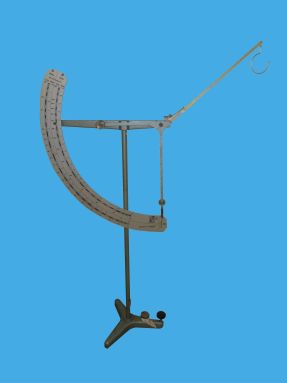

Zweigle yarn scale
Zweigle yarn scale


This yarn scale was made by Zweigle KG. Fabrik für Textilprüfmaschinen und Geräte, from Reutlingen in Germany. The yarn fineness is indicated, inter alia, in grams per 1000 meters of yarn (unit of tex) or meters of yarn per gram (unit of Nm). This scale has a measurement error limit of less than 1%. The measurement was described in the German standard DIN 60906. (Neigungswaagen für die Garnfeinheitsbestimmung (Garnsortierwaagen)). The most recent DIN 60906 dates from June 1, 1996. A certain length of yarn is hung on the hook and the value is read. An extra push-on weight enables measurements with other yarn lengths. Here it is 50 meters (A) or 10 meters (B) without the extra weight. With the extra push-on weight it will be 250 meters (A) or 50 meters (B). The scale shows the relationship between gram, tex and thread length. This Zweigle has at the foot of the stand a lever to slow down the scale movement and to be able to make a quicker reading. The scale is up to 89 cm high at the suspension hook.

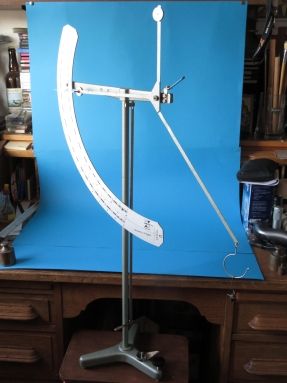

Below some more pictures of this large Zweigle yarn scale.









detail weger

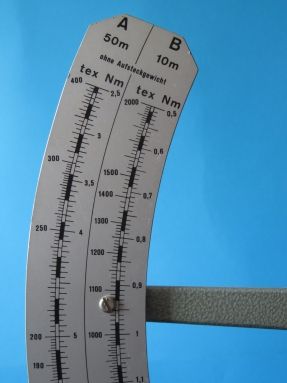

detail of the measurements scale

wegerdeel

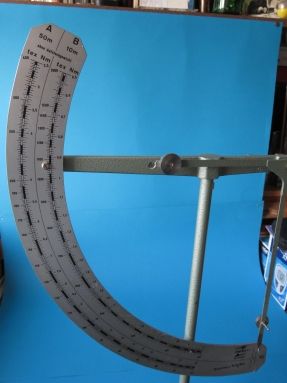

the large scale is easy to read



detail 1
leaf spring buffer

detail 2

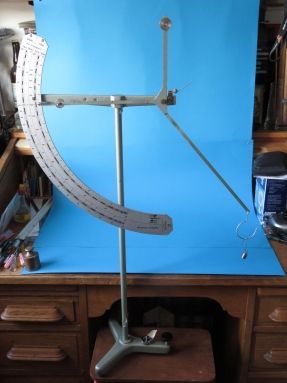

the yarn balance loaded with a weight of 10 grams

detail 3
useable brake pad

detail 4
here without the push-on weight

detail 5
Zeigle brand name and logo and technical information

detail 6
here with the push-on weight

detail 7
factory ticket


detail 8
the yarn balance loaded with a weight of 10 grams

detail 9
brake lever, storage space plug-in weight,
and zero leveling screw knob
