HARRIS
grams lever scale

probable maker: Philip Harris, England
bruine lijn

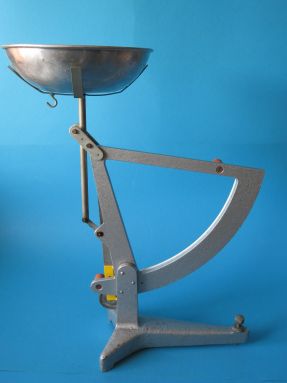

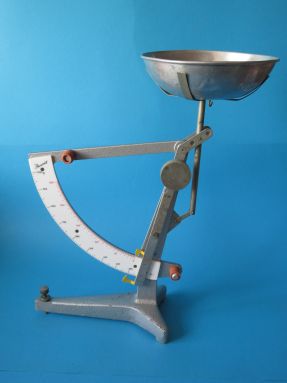

Harris pendulum scale
the Harris pendulum scale


This lever scale has the name Harris on the scale. The scale comes from England. More information is missing. Thanks to the foldable counterweight, this pendulum scale has two weighing ranges: 250 grams divided per gram, and 1000 grams divided per ten grams. The scale is easy to read. The scale has a rubber stopper at the beginning and the end of the range. The scale basis is made of cast iron. On the support cross for the loose weighing pan there is a suspension hook for specific weight determinations. The maximum height measured on the edge of the bowl is 38 centimeters.
Below some more pictures of this Harris pendulum scale.




back of the scale
back of the scale

scale
with folded counterweight up
and 100 grams on the hook

scale detail
bright yellow pointers and 100 grams
indicated on the upper scale

scale
with counterweight folded down
and 100 grams on the hook


detail 1
the brand name Harris on the scale

detail 2
the counterweight in position 1000

detail 3
the counterweight in position 250

detail 4
the support cross for the weighing pan

detail 5
the cast iron base

detail 6
the aluminum weighing pan

detail 7
the base with the leveling screw
