GRIFFIN & GEORGE
pendulum scale

maker: Griffin & George Limited, Wembley, Middlesex, England
bruine lijn
lever scale, maker Griffin & George
Griffin & George pendulum scale


This sturdy pendulum scale is made by Griffin & George Limited, from Wembley, Middlesex, England. Thanks to the foldable counterweight, there are two weighing ranges: one to 250 grams per gram divided and one to 1000 grams per five grams divided. The scale has a recess as a handle and a rubber stop just beyond the zero position. There is a hanging hook on the support of the weighing pan. That hook can be used in, for example, specific weight determinations. The maximum height measured on the edge of the plastic bowl is 39.5 centimeters. This scale is in the catalog of Griffin & George of 1972.
Below some more pictures of this pendulum scale.

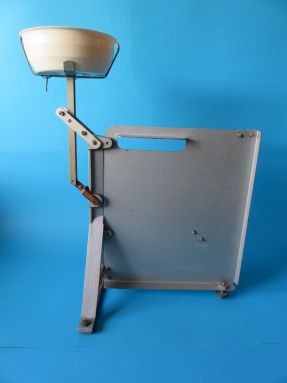

back of the scale
back of the scale

scale
with the counterweight folded down
and the weighing pan removed

scale from aside
the sturdy frame

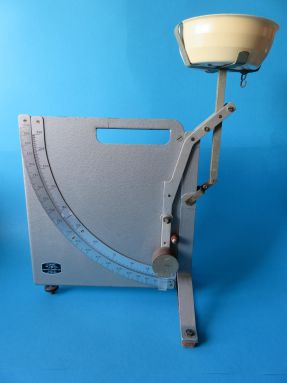

scale
with counterweight folded up
and the weighing pan placed


detail 1
a bit strange: two separate scales the
one per gram, the other per 10 grams
detail 2
read along a thin red line

detail 3
100 grams on the hook

detail 4
the sticker of Griffin & George Ltd.

detail 5
a rubber stopper

detail 6
the zero leveling screw
