KELLER
letter scale

maker: Max Keller A.G., Pfäffikon, Switzerland
bruine lijn
letter scale, maker Keller

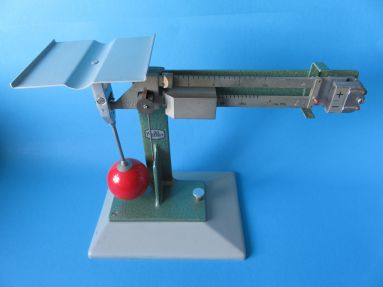

the Keller letter scale from Switzerland


This special letter scale was made by Max Keller A.G. from Pfäffikon in Switzerland. The unequal arms balance has a permanent hanging red ball weight on the left. On the other side there are two movable weights, one for steps per gram and a larger weight for steps per 20 grams. The maximum weighing range is 500 grams. At the end of the long balance arm a magnetic damping is placed to stop the arm more quickly. In the meantime, the ball weight continues to oscillate cheerfully. The scale is stamped with Swiss calibration marks ZH4 (Zürich/Winterthur) and a mark 76, presumably the inspection year 1976. The main pivot point is a knife support, the implementation is of Swiss quality. The weighing platform also rests on a knife support. The base has a screw to set the scale to zero. The letter tray is 24 cm high, the overall length is 31.5 cm. The foot dimensions b x d = 20 x 15 cm. I also saw this letter scale with a black ball weight. Below some more images of the Keller letter scale.

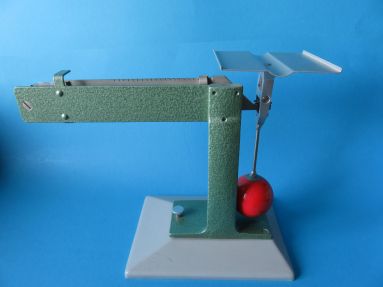

back of the scale
back of the Keller letter scale

scale
top view


detail
the red ball weight stabilizes
the weighing platform

scale
the long balance arm with the sliding weights



detail 1
logo and maximum load indication

detail 2
the logo of Max Keller A.G.

detail 3
calibration mark and year of inspection

detail 4
the calibration marks


detail 5
the movement of the balance arm
is limited by the green stops

detail 6
two magnets and the thin aluminum plate
make the magnetic damping

detail 7
side view

detail 8

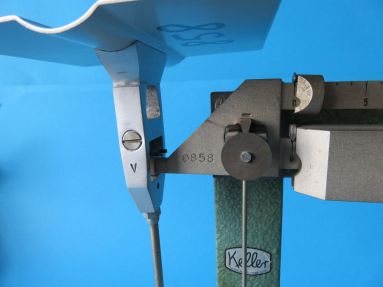

V and 0858 numbered parts and the main pivot

detail 9
side view

detail 1
precision mechanical parts

detail 1
the red ball weight

detail 2
charged with 200 grams

detail 3
the sliding weights on top at 0 and below at 200 grams

detail 1
the aluminum weighing platform


detail 2
the bottom is weighted with
a large metal plate

detail 3
the zero setting screw with locking ring
