equal-arm balance

maker: Dey & Sons, country of origin: India? or maybe Pakistan?
bruine lijn
balance, maker Dey & Sons
equal-arm balance by Dey & Sons


This equal-arm balance is made by Dey & Sons, I suspect from India or maybe Pakistan. On the balance beam is a D&S logo and the company name. The English indication for the weighing range is also on it: Class B to weigh 200g. On the opposite side, probably the same is written in a language I don't know. In the middle of the balance beam there is a round lead mark in which the year 1984 is probably stamped as 84. Whether this is a calibration stamp, I do not know. The balance is mounted on a cabinet with a drawer containing eight brass weights with the TOLA unit of measurement. BULION is also stamped on the weights of 5, 3 and 2 Tola. These three weights have a countersunk hole on the bottom filled with some lead. The smaller weights do not have a recessed hole on the bottom. The remaining weights are 1, ½, ¼, 1/8 and 1/16 Tola.
The value of 1 Tola in India is 11.66 grams. In Pakistan, 1 Tola is 12.5 grams. Weighing my 1 Tola weight on a digital scale results in 11.67 grams, this balance is therefore probably from India.
Below some more images of this equal-arm balance.






back of balance
back of balance

scale detail
class B to weigh 200g

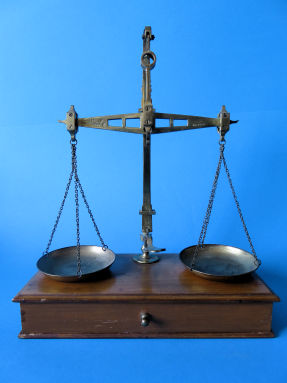

the equal-arm balance

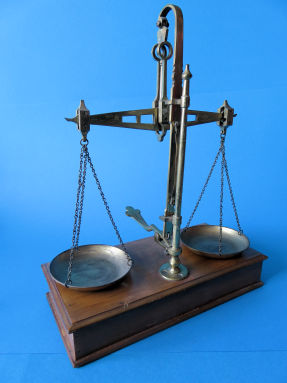

detail of the equal-arm balance


scale detail
the logo and the text Dey & Sons



detail 1
up to 200 grams in a language I don't know

detail 2
suspension detail

detail 3
the logo and the text Dey & Sons

detail 4
well-executed parts

detail 5
the suspension

detail 6
the suspended weighing beam is in equilibrium

detail 7
up to 200 grams in a language I don't know

detail 8
84 in the round lead calibration mark spot

detail 9
class B to weigh 200g

detail 10
the eight weights in the drawer

detail 11
the pointer indicates equilibrium

detail 12
the eight Tola weights in the drawer

detail 13
lever in the rest position

detail 14
operating the lifting lever

detail 15
lever in the weighing action position
