household scale

maker and country of origin unknown
bruine lijn
household scale, maker unknown
household scale

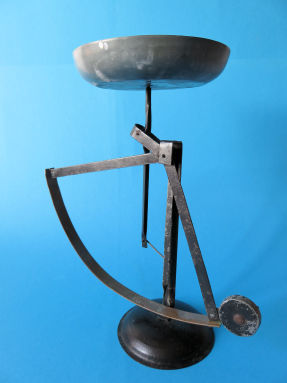

This strange primitive-looking scale has a dish to weigh stuff in. The zinc? dish can be removed. The stem of the dish is very easily made of a good head nail that is fixed with solder. The brass scale is different from all the quadrant scales shown earlier. This scale is bent horizontally and is therefore easy to read. The pointer of the scale rotates on the same axis as the pendulum arm with the measuring scale. As a result, the balance automatically returns to zero even in a tilted position. The weighing range is 500 grams. There is a stripe per ten grams. Up to 250 grams there is also a dot per intermediate value, at 5, 15, 25, et cetera. The gram as the unit of measurement is not indicated on the scale. The pointer, the vertical rod of the mechanism, the upright, and the measuring scale holding arms are simply folded parts. This scale seems to be a product from just after the Second World War.
The scale is 27.5 cm high, the dish diameter is 13.5 cm. The foot is 10.3 cm round.
Below some more images of this special household scale.

back of the scale
back of the scale

scale
with 300 grams


scale in tilted position
animation: self-adjusting when skewed
[move pointer over the photo]

scale
with 500 grams



detail 1
special orientation measuring scale

detail 2
the hanging pointer

detail 3
special orientation measuring scale

detail 4
up to 500 grams

detail 5
special orientation measuring scale


detail 6
with stripes and dots subdivided per 5 grams

detail 7
the folded rod also holds the axle

detail 8
the headed nail is soldered to the dish


detail9
seen from below

detail 10
scale fastening

detail 11
counterweight attachment

detail 12
upright-nut mounting
