first German letter scale
with a standing letter plate

presumably made by:
Gottlieb Kern & Sohn, Onstmettingen, Germany
bruine lijn
letter scale, by Kern & Sohn

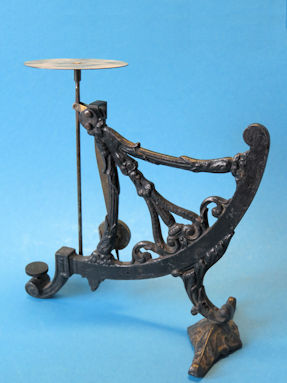

first German letter scale with a standing letter plate


This is the first German letter scale with a standing letter plate or top-pan. The letter scale is attributed to Gottlieb Kern & Sohn. This company started in 1844 in Onstmettingen in Württemberg and later moved to Ebingen also in Württemberg. The letter scale has a very low auxiliary lever pivot. The frame is made of cast iron. The chart was silver-plated brass, the silver layer has almost completely worn away. The first copies of this letter scale model were sold on June 28, 1851. This scale model can be found in the catalogs of various scale suppliers. At Gottl. Kern & Sohn itself until the end of the 1930s. A few different replica versions were made by Kern in 1994 to mark their 150th anniversary. Two models of letter scales with a flat plateau, weighing up to 100 grams and 250 grams respectively, see this replica. Also two scales with a saucer-shaped scale for weighing for example small items, herbs or tobacco, also weighing up to 100 grams and up to 250 grams respectively.
The height of the letter scale shown here is 18 cm. The brass letter tray is not original, it was made by me to complete the letter scale. The diameter of this letter tray is 7 cm.
Below some more pictures of this oldest German letter scale.

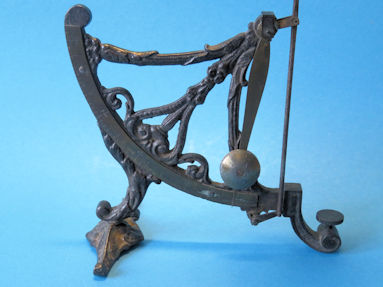

back of the letter scale
back of the letter scale

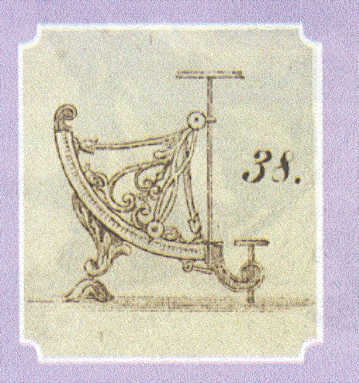

scale in catalog
drawing taken from the
price list of 1874

scale in catalog
image from an early catalog by Gottl. Kern & Sohn
the first copies of the scale were sold on June 28, 1851

scale detail

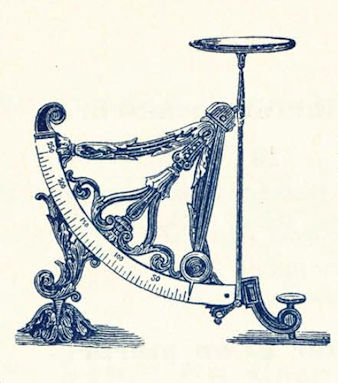

the letter scale as shown in the 1900 catalog
of Gottl. Kern & Sohn, now located in Ebingen

scale in catalog
drawing taken from the
price list of 1874

scale detail

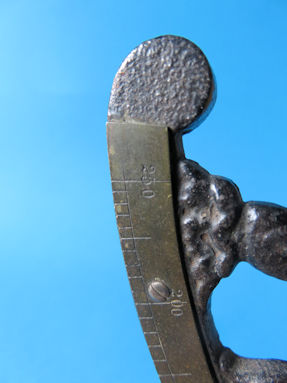

weighs up to 250 grams, with a stripe of measure
per 10 grams, the rounded frame-end differs
from other specimen that I saw

scale detail
the graceful cast iron frame


scale detail

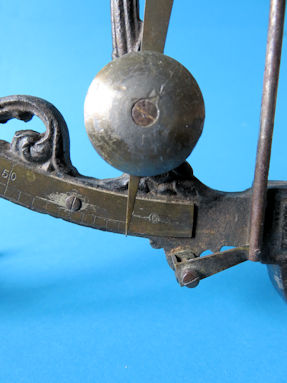

the pointer protrudes from under the counterweight



detail 1
characteristic is this low positioned lever pivot

detail 2

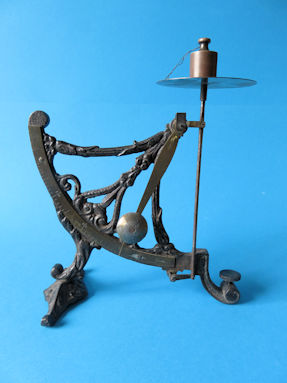

the letter scale loaded with 50 grams

detail 3

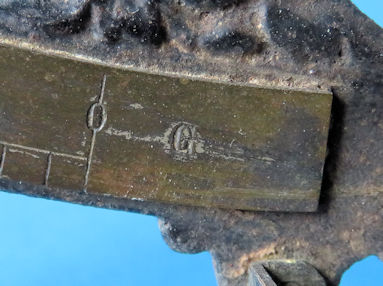

the unit of measure is indicated by a capital G.

detail 4
the brass scale was originally silver-plated,
this has now largely worn away

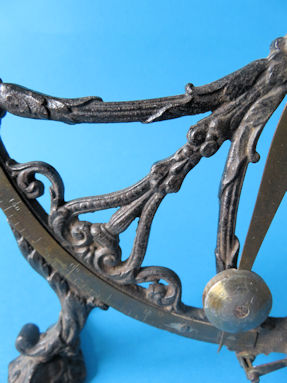

detail 5
the graceful cast iron scale frame

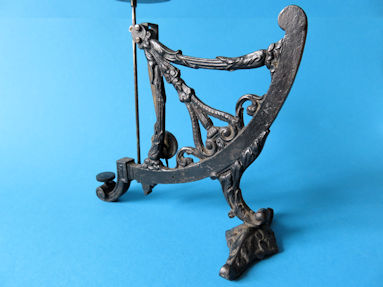

detail 6
the backside


detail 7
the decorated fixed scale foot

detail 8
the scale foot is attached to the frame
with a screw

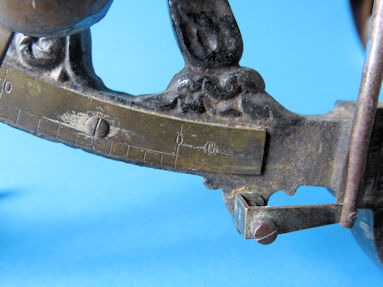

detail 9
the solidly executed zero adjustment
