PARNELL
letter scale

maker: Parnell, London, England
bruine lijn
letter scale, maker Parnell

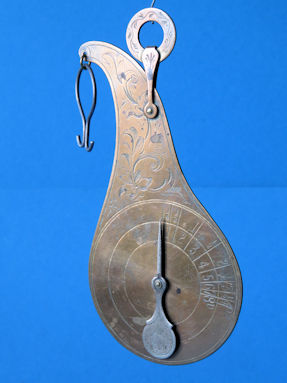

Parnell letter scale


This letter scale is also referred to as "gooseneck", the similarity with the neck of a goose is obvious. The original is a letter scale design made by Nathaniel Richard Hall, on which a British patent No. 791 was granted already in 1863 (source: Equilibrium, winter 1979/80, Patently interesting, by Michael A. Crawforth, pp. 198-199). The letter scale shown here was sold by Parnell from London. I don't know whether Parnell was the maker. The name and location are engraved on the back of the scale. The weighing range is 4 ounces. Per ½ ounce a stripe of measure is given and in addition the value ¼ ounce also has a stripe. The English domestic letter post rates are listed under the weights on the scale. It is the letter post rate of the period from April 1, 1865 to October 5, 1871. Parts of the letter scale are engraved with floral decorations. In December 1989, the German brewery Jacob Stauder released a silver-plated replica of a heavily decorated Parnell letter scale bearing the postal rates of the earlier period from January 10, 1840 to April 1, 1865, see this Parnell - Hall's patent letter scale.
The Parnell letter scale weighing in ounces shown here is larger than the previously shown Parnell letter scale weighing in Loth. The length of the body part is 124 millimeters, the diameter is 63 millimeters, the plate thickness is 0.9 millimeters.
Below some more pictures of this ounces letter scale sold by Parnell in London.

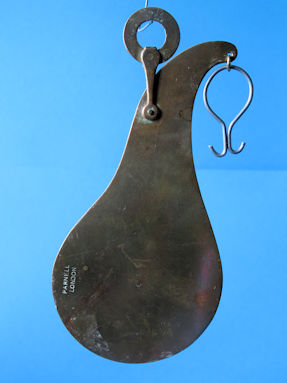

back of the letter scale
back of the letter scale

the name on the scale
the name and place on the scale: PARNELL LONDON

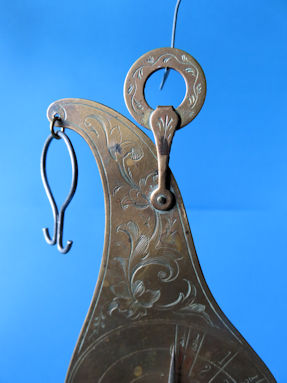

detail 1
the floral decoration

detail 2
letter post rates from April 1, 1865 - Oct. 5, 1871

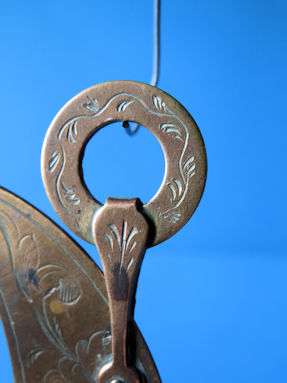

detail 3
the retaining ring is also decorated

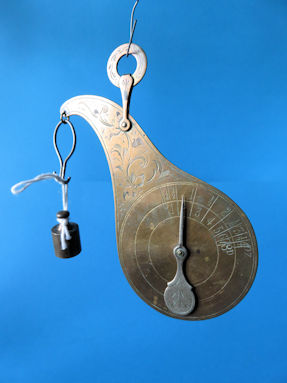

detail 6
the hand-held scale loaded with 40 grams

detail 5
the scale with 20 grams

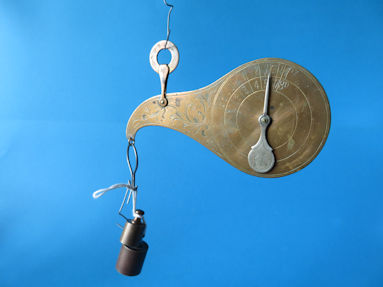

detail 4
the suspended scale loaded with 80 grams
