Narcisse Briais
letter balance

maker: Narcisse Briais, Paris, France
bruine lijn
letter balance, Narcisse Briais
letter balance Narcisse Briais


This letter scale made by Narcisse Eugène Briais has a sliding counterweight. The weighing range is 105 grams. There is a stripe of measure per 15 grams. There is a line but no number at the value zero. The unit of measure is marked with the capital letter G on the scale. The brass letter balance stands on a black lacquered wooden base. The base rests on four flat round discs. In the wood of old French letter scales you can often see some woodworm holes. The worms themselves are no longer present. In a catalog of the English firm Perry & Co. the same model letter balance is already available from July 1871. The wooden base is 22.5 by 11 centimeters. The height of the letter tray is 10 centimeters. The previously shown 100 gram balance of Narcisse Briais with the same model is slightly older, considering to the weight limits stated there 7½ and 22½ that were used until 1875 at the most, see here.
Below some more pictures of this Narcisse Briais letter balance.



back of the balance
back of the balance

scale
On the letter plate is the NB logo of Narcisse Briais
and the French word DÉPOSÉ = protected design

scale

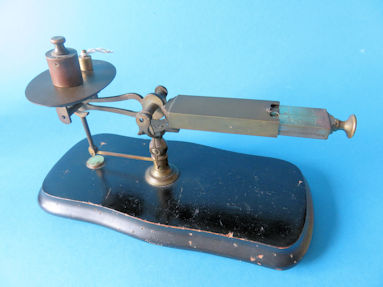

60 grams on the letter plate and the sliding weight at 60 grams
results in balance

catalog drawing
in the catalog of Perry & Co. from July 1871 a similar model is depicted


scale

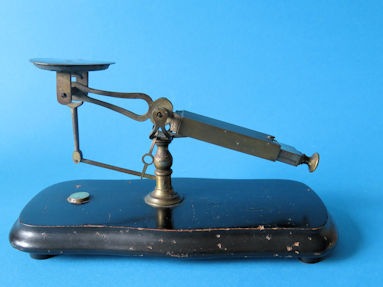

front view


two positions of the sliding poise
animation: two positions of the sliding counterweight
to demonstrate the telescoping sliding
[move the pointer over the photo]
scale

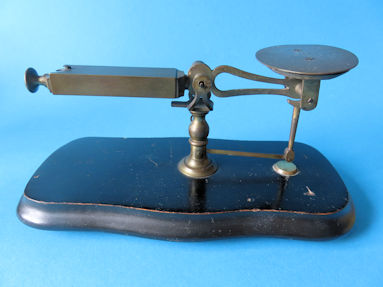

rear view



detail 1
lead makes the letter plate side heavier

detail 2
letter plate side view

detail 3
the pointer

detail 4

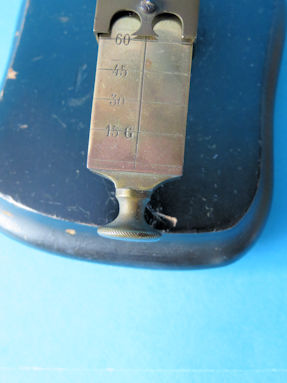

extended up to 60 grams

detail 5

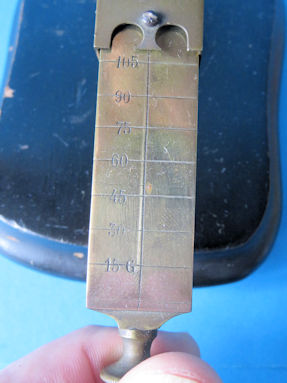

stripes per 15 grams

detail 6

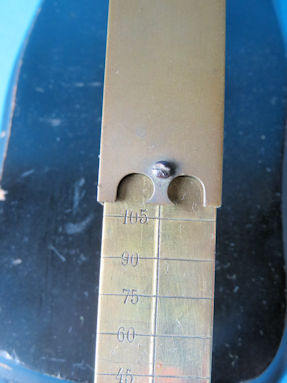

maximum extended position

detail 7
detail main pivot

detail 8
four supports on the bottom

detail 9
letter plate with NB logo DÉPOSÉ
