G. RIDDLE
letter scale

design: Gabriel Riddle, London, England
bruine lijn
letter scale, designed by G. Riddle
letter scale, designed by Gabriel Riddle


Gabriel Riddle designed this letter scale and received a design registration on the design. It is Registered Design No.113, which was granted on November 28, 1839. The term of this protection was three years. The letter scale is described in Mechanics' Magazine, No. 853 of Saturday, December 14, 1839 on page 178 and a drawing of the letter scale is featured on the cover of the magazine. In Germany attention was paid to the letter scale of G. Riddle as well, in Dingler's Polytechnischen Journal 1840, Band 75, Nr. LXXIII, (pages 430-431) en Figure 15 at Tab.VII. The letter scale in the design goes up to four ounces, which is more than the two ounces version shown here. Strangely enough, the text of Mechanics' Magazine states that the scale goes up to three ounces. According to the article, in 1839 1 in 1,000 letters was heavier than ½ ounce, and 1 in 50,000 was over 1 ounce. The weighing range would therefore be more than sufficient. The scale of this letter scale is subdivided by ¼ ounce. This value was used for letters abroad.
In the design drawing, the lower part of the round upright has been made flat. With the later actually made scales, this is no longer necessary due to a design adjustment, and the upright is kept nicely round. On the back of the counterweight is a protrusion that serves as a stop of movement in the unloaded situation. Without this stop, the letter scale swings out for a long time, partly due to the beautiful knife edge bearing and because the letter holder acts as a second pendulum. Copies of four ounces are slightly better known, they are 190 millimeters high and have a base diameter of 73 millimeters. There are different versions. Scales with mostly smooth surfaces like the one shown here, and gilded ones with floral decorations engraved in them. Also shiny brass versions with the English letter post rates above the weights on a somewhat higher made scale of measurement.


back of the letter scale
back of the letter scale


I also saw a specimen with an easier to read ivory scale. Most examples have a crown on the counterweight with the name G. RIDDLE above it and LONDON below. The gilded specimen has only flower decorations, no crown, name, or place. The Registered Design number and the corresponding date are also not on it. My copy only has a crown on the counterweight and the weight arm has the Registered Design No.113 with the corresponding date November 28, 1839. This two ounces Riddle is 129 millimeters high, the base diameter is 48.6 millimeters. The scale parts are made of brass and blackened. The knife edge bearing is made of magnetic steel. The different parts are connected with threaded connections, see the middle photo at the bottom of this page.
Below some more pictures of this letter scale.

scale

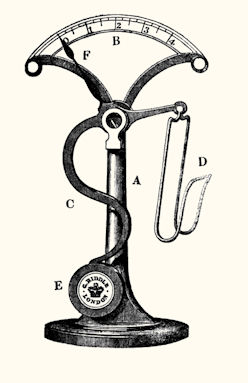

drawing on the cover page of Mechanics' Magazine
No.853 van Saturday, December 14, 1839


scale

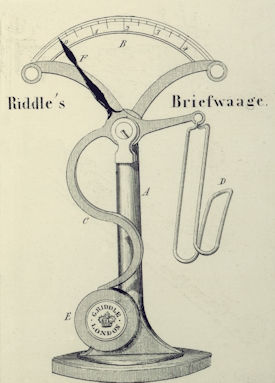

drawing in Dingler's Polytechnischen Journal,
1840, Band 75, Nr. LXXIII, (Seite 430-431),
Abbildung 15 auf Tab.VII

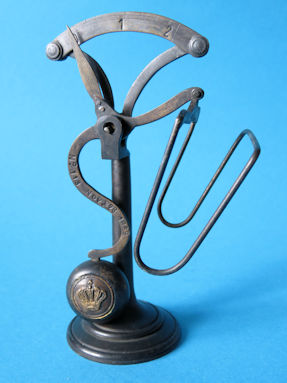

Riddle letter scale
side view

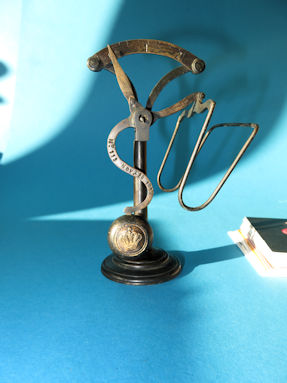

the scale unloaded and loaded
animation: Gabriel Riddle's letter scale
unloaded and loaded up to two ounces
[move the pointer over the photo]
Riddle letter scale

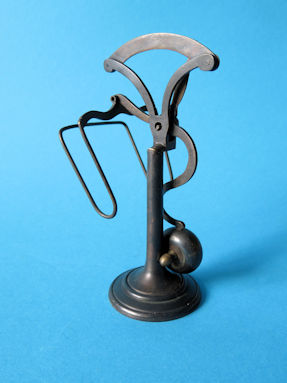

side view


detail 1

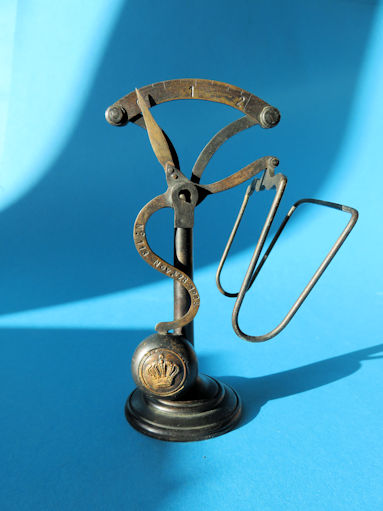

the crown is on the counterweight

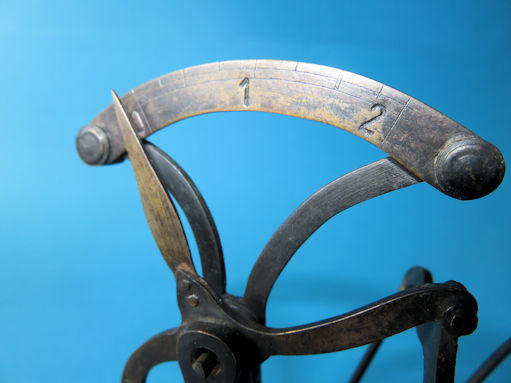

detail 2
the scale up to 2 ounces is subdivided per ¼ oz and per ½ oz

detail 3
the protrusion on the counterweight stops movement

detail 4

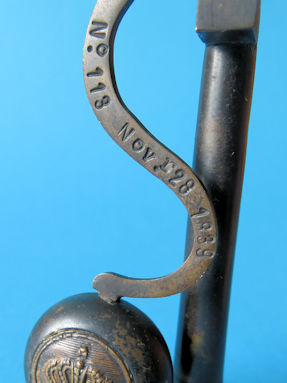

Registered Design No. 113 of November 28, 1839

detail 5
this letter scale is made of blackened brass

detail 6
the round brass base

detail 7
rear view

detail 8

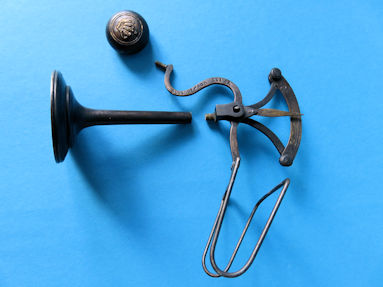

the parts are partly unscrewed, the scale is still screwed on

detail 9
bottom of the brass base
