letter steelyard

maker: unknown, England
bruine lijn

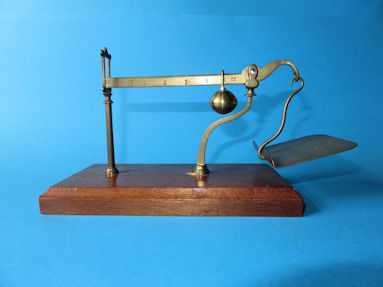

steelyard, maker unknown
letter balance with unequal arms


This letter scale is a balance with unequal arms with a movable counterweight. This scale type is called a steelyard. The range is four ounces in half-ounce increments. The value ¼ ounce is also the first measurement value and recess on the long arm of the balance. The value zero is missing. The unit of measure ounce is indicated with the abbreviation oz. The readings are only on one side of the weighing arm. There is no brand or logo on this balance. The parts are made of brass, except for the knife edge shaft, which is made of non-magnetic steel. The mahogany base measures 185 by 95 millimeters. The highest point of the scale is the top of the movement-limiting upright at 125 millimeters. The scale is a somewhat simple version of the scale model that was made in more luxurious versions, especially with the Avery brand.
Below some more pictures of this letter balance or steelyard.

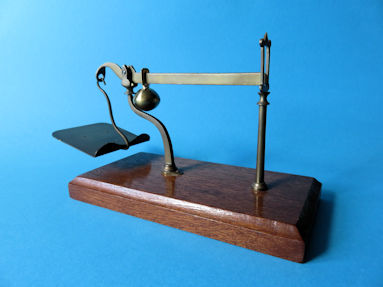

back of the balance
the back of the balance has no weighing values on the beam

weger

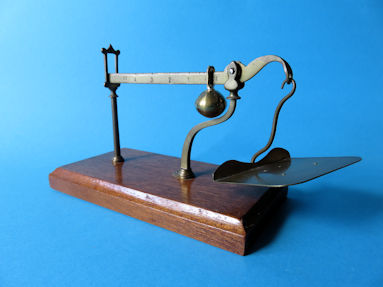

view of the letter scale


de weger

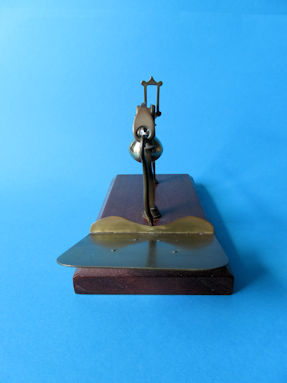

the movement of the long scale arm is limited by the window


weger

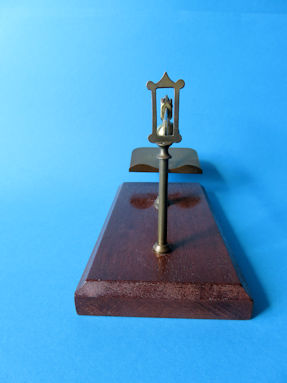

side view of the window



scale detail 1
the suspension of the letter scale

two scale positions

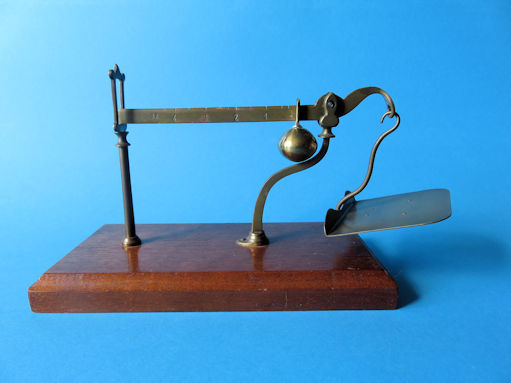

animation: unloaded and equilibrium when loaded with a weight of two ounces
[move the pointer over the photo]

scale detail 3
the movable counterweight

detail 4
the scale goes up to four ounces

detail 5
the scale is subdivided per ½ ounce

detail 6
the value ¼ oz is additionally indicated

detail 7
without the letter plate

detail 8
bottom of the letter plate

detail 9
the letter plate

detail 10
top view of the complete letter balance

detail 11
knife-edge bearing

detail 12
the bottom of the wooden base
