dosing scale, maker Walter und Schmitt

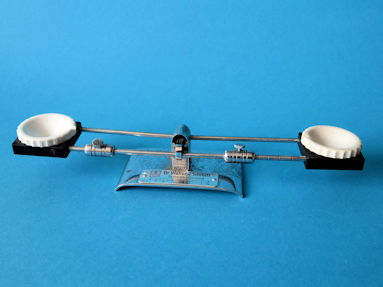

amalgam dosing scale of Dr. Walter und Schmitt


This scale comes from Germany and was made by Dr. Walter und Schmitt from Schwäbisch Gmünd. The design was protected by the German patent DE658130 of September 29, 1935. The scale was used by dentists to prepare amalgam. In the past, cavities in teeth and molars were filled with amalgam. Nowadays there are better fillers, usually a composite is used now. Mercury pellets were placed in the dish on one side of the scale and a metal powder alloy on the other side. The scale has markings with which certain dosing ratios are easy to set. In the journal Mass und Gewicht, Nr. 109 2014, on page 2709 plus the pages 2711-2718 is an article by Egon Rempen with the title Die W&S-Amalgam-Waage für Zahnärzte und einige europäische Vorläufer dieser Waage seit etwa 1910. It includes the manual for this scale, all in German.
Below some more pictures of this amalgam dosing scale.



back of the scale
back of the dosing scale

detail 1
the scale has two sliding weights

detail 2
the brand name and place on the scale base
and a table with some mixing ratios
detail 3
the right dish is for the metal powder alloy

detail 4
the left dish is for mercury pellets

detail 5
the dish removed from the holder

detail 6
the holder has a groove in the cone-shaped pit

detail 7
the scale with the two separate dishes

detail 7

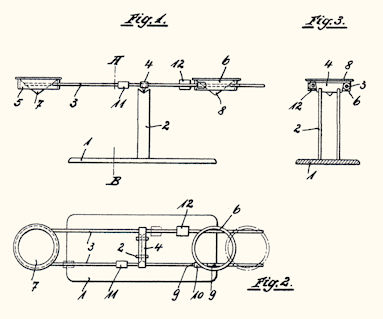

the figures from the German patent DE658130 of September 29, 1935

detail 8
the bottom of the amalgam dosing scale
