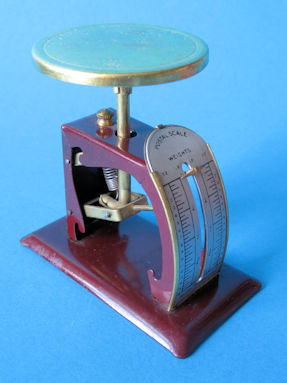

Pilot letter scale, made in England
the Pilot letter scale, made in England


This letter scale with the model name Pilot comes from England. The Pilot has a cardboard packaging that opens after removing the lid. The flip-open inside shows the English letter rate that applied from May 1, 1952 to January 1, 1956. The label on the package reads No. 371 Maroon that is chestnut brown or a dark red. I have also seen a Green Pilot.
The weighing range is 1 Lbs and this is per ½ ounce and per ¼ Lb subdivided. The chart is the same to the left and right of the double pointer. The base measures 92 by 52 millimeters. The scale height is 85 millimeters. The letter tray is 58.5 millimeters round. The spring force can be adjusted with the rotary knob on top of the scale housing. This way the scale can be adjusted, under which viewing angle this is done remains difficult.
Below some more pictures of the Pilot letter scale.

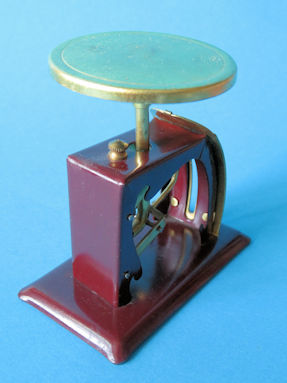

back of the letter scale
back of the letter scale

scale detail
loaded with 200 grams


the scale unloaded and loaded
animation: loaded to the max >1 Lbs
[move the pointer over the photo]

scale detail
on the left the adjustment button to set the scale to zero



detail 1
the letter scale in the closed packaging

detail 2
the letter scale in the opened packaging

detail 3
the letter scale next to the packaging

detail 4
scale in ounces and Lbs

detail 5

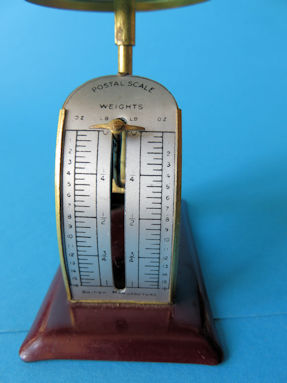

clear chart per ½ oz up to 1 Lbs

detail 6
British Manufacture

detail 7

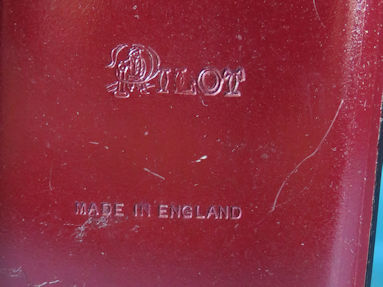

the model name on the bottom and Made in England

detail 8

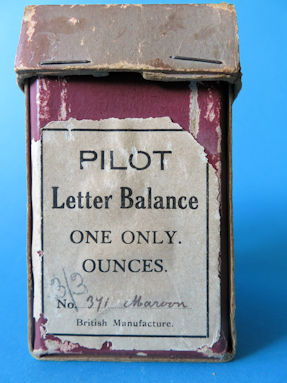

the label on the packaging box

detail 9
the English letter rate on the flip-open inside of the box was valid
from May 1, 1952 to January 1, 1956
