MAX KOHL
yarn scale No. 7063
design EMIL STAUB

maker: Feinmechanik Max Kohl Aktiengesellschaft, Chemnitz, Germany
bruine lijn

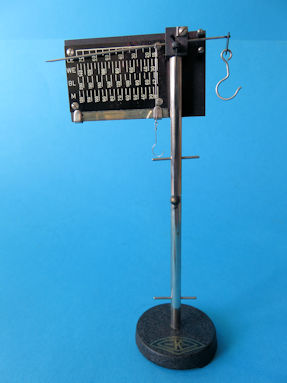

yarn scale, maker Max Kohl
yarn scale according to Staub, Max Kohl no. 7063


This yarn scale was made by Feinmechanik Max Kohl Aktiengesellschaft, from Chemnitz in Germany. (Feinmechanik is German, translated: precision mechanics). In the catalogs of Max Kohl from 1938 and 1939 the yarn scale is depicted and is called a yarn scale according to Staub. This Emil Staub from Leipzig obtained an English patent GB6703 on the design on 19 May 1886. In the U.S.A. a patent was also obtained on April 10, 1888 with the number US380,826. The yarn scale shown here is a small travel version that was delivered in a cardboard storage box. This yarn scale is composed of three parts: the scale part, an upright extension, and the cast iron base. At the top, next to the upright, hangs a wire with a metal ball on the free end. This plumb line is an aid when setting up the yarn scale horizontally. In the supplied case, there are three templates and a control weight marked 80M. The 2.5 5 and 10 square centimeters templates serve as a measurement for cutting test pieces from fabrics. The also supplied 10 cm brass ruler is used to measure the desired yarn length. The vertical metal wire forms the sliding weight on the weighing arm of the yarn scale. This should indicate 80 cm on the M scale when the scale arm is horizontal and the control weight 80M hangs from the large hook of the yarn scale. The yarn scale comes with a short typewritten manual with the date February 19, 1943. There is also a printed three-page detailed manual. The case also contains three split pins of different sizes, I don't know how to use them. I don't know whether they belong as standard. The cardboard storage box also contains two foldable wire counters, which are small, handy, magnifying magnifiers. Probably Max Kohl did not include these by default, and they were added later by the user. The scale is 168 millimeters high. The diameter of the scale foot is 48.5 mm. The dimensions of the packaging box: 116 x 116 x 63 mm.
Below some more pictures of this yarn scale made by Max Kohl.

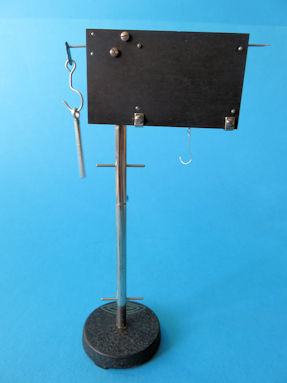

back of the yarn scale
back of the yarn scale

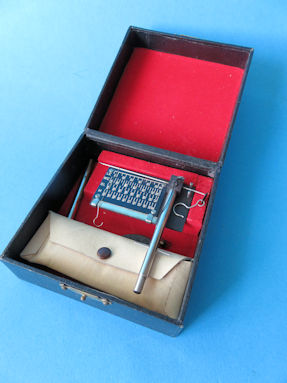

the packing box
the packing box


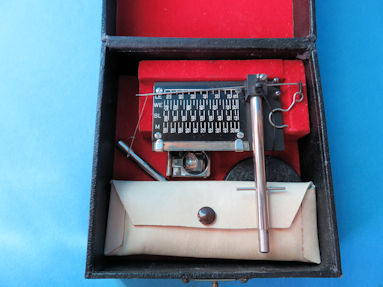

the yarn scale in the package
the yarn scale in the package


the yarn scale parts
the scale parts and the case with small accessories



detail 7

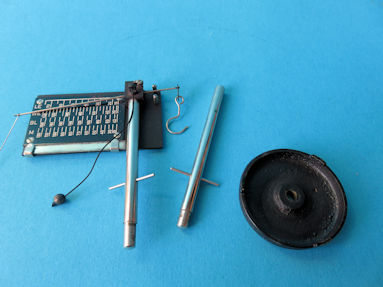

the three parts: scale part, upright extension, and the cast iron base

detail 8
the yarn scale with the control weight 80M

detail 9
the scale arm is horizontal and the vertical wire is at 80 on the M scale

detail 10

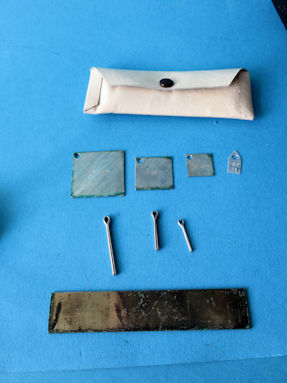

3 templates, control weight, 3 split pins and ruler

detail 11
the case and the accessories it contains

detail 12

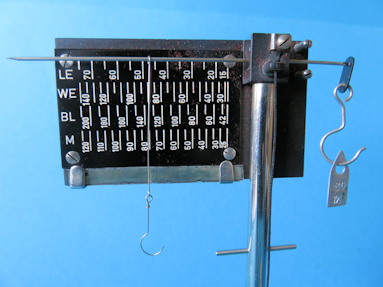

the scale has four measuring scales LE, WE, BL and M
and also two clips to attach other scale plates

detail 13
the 10 cm2 template

detail 14
the 5 cm2 template

detail 15
the 2.5 cm2 template

detail 16
the 80 M control weight




detail 17
the factory sticker on the scale foot
Feinmechanik
Max Kohl
Aktienges. Chemnitz

detail 18
the three different split pins




detail 4

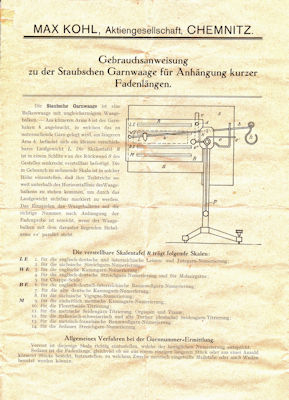

typed operating instructions for the device No. 7063
the simplified yarn scale according to Staub


detail 5

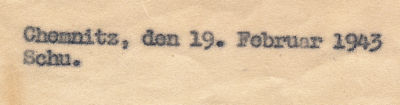

February 19, 1943 is the date on the typed manual


detail 6

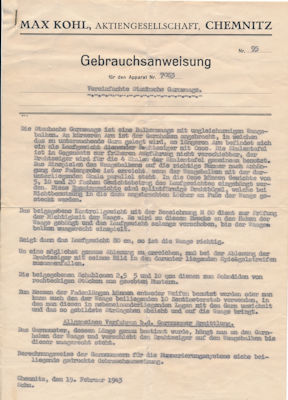

front page of the printed manual
the yarn scale shown is a slightly different model

detail 1
the yarn scale with some protective paper and the
folded instructions in the packing box

detail 2

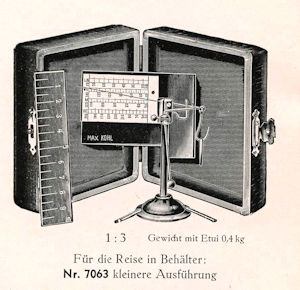

the image of No. 7063 from the 1938 catalog of Max Kohl
the scale model is different in several details from the
yarn scale shown on this webpage

detail 3

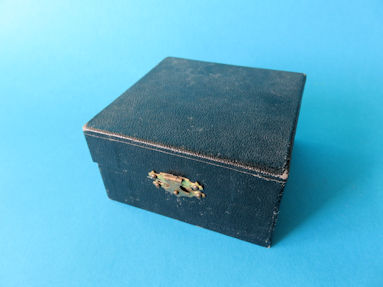

the bottom of the carton packing box
