AERO
airmail letter scale

maker: Philipp Jakob Maul, Hamburg, Germany
bruine lijn

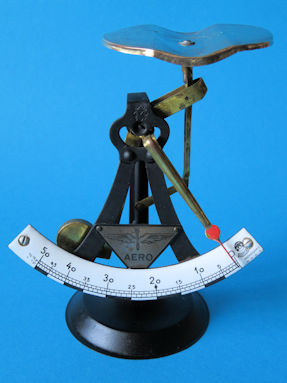

Aero airmail letter scale
Aero airmail letter scale


This letter scale was made by Philipp Jakob Maul from Hamburg in Germany. The letter scale is named Aero. The scale was intended for airmail, so for mail that was transported by plane or sometimes by helicopter. The enamel scale goes up to 50 grams. The scale is self-adjusting because the scale and the pointer rotate on the same axis. The scale is divided in three ways. Per half gram, below that stripes of measure per gram, and below that a block band with a division per five grams. The distribution per half gram and per gram is indicated on the left of the scale. To the right of the scale is the symbol for the CONCAV positioned scale, the designation MONOGRAD and the abbreviation D.R.G.M. that stands for Deutsches Reich GebrauchsMuster, a design protection that was cheaper and faster available compared to a patent. The height of the Aero is 155 millimeters. The diameter of the letter plate is 75 millimeters. A 100 grams version exists also. In a 1937 price list from the company G.C.T. Van Dorp & Co., based in the Dutch East Indies, this "AERO" is presented, see the image below.
Below some more pictures of the Aero letter scale for airmail.

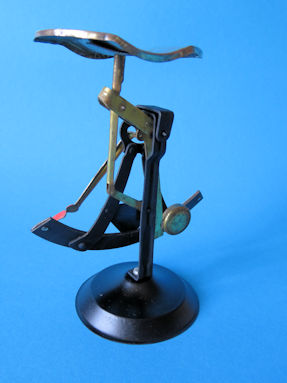

back of the Aero
back of the Aero airmail letter scale

uit 1937 prijslijst Van Dorp_a
the "AERO" letter scale is in the 1937 price list of the firm G.C.T. Van Dorp & Co., based in the Dutch East Indies

detail 1
in the frame is the M logo of Philipp Jakob Maul

detail 2
the stylized airplane wings and the name AERO

detail 3
three measuring scales one below the other

detail 4
indication per ½ gram and per 1 gram

detail 5
the weighing range is 50 grams

detail 6
CONCAV + MONOGRAD + D.R.G.M.

detail 7
with a weight of 50 grams

detail 8
seen from below

detail 9
the weighing platform can be removed
