REFORM
egg scale

maker: Broedmachinefabriek (=Incubator Factory) „Reform”,  G.J. Pas, Zeddam, Netherlands
bruine lijn
egg scale, maker broedmachinefabriek Reform

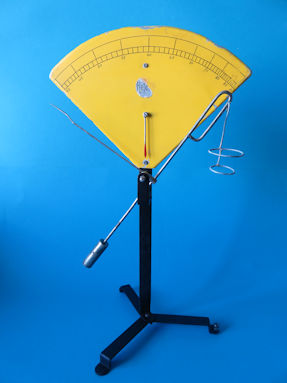

Reform egg scale


This egg scale was made by Broedmachinefabriek „Reform”, G.J. Pas, from Zeddam, in the Netherlands. The scale of 40 to 90 grams has a division per five grams and per gram. The scale is easy to read due to its dimensions and the bright yellow color and the black lines. When weighing an egg, it is advisable to manually steer the double curved end of the egg holder arm, because due to the beautifully designed bearing with conical pointed shaft ends and the lack of a motion damper, it otherwise takes a very long time to come to a standstill, and only then can the scale be properly read. The egg scale has an indicator arm to check the vertical position. One of the legs of the upright has an adjustment screw to adjust the position.
This egg scale has an incomplete round sticker with the brand name Reform on it. On another specimen I saw a metal nameplate attached with two rivets with the text Broedmachinefabriek „Reform”,  G.J. Pas, Zeddam. Another specimen had a simple rectangular sticker with the text: Reform Zeddam.
This egg scale is 44.5 cm high and the yellow part is 27 cm wide.
The company still exists under the name Pas Reform and nowadays makes high-quality incubators.
Below some more pictures of this Reform egg scale.



back of egg scale
back of the Reform egg scale

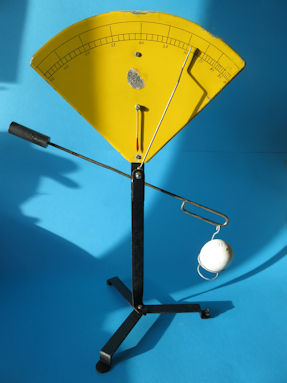

egg scale
this egg weighs 59 grams

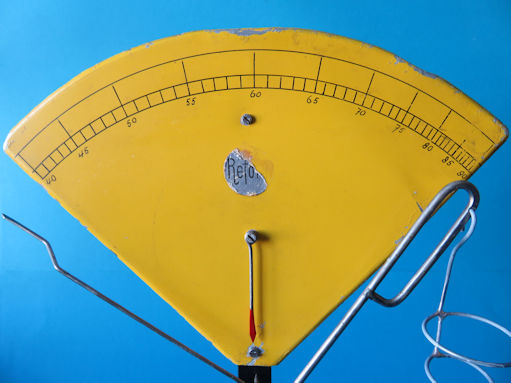

the measuring scale in grams
the clear chart ranges from 40 to 90 grams


egg scale
this egg weighs 51 grams


side view
side view


egg scale
animation: the egg scale
with and without egg
[move the pointer over the photo]
side view
side view



detail 1
the perpendicular pointer

detail 2
this egg weighs 71 grams

detail 3
the pointer is at 71 grams

detail 4
beautiful bearings with pointed shaft ends

detail 5
beautiful bearings with pointed shaft ends

detail 5
thee Reform egg scale

detail 7
this egg weighs 54 grams

detail 8
the incomplete name sticker

detail 9
this egg weighs 71 grams

detail 10
test with 20 + 50 gram weights

detail 11
together 70 grams

detail 12
the 70 grams is designated

detail 13
the egg holder

detail 14
with the egg tip down

detail 15
with the egg tip up
