BIZERBA
Luftpostbriefwaage
BIZERBA
airmail letter scale

maker:
Bizerba Waagenfabrik,
Wilhelm Kraut Kommanditgesellschaft,
Balingen, Württemberg, Germany
bruine lijn

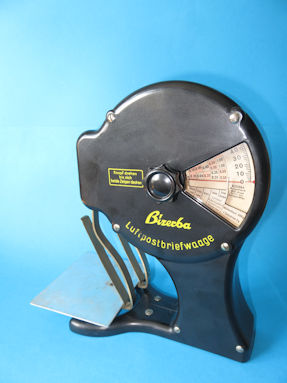

Bizerba airmail letter scale
Bizerba airmail letter scale


This special and also rare scale is an airmail letter scale, in German: Luftpostbriefwaage. The Bizerba Waagenfabrik, Wilhelm Kraut Kommanditgesellschaft, from Balingen in Württemberg in Germany is the maker. The operation of scales mechanism is special. After a letter or other burden has been placed on the scale, a pointer moves upwards. By turning the large central adjustment knob clockwise, the dial rotates clockwise and at the same time the clockwise rotation of the adjustment knob further tightens a spiral spring. As a result, a new equilibrium position is set by hand, the pointer descends again to the fixed pointer and is then again in line with the red line. The scale can then be read. The corresponding postage value, depending on the type of mail, is shown behind the red line on the chart. These German postage values date from the period September 1, 1948 - July 1, 1954. The mail types for which the postage values are on the scale are: samples, printed matter, letters, domestic airmail letters and airmail letters to countries within Europe.
After removing the letter or the weighing load, the pointer moves down. By turning the large central adjustment knob counterclockwise, the dial rotates counterclockwise and at the same time turning the adjustment knob counterclockwise reduces the tension of the spiral spring. As a result, a new equilibrium position is set by hand, the pointer rises again to the fixed pointer and is then again in line with the red line. The zero position is now back. The scale has knife-edge bearings on the side of the hanging letter scale. The spiral spring and the arm of the pointer together have a cone shaft bearing. An adjusting knob protrudes from the scale housing on the left. With this, this airmail letter scale can be set precisely to zero.

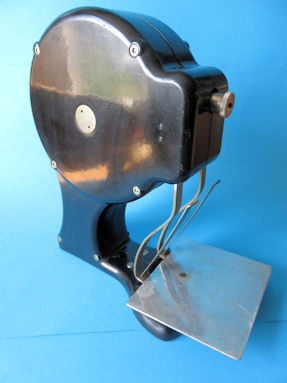

back of the airmail letter scale
back of the airmail letter scale


The weighing range is 500 grams. There is a stripe of measure per two grams. The airmail letter scale is 29 cm high, the scale house is 8 cm deep and 20 cm wide, the house diameter is 18 cm. The scale foot is 22 centimeters long and a maximum of 14 centimeters wide. At the bottom are some photos of the still dusty and dirty scale and some details of the scale mechanism. Below some more pictures of this special Bizerba airmail letter scale.

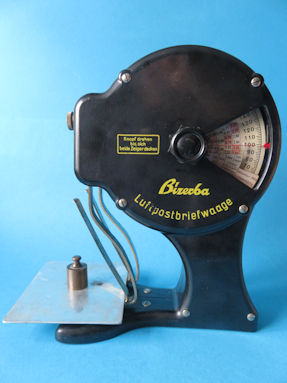

side view
side view

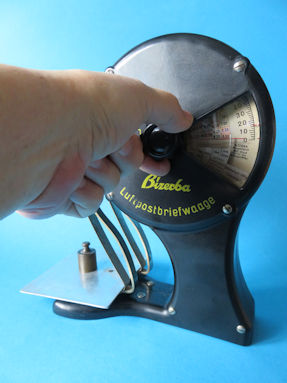

turning the rate scale to equilibrium
animation: turn the tariff scale with the central knob
clockwise to equilibrium at 100 grams
[move the pointer over the photo]
side view
side view


detail 1
the scale at 0 gram and the two pointers on
top of each other



detail 2
the scale at 100 grams and the two pointers on
top of each other

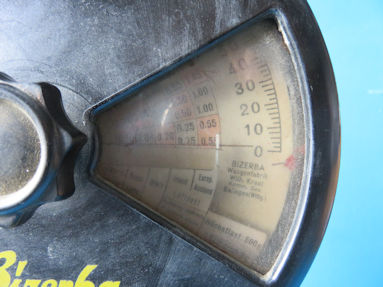

detail 3
BIZERBA Waagenfabrik
Wilh. Kraut
Komm. Ges.
Balingen(Wttbg)

detail 4
German meaning: turn the knob until both pointers
are on top of each other

detail 5
the brand name BIZERBA


detail 6
Luftpostbriefwaage
German meaning: airmail letter scale

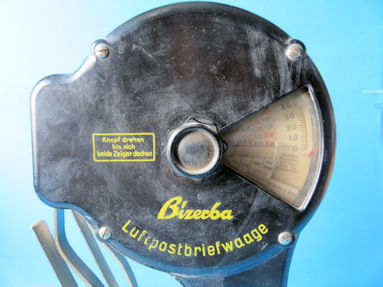

detail 7
the still dusty scale

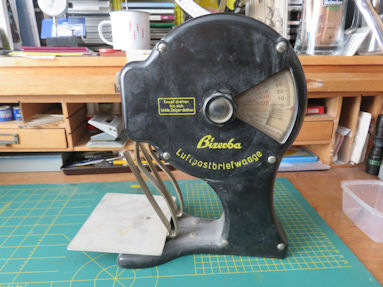

detail 8
a bent pointer and little visibility due to dirty and loose sight glass

detail 9
the dusty scale house

detail 10
rattling sight glass and bent tariff plate

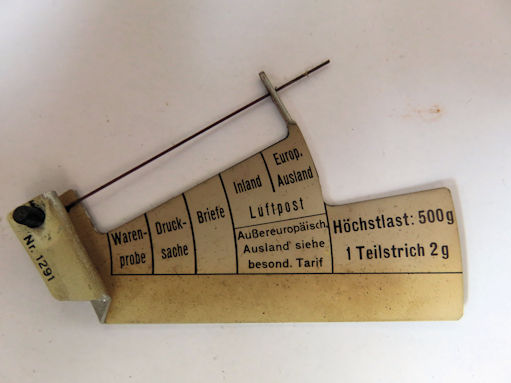

detail 11
disassembled plate with the mail types: Warenprobe = sample - Drucksache = printed matter
- Briefe = letters - Inland Luftpost = domestic airmail - Europ. Luftpost - European airmail
maximum load 500 grams, a stripe of measure per 2 grams

detail 12
bottom with three rubber feet

detail 13

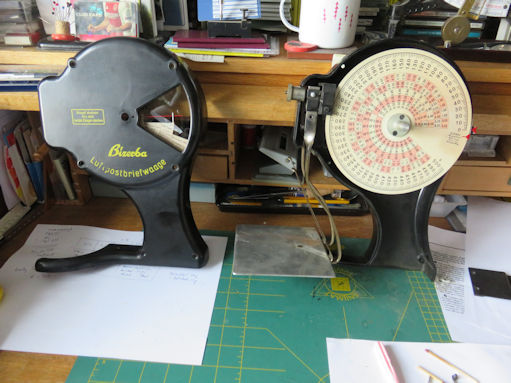

the front and the interior of the scale

detail 14
the two pointers can be seen below

detail 15

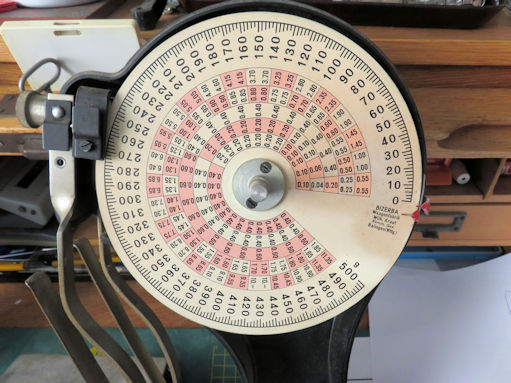

the scale with rates for several types of mail from the period September 1, 1948 - July 1, 1954

detail 16

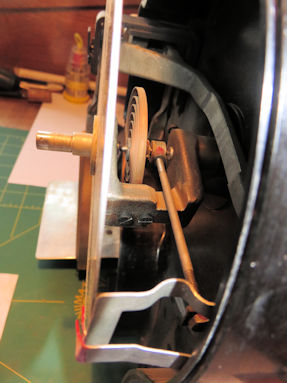

this adjustable spiral spring provides the power to achieve equilibrium
