letter scale, maker Brown & Bigelow
Brown & Bigelow advertising letter scale


This is a moderately executed ugly version of a previously shown letter scale, see the diabolo. The top diameters of the flattened cones are different and therefore do not fit together nicely, which is the case with the diabolo. A roll of stamps or post stickers fits in the bottom. There are four slots, that's three too many. The company Brown & Bigelow, from St. Paul, Minnesota, U.S.A. is the supplier of this promotional item. On the top surface is an advertisement for the company Priebe Printers from Chicago, U.S.A. The scale goes up to 8 ounces and has a division per ounce. The aluminum scale part containing a spring steel compression spring is identical to the mechanism of the Scale Queen and the Scale King. These versions have a scale that is divided by half an ounce.
The diabolo model was protected for only three months on November 16, 1961 with a Gebrauchsmuster DE1841625U in Germany in the name of Salm + Henkels from Solingen-Merscheid. In the U.S.A. the diabolo model was protected with an American Design patent with number D193,682. It is dated September 25, 1962. It is in the name of Arthur Salm Inc. Chicago, Illinois, U.S.A.
Below some more pictures of this advertising letter scale.

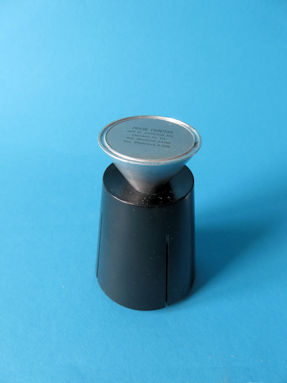

the letter scale
the advertising letter scale

scale base part
the name of the promotional items
supplier B & B St. Paul, Minn, U.S.A.
is moulded into the scale base part

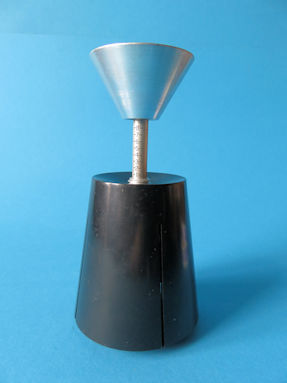

two positions of the letter plateau
animation: two positions
of the letter plateau
[move the pointer over the photo]
scale plateau
advertisement for Priebe Printers,
from Chicago


detail 1
stripes of measure per ounce up to 8 oz

detail 2
detached base

detail 3
as a sticker dispenser

detail 7b

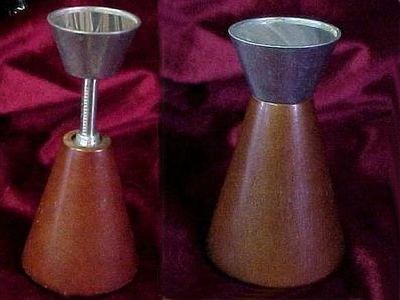

the nicer diabolo

detail 8b
ready to weigh

detail 9b
the nicer design

figures Design patent
figures Design patent D193,682


two positions
animation:
two positions
of the plateau
detail 4
the beautiful diabolo
