The Standard Egg Scale
egg grader

supplier: an unclear company from Saskatoon, Saskatchewan, Canada
probable maker: Hiram L. Piper Co., Limited, Montreal, Canada
bruine lijn

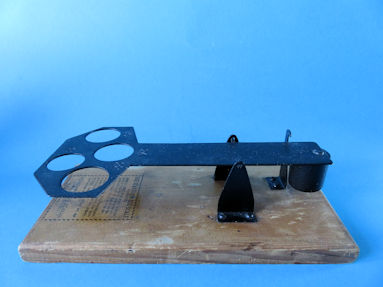

Canadian egg grader, maker unknown
egg grader from Canada


This egg scale is used to sort eggs by weight classes. The classification is the American-Canadian way, which is in ounces per dozen eggs. The classes are 18, 20, 22 and 24. The original design was by Alfred William Cook and William Allen and was patented in Canada on December 5, 1922 with patent number CA226,712. The patent figures are below. The photographed egg scale is of a more recent date and is even simpler. There is no fine adjustment and the counterweight is not rotatable suspended but fixed on the weighing arm. The egg classes are printed on the wooden base plate and also a brief instruction manual. A company name has been scratched out. Similar copies bear the company name Hiram L. Piper Co., Limited, 555 St Remi St. Montreal. Charley Amsbaugh in his book North American Egg Scales mentions the ABC egg scale from 1922 as the first scale based on this patent. The Piper egg scale dates from about 1952.

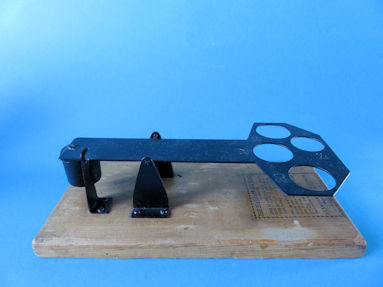

other side of scale
other side of the egg scale


In the early 1960s, Hiram L. Piper Co. Ltd. made another version with a metal base plate. A company name is largely illegibly stamped on the underside of the wooden base plate, but the place name Saskatoon, Saskatchewan is still legible. Below some more pictures of this Canadian egg scale.

detail 7
the upper part of the instructions for use printed on the wood

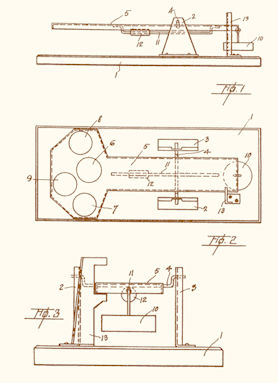

patent figures
the figures from the patent CA226,712 of December 5, 1922
show small differences with the egg scale shown here
detail 8
the lower part of the instructions printed on the wood
Important
Scale must be level and place eggs vertically in holes

side view
side view


without and with an egg
animation: without and with an egg
on the left the movement is limited
[move the pointer over the photo]

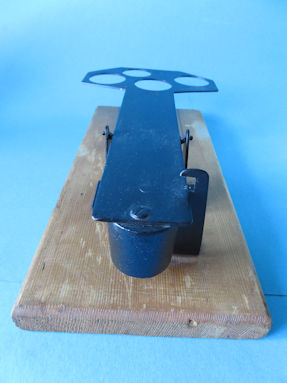

side view
side view

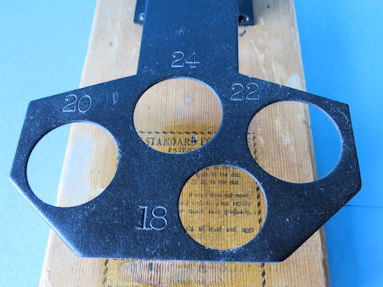

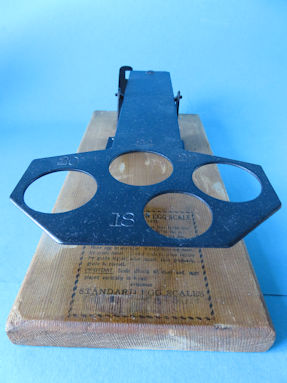

detail 1
the egg weight classes 18, 20, 22, and 24 ounces per dozen

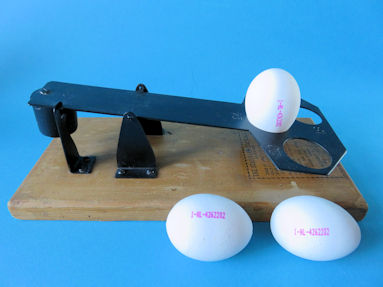

detail 2
today's eggs are big and heavy

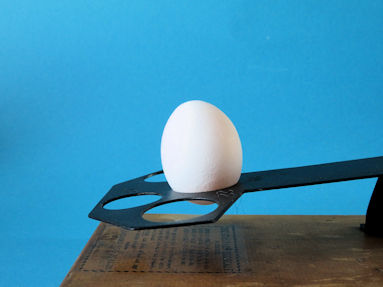

detail 3
this egg is above 24oz per doz.

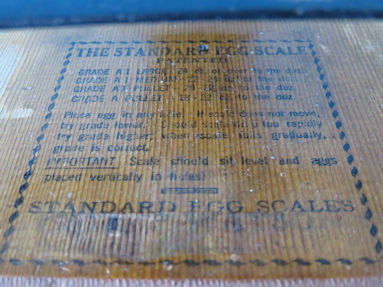

detail 4
the instructions for use are printed on the wood of the base plate

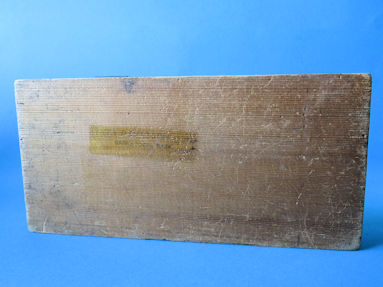

detail 5
the name of the supplier is presumably on the bottom

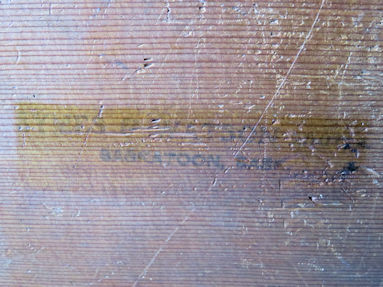

detail 6
the place name SASKATOON, SASK. is still to be read
