torsion balance
type 258

maker: The Torsion Balance Co., New York, U.S.A.
bruine lijn

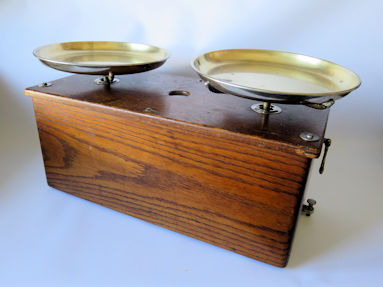

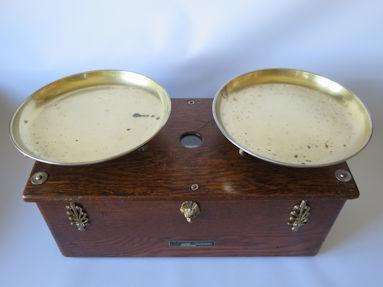

torsion balance, maker The Torsion Balance Co.
torsion balance, maker The Torsion Balance Co.


This torsion balance is made by The Torsion Balance Company, from New York in the U.S.A. It is a large and heavy scale in a wooden box. The whole weighs no less than 9.2 kilograms. On the bottom of the box of this copy is a plumb plane that says NEW. YORK, MAD, 1939. This type is probably much older, probably from around 1900. As early as August 15, 1882, Alfred Springer and Frederick A. Roeder were granted a patent entitled Beam-Scale. In it the torsion wires are round, here in this type 258 it is a flat wire that provides the torsion forces.
When bought, this torsion balance could not be balanced. After disassembly and finding out which weight adjustment was necessary, the proper balance function was restored. It is a counter scale that requires another set of weights.
Below are some more pictures of the torsion balance.



back of the torsion balance
back of the torsion balance

detail 1

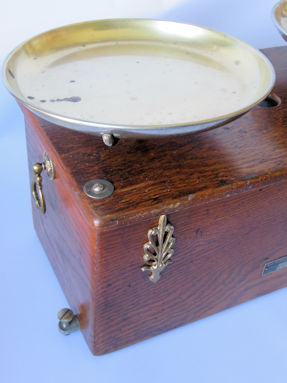

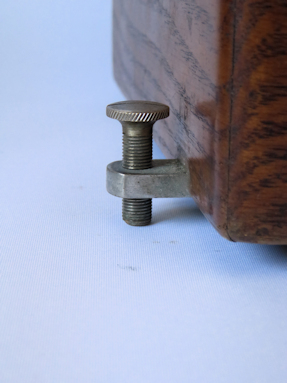

there is a set screw on the left

detail 2
the pointer is clearly visible in the sight glass

detail 3

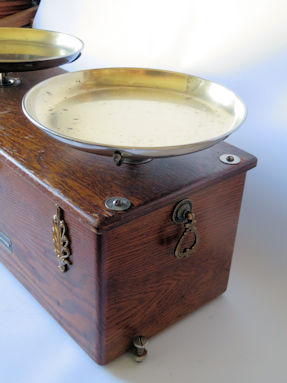

and there is also a set screw on the right

animation the scales can come off
animation: the scales can come off
[move the pointer over the photo]

animation the balance makes small movements
animation: the balance makes small movements
[move the pointer over the photo]

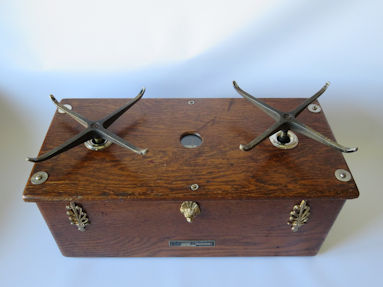

animation reversing the scales
animation: reversing the scales
[move the pointer over the photo]


detail 1

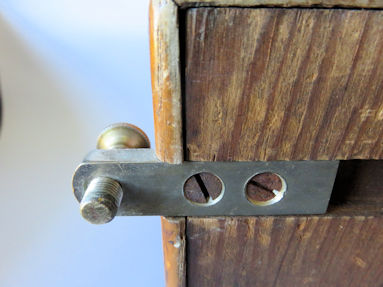

the mounting of the adjusting screw holder on the underside

detail 2

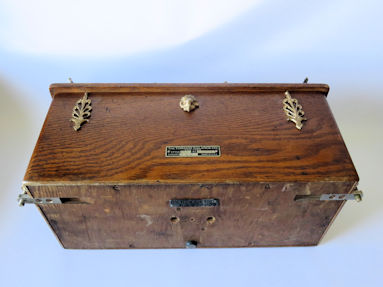

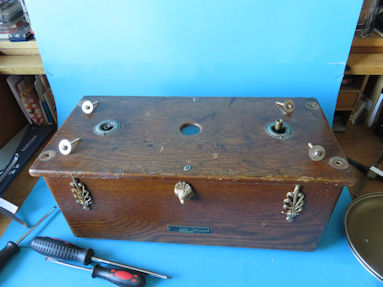

the bottom with a set screw on the left and right

detail 3

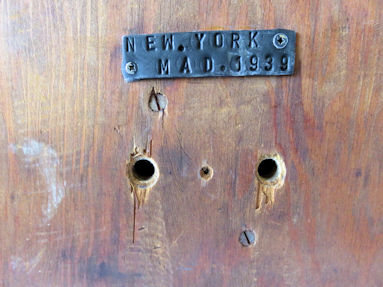

In the middle of the bottom is a plumb plane

detail 4

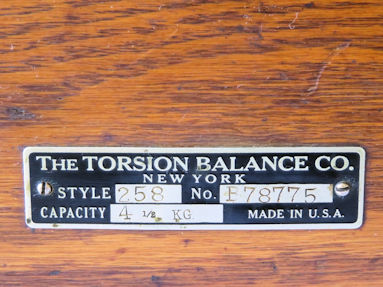

the brand and type plate

detail 5
the adjusting screw is very firm

detail 6

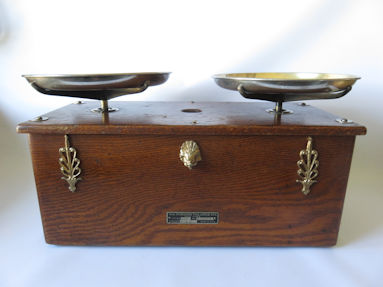

the balance in equilibrium

detail 7

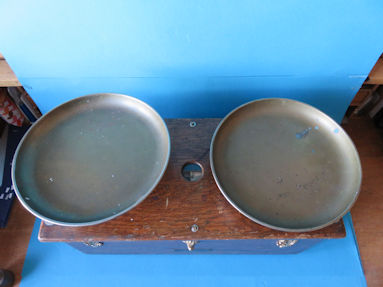

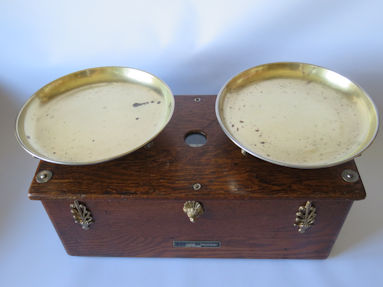

seen from above

detail 8

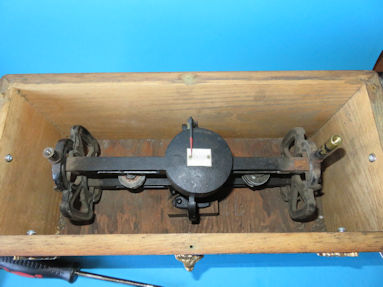

half way through the disassembly

detail 9

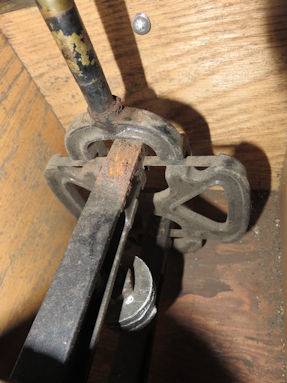

the mechanism of the torsion balance made visible

detail 10
the torsion straps on the left in the picture

detail 11
with a weight on the left the balance is restored

detail 12
the torsion straps on the right in the picture

detail 13

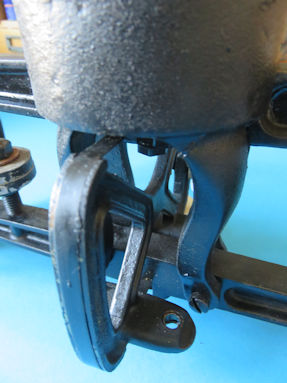

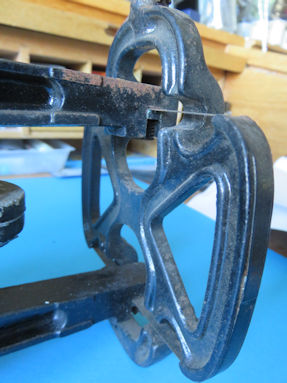

the torsion strap on the left mounted in a sturdy frame

detail 14

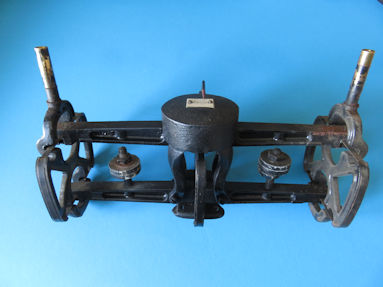

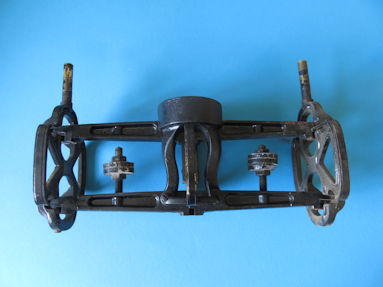

the balance mechanism disassembled from the box

detail 15
the center section torsion band

detail 16

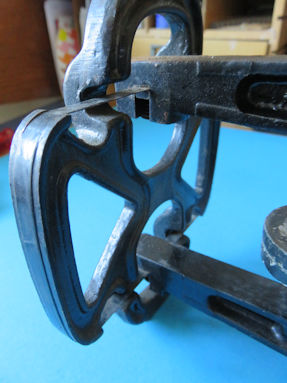

the torsion strap on the left mounted in a sturdy frame

detail 17

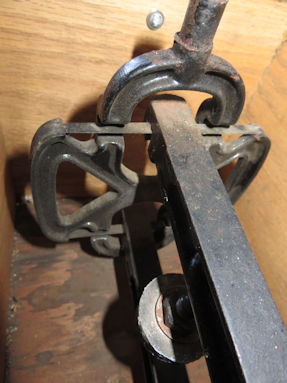

good picture of the balance mechanism before restoration

detail 18
the torsion strap on the right mounted in a sturdy frame
