CENT-O-GRAM
BALANCE
model 311

maker: Ohaus Corporation, Florham Park, New Jersey, U.S.A.
bruine lijn

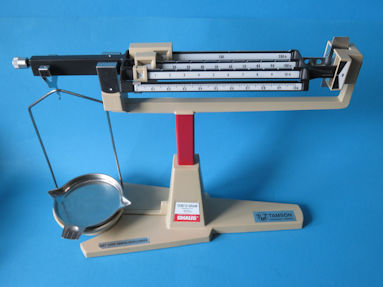

laboratory scale, maker Ohaus
Ohaus laboratory scale


Although a letter can be weighed on it, this is not a letter scale. It is a laboratory scale, also known as an uneven arm balance. The scale is made by Ohaus Corporation, Florham Park, in New Jersey, U.S.A. This scale is listed in Ohaus catalogs as model 311. The old model 311 is a version with a round red upright, two free weights and three arms with sliding weights, and was already available in 1953. The more modern version shown here with a rectangular round upright, has four arms with sliding weights and has been for sale since about 1974. The weighing range is 311 grams, and can be read per 0.01 grams. The balance has agate bearing pans, steel knife-edge bearings, a stainless steel loose pan, and magnetic damping to quickly stop movement. The balance has a separate platform to be used for specific gravity determinations. The platform can therefore easily be adjusted to the desired height. The loose pan and the suspension bracket are numbered the same, this number is also on the back of the balance, all this to make accidental exchange more difficult.

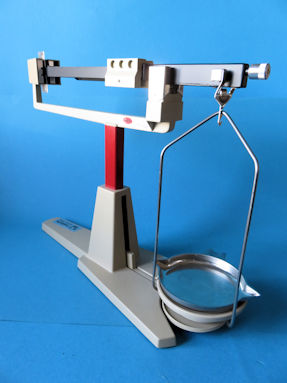

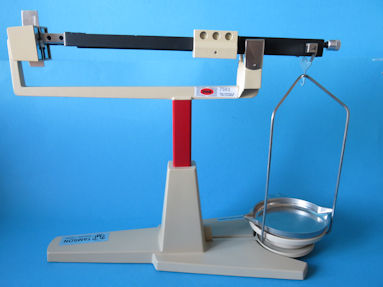

back of the scale
back of the laboratory scale


The rear three arms of the balance have grooves for stepping in the windowed sliding weights. The front arm has no grooves. On the rear fourth arm, the weight can be moved from zero to 100 or 200 grams per increment of 100 grams. On the third arm, the weight can be moved from zero to 100 grams per step of 10 grams. On the second arm, the weight can be moved from zero to 10 grams per step of 1 gram. The front first arm has 100 graduations on the arm from zero to 1 gram and the sliding weight with a pointer allows reading per 0.01 gram. There are numbers on this front arm per 0.1 gram. With all weights moved maximally to the right, the supplied counterweight is added together 200 + 100 + 10 + 1 = 311 grams. The balance is intended for use in laboratories of schools and of industries, for doing chemical and other fine weighing.
Below are some more images of this special Ohaus balance.

balance

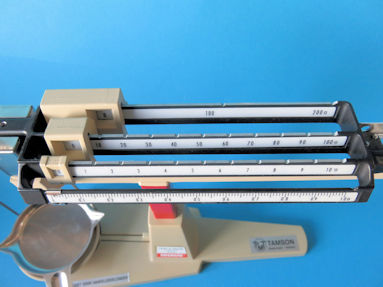

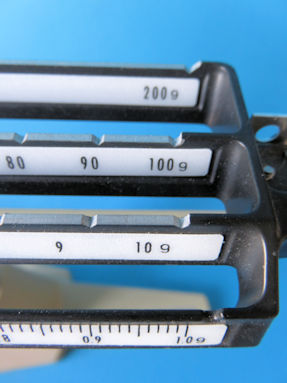

four balance arms with sliding weights

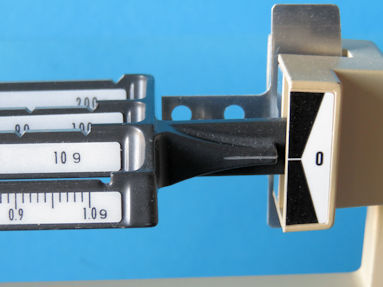

in equilibrium
the horizontal stripes in line indicate balance


balance

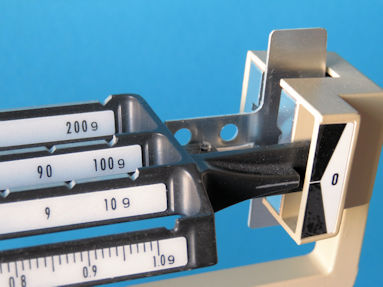

the magnet damping by a vane between two magnets


detail 1
suspension bracket

detail 2

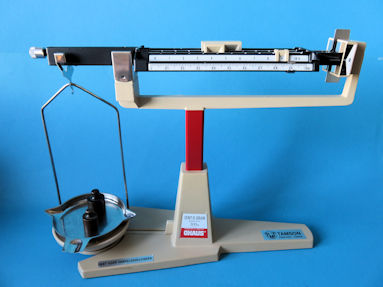

weighing with 150 grams of weights

detail 3

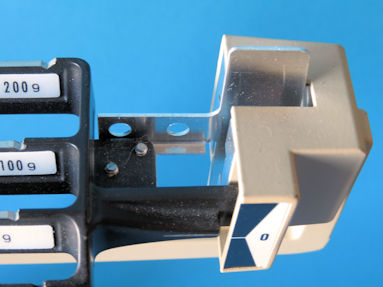

view of the magnetic damping

detail 4

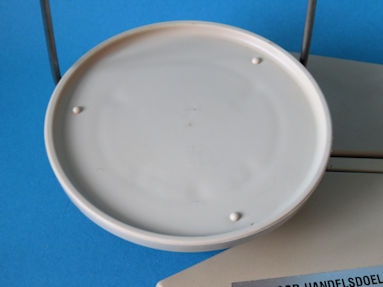

the platform for the stainless steel removable pan

detail 5

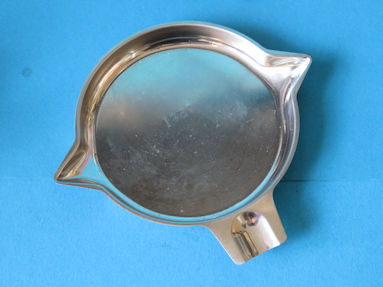

the stainless steel removable pan

detail 6

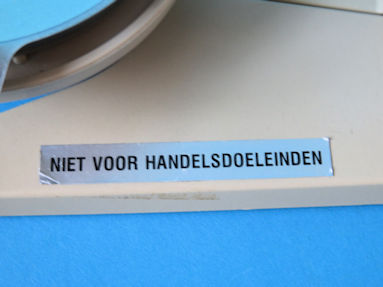

Dutch, translated: "not for commercial purposes", a usage restriction

detail 7

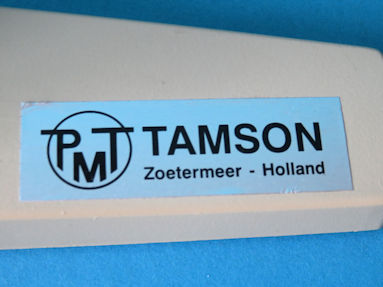

sticker from the Dutch supplier

detail 8
Ohaus type and brand plate

detail 9

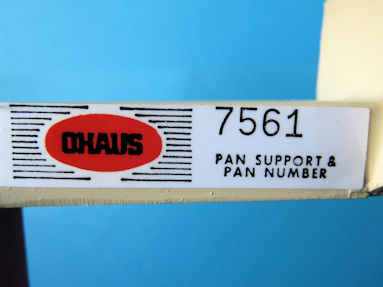

on the back is the number of the loose pan and the suspension bracket

detail 10

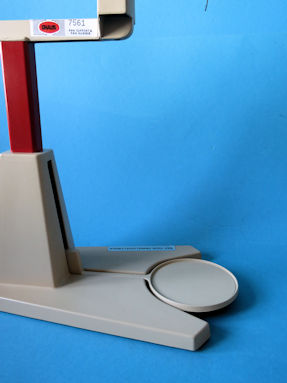

platform to be used for specific gravity determination

detail 11

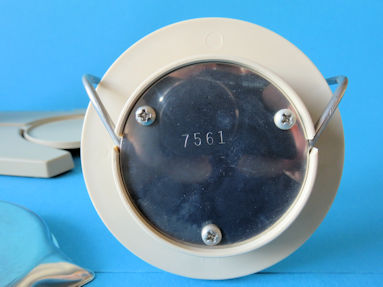

the number on the bottom of the suspension bracket

detail 12

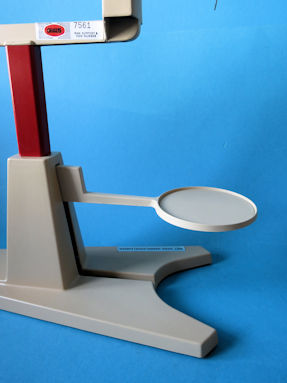

platform in a position for specific gravity determination

detail 13

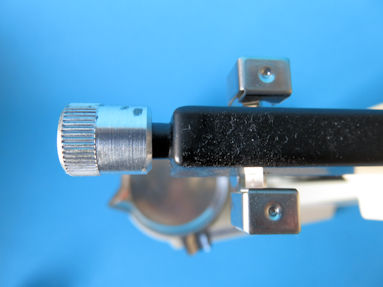

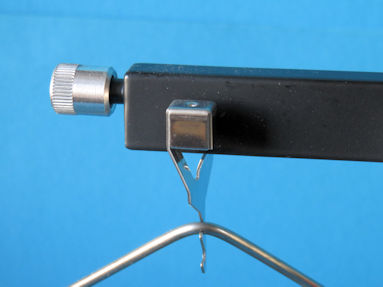

aluminum rotary knob for zero adjustment of the balance

detail 14

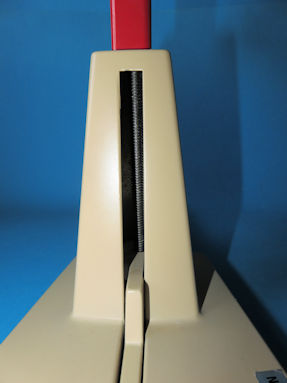

rod on which the specific gravity platform is slid

detail 15

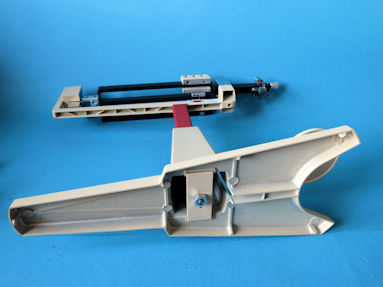

the bottom

detail 16
the balanced damper vane is 29 centimeters high

detail 17
here all sliding weights are at zero on the far left

detail 18
notice the grooves on the back three arms
