LOUIS SCHOPPER
paper scale

maker: Louis Schopper, Leipzig, Germany
bruine lijn

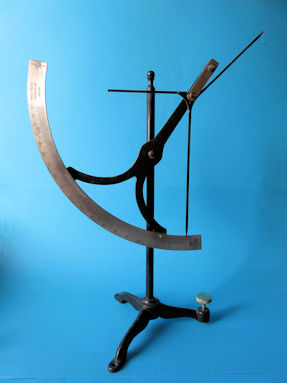

paper scale, maker Louis Schopper
Louis Schopper paper scale


This paper scale was made by Louis Schopper from Leipzig in Germany. According to an article in Mass und Gewicht Nr. 83, September 2007, by Hartmut Mollat with the title Wie alt sind die Geräte von Louis Schopper aus Leipzig? Louis Schopper numbered his products consecutively. Based on the number 39178 on this paper scale, this scale comes from the period 1939 - 1942. Paper scales were already made around 1904 by Louis Schopper. Those models with type number 372 differ in details from the paper scale shown here, see also at the bottom of this page. Several parts of the scale are marked with the letter B.
This paper scale is measured on the stand 41.5 centimeters high. The highest point of the measurement scale is 42.5 centimeters. The highest point of the load arm is 46 centimeters high. The measurement scale goes up to 200 grams per square meter and is subdivided per gram. The piece of paper to be tested should be 10x10 centimeters in size. This paper scale does not include a template for cutting the paper to be tested.
Below are some more images of this Louis Schopper paper scale.

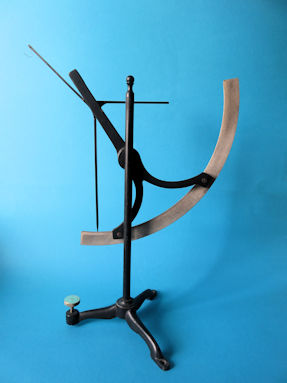

back of the paper scale
back of the paper scale

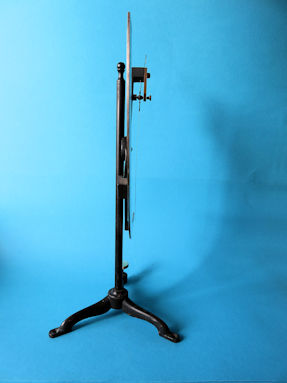

side view
side view

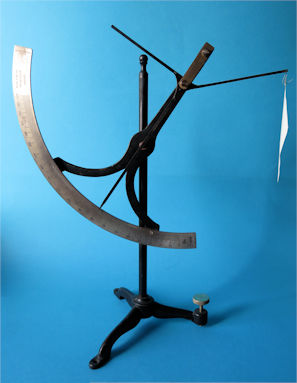

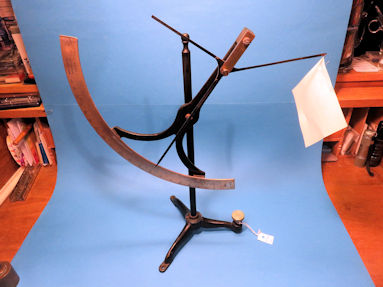

the paper scale in use
the paper scale in use

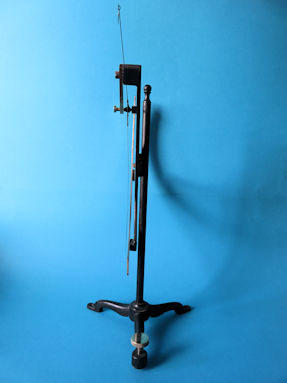

side view
side view

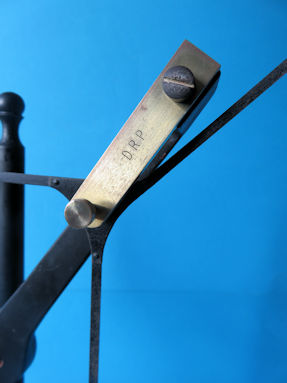

detail 1
abbreviation D.R.P. stands for Deutsches Reich Patent

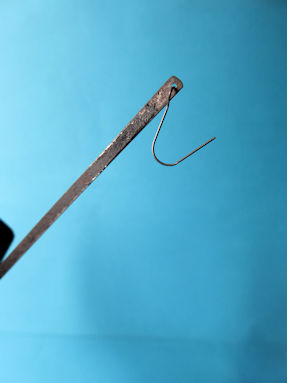

detail 2
the hook for the paper sample

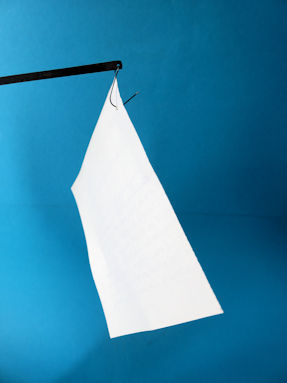

detail 3
hook with a paper sample

detail 4
the factory name Louis Schopper from Leipzig

detail 5
the unit of measure Gramm per m2 at 10x10 cm

detail 6
the weighing range is 200 Gramms

detail 7
the scale is subdivided per gram

detail 8
the logo and the serial number 39178

detail 9
the tripod with a zero adjustment screw

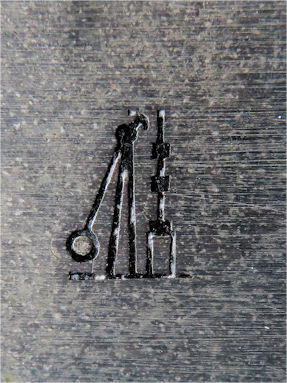

detail 10
the registered trademark

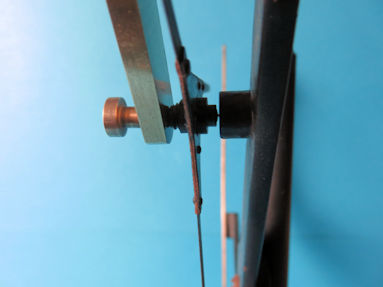

detail 11
the pivot point with loose pivot axis

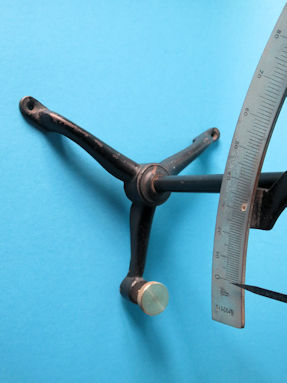

detail 12
the tripod base from above

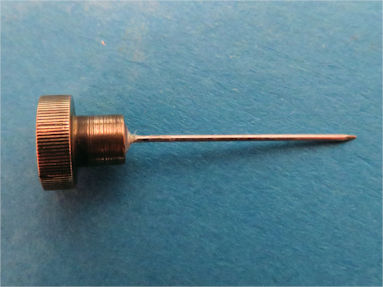

detail 13
the rotary shaft diameter is 0.8 millimeters

detail 14
the paper scale in use

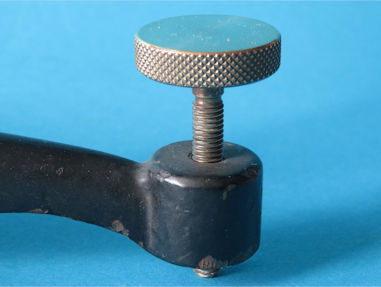

detail 15
a large brass zero adjustment screw

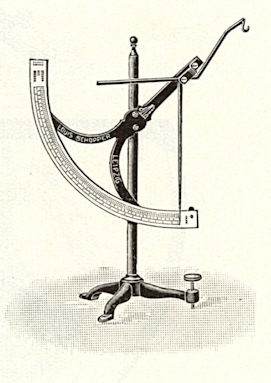

weger
with one screw fixed to the upright
with straight load arm

weger
fixed to the upright with two screws
with a bent load arm

weger
the registered trademark


wegerdetail
marked B on the back of the scale


wegerdetail
marked B on the inside of the brass rotary axis block


wegerdetail
marked B on the frame opposite the rotary axis block
