letter scale

maker: Narcisse Briais, Paris, France
bruine lijn

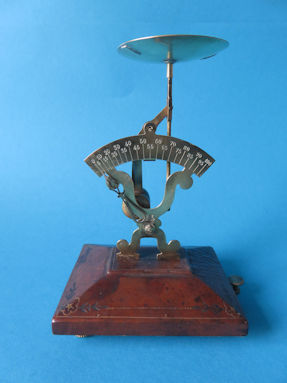

letter scale, maker Narcisse Briais
Narcisse Briais letter scale


This scale comes from France. It has the NxB Paris logo on the front. NB are the initials of Narcisse Briais from Paris. The brass scale mechanism is very similar to this photographic letter scale shown earlier. The catalog of Societé des Lunetiers of 1924 presents this scale under the heading pèse-lettres that is: letter scale. Elsewhere in a catalog of Brewer Frères in 1913 stands next to pèse-lettres also balances pour photographie, translated: scales for photography. And still beneath the picture is added the text ..aussi servir á peser des produits chimiques ou autres objets.. translated: ..can also serve to weigh chemicals or other items.. This little scale was made in France and bears the N.B. logo of Narcisse Briais from Paris. Narcisse Briais was a French instrument maker who crafted letter scales and balances between 1859 and 1886. The N.B. logo was introduced in 1876. After 1886 G. Restorf took over the company and continued to apply the N.B. logo. In 1914 Restorf discontinued the company. After this M. Ducos used the logo N.B. on his letter scales in the period 1915-1926 and from 1927-1931 M. Guérin continued to apply the N.B. logo still on letter scales (source: Le Système métrique 1997-3, page 1124). The design was patented in France by M. Restorf on January 13, 1886 with the patent number 171632. In the ISASC magazine Equilibrium 1990 No. 4, is written on page 1406 that already in 1871 the Englishman Ragg did receive a patent for the design of this same letter scale.
The weighing range of 100 grams is subdivided per 5 grams. The mechanism is made of brass. The height of the letter scale is 16.5 centimeters, the leather-covered foot measures 11 x 9.2 cm. The detachable brass bowl doesn't seem original, but it doesn't look out of place, its diameter is 6.5 centimeters.
Below some more pictures of this Narcisse Briais letter scale from Paris.



back of letter scale
back of letter scale

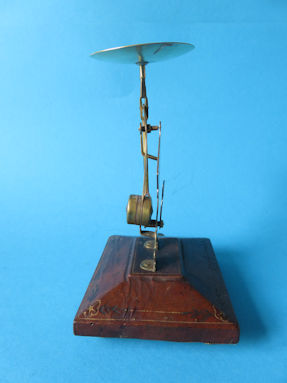

side view
side view


unloaded and loaded
animation: unloaded and loaded
[move the pointer over the photo]

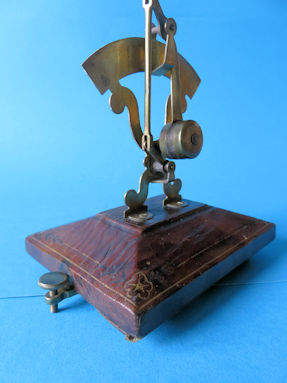

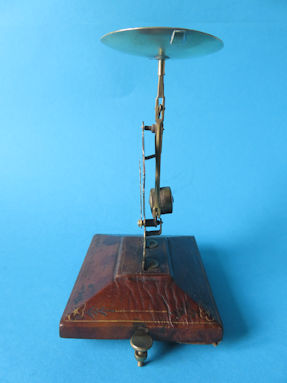

side view
side view

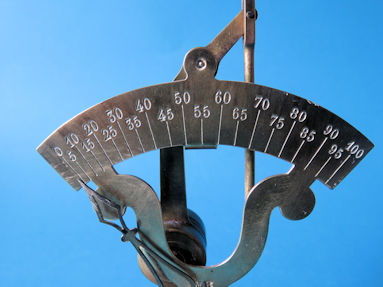

detail 1
stripes per five grams, the scale goes up to a maximum of 100 grams

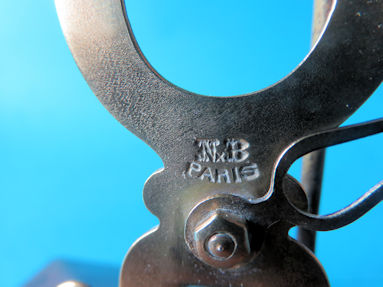

detail 2
the NxB logo of Narcisse Briais from Paris

detail 3
the scale is attached to the scale foot with two screws

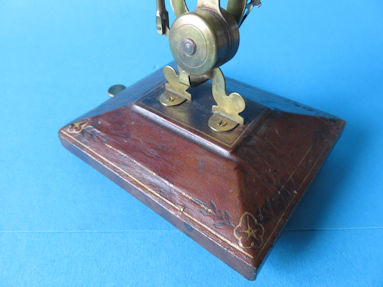

detail 4
the scale foot is covered with leather

detail 5
the foot has gold colored patterns

detail 6
detail of the foot decoration

detail 7
the scale has two fixed ornate brass feet

detail 8
covered bottom of the scale base

detail 9
the screw for the zero adjustment
