letter scale
marked:
A.C. v. Rijn
den Haag

presumably of Dutch manufacture
bruine lijn

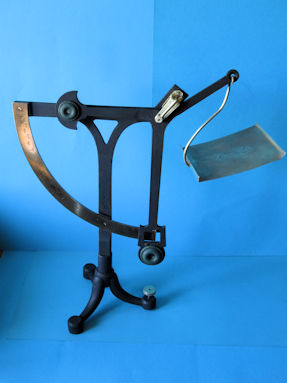

letter scale, unknown maker
letter scale marked A.C. v. Rijn, den Haag


On the brass measuring scale of this large letter scale the name A.C. v. Rijn, den Haag is written in an oval at the top left. This was probably the user of the letter scale and not the maker. In Meten en Wegen No. 151 from September 2010, the pages 3597-3599 contain an article by Rein Kok with the title Een brievenweger van Kipp uit Delft (Translated: A letter scale by Kipp from Delft). The 200 gram letter scale described therein has the name P.J. Kipp & Zn. Delft and J.W. Giltay Opv.. And that combination of names was used from 1887 to 1916. In addition, a nameless and unbranded scale of 1000 grams is described, this scale is also attributed to Kipp from Delft. In the book Weegwerktuigen of the Staatsbedrijf der Posterijen, Telegrafie en Telefonie, for short the PTT (The Dutch state-owned Postal, Telegraph and Telephony Company), the image section contains this letter scale in figure 131. This book compiled by J.N. Bosch dates from 1962. No maker or brand is mentioned in the description. These scales are said to have been used by the PTT until 1950. I saw another copy on the internet, the owner replied that it was marked with RIJKSMUNT.
The company A.C. van Rijn was an Electrical Technical Bureau active from around 1912 to about 1924. This company probably did not trade in letter scales, but was probably the user of this letter scale. A.C. van Rijn was later active in the firm Handel-Mij Electro-Metaal, certainly until 1972.
The bearings on the suspension point of the letter scale shown here are missing, but can be seen in the figure 131 mentioned. The letter plate has been reattached to the suspension bracket with soft solder, it is probably not the original letter plate. The weighing range of 1000 grams is subdivided per five grams. Various parts are marked with the number 43. The highest point of the letter scale is 52.5 centimeters.
Below are some more pictures of this large letter scale.

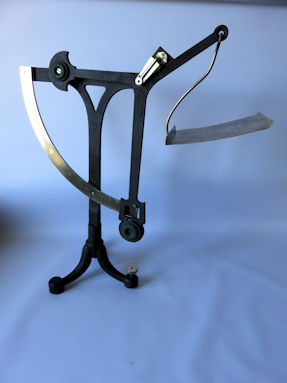

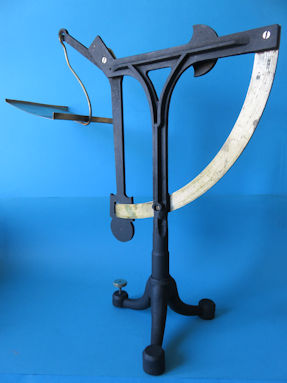

back of the letter scale

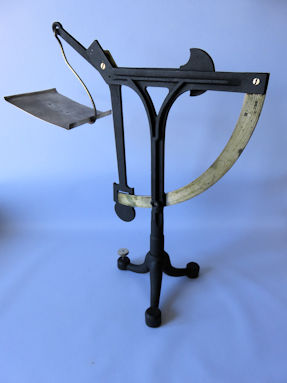

back of the letter scale

scale

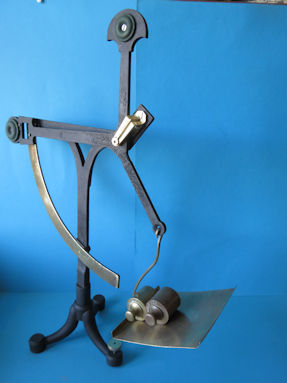

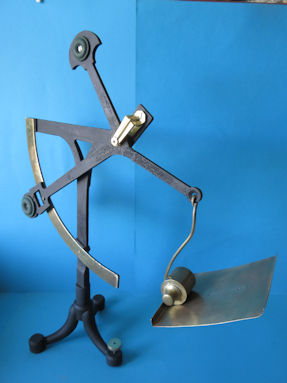

the letter scale loaded with 500 grams


two different loads
animation: the letter scale without or
with a 500 grams load
[move the pointer over the photo]
scale

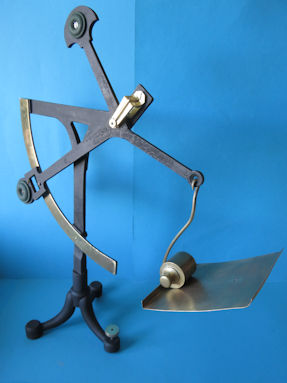

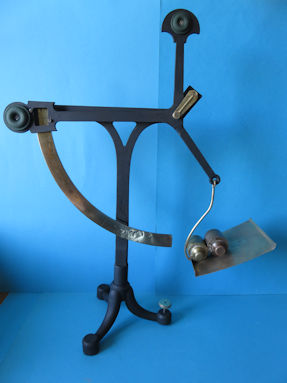

the letter scale loaded with 1000 grams



detail 1

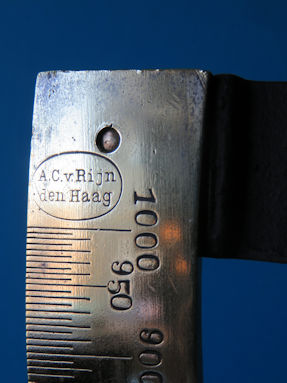

marked: A.C. v. Rijn den Haag

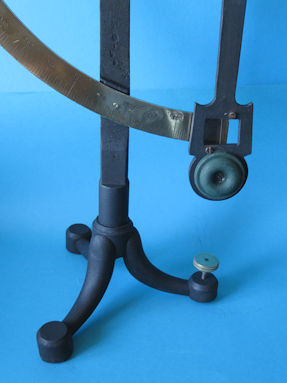

detail 2
the tripod of the letter scale

detail 3
the reading wire is fixed with screw bolts

detail 4
the brass bearing block

detail 5
the suspension of the letter plate

detail 6
stripes per 5 grams

unloaded or loaded
animation: the letter scale without or
with a load of 500 grams
[move the pointer over the photo]
two different loads
animation: the letter scale loaded with 500 grams or
with 1000 grams
[move the pointer over the photo]
loaded or unloaded
animation: a fully letter scale loaded with 1000 grams
or an unloaded letter scale
[move the pointer over the photo]
detail 7

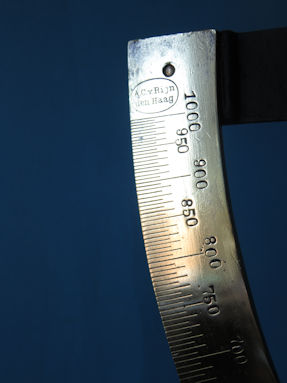

stripes close together: subdivided per 5 grams

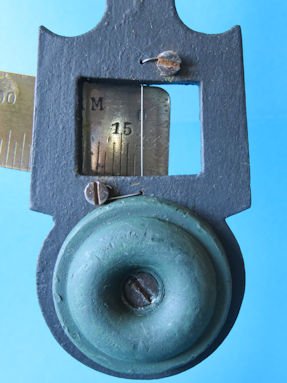

detail 8

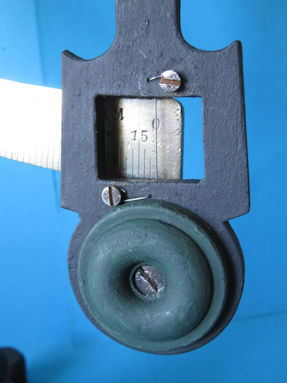

the reading wire is at zero grams

detail 9

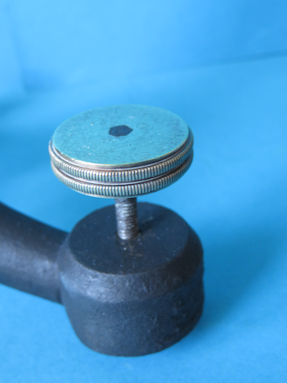

the zero adjustment screw

detail 10
the letter plate

detail 12
reattached with soft solder

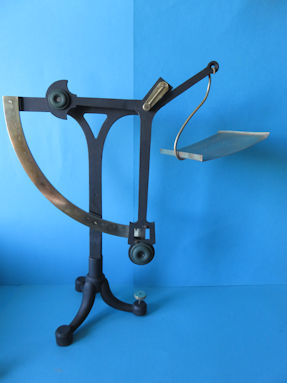

detail 11
the front of the letter scale

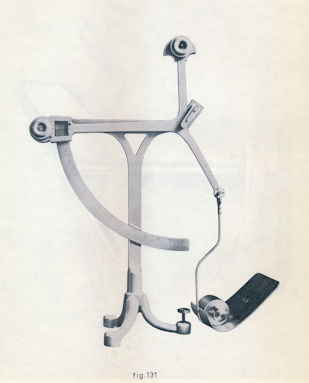

book image and my letter scale
animation: the letter scale of figure 131 from the book
Weegwerktuigen or my scale, both loaded with 1000g
[move the pointer over the photo]
detail 13
back of the letter scale
