KERN
150/13
precision scale

maker: Gottlieb Kern & Sohn, Ebingen, Germany
bruine lijn
precision scale, maker Kern

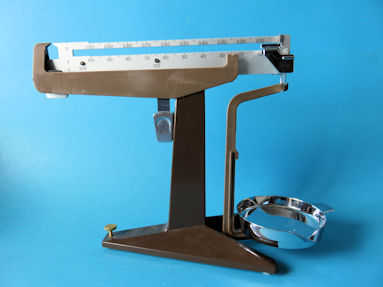

Kern precision scale


This precision scale was made by Gottlieb Kern & Sohn, from Ebingen in Germany. The scale has a maximum range of 301 grams. Without or with suspension of the movable weight, the weighing ranges are 101, 201 and 301 grams. The accuracy is 0.01 grams. The scale has a magnetic damping, which means that the weighing beam comes faster to an end position. The scale housing, dish and suspension bracket are made of plastic. The weighing beam is made of aluminum. The height is 23.5 cm. The width and largest length are 14 and 34 cm. This weighing beam can be read on both sides. At the bottom of the scale bracket is a compartment with balls with which the scale is calibrated. This precision scale is mentioned in the Kern catalogs from 1976 to 2006.
Below are some more images of this Kern precision scale.

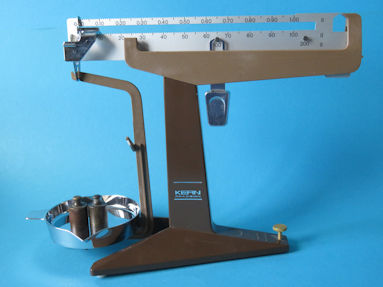

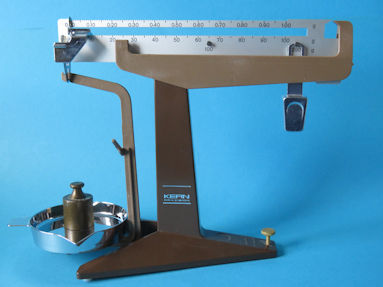

other side of the balance
other side of the balance

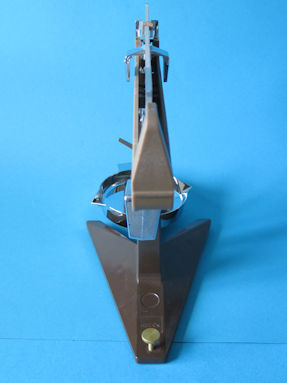

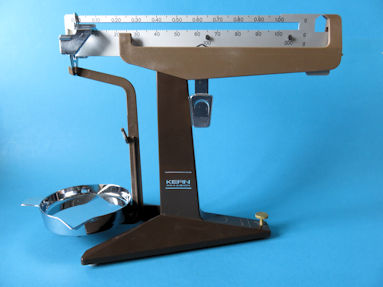

side view
side view

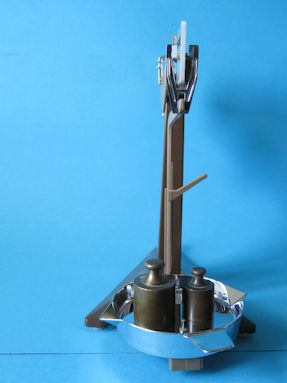

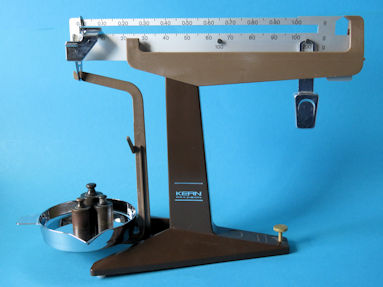

two times in balance
animation: equilibrium at 200 grams and at 300 grams
[move the pointer over the photo]

side view
side view



detail 1
the dish suspension and the main pivot of the balance

detail 2

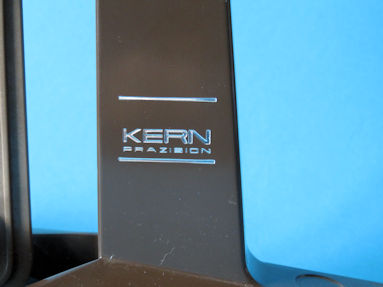

KERN PRAZISION

detail 3

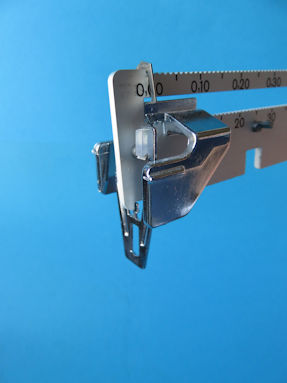

the two suspension points for the movable weight

detail 7
support surfaces for the main shaft

detail 4

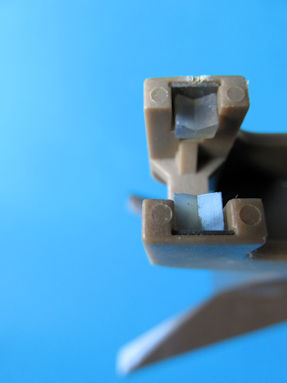

knife side of the main shaft

detail 9
the magnet of the magnetic damping

detail 8
equilibrium with 100 grams

detail 5
equilibrium with 200 grams

detail 6

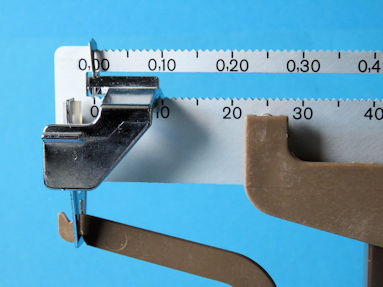

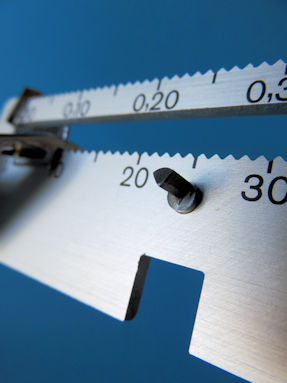

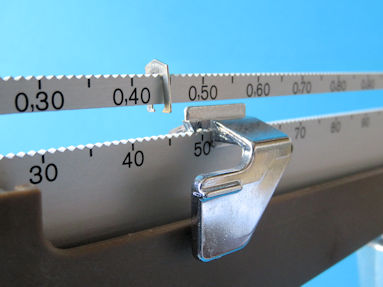

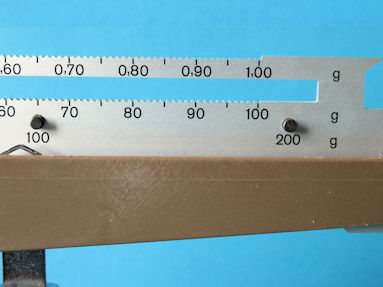

adjustable at the top per 0.01 gram and at the bottom per gram

detail 10
knife edge suspension dish bracket

detail 11

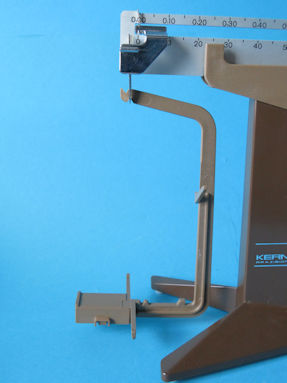

the dish bracket has a calibration compartment

detail 12

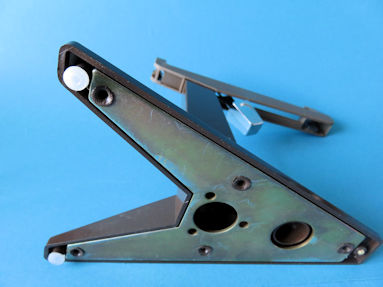

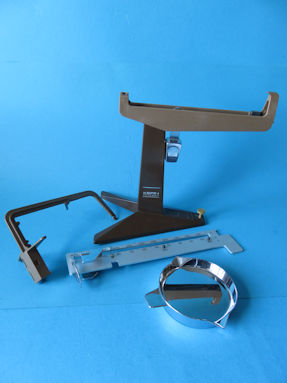

four disassembled parts

detail 13
the bottom is weighted with a metal plate

detail 14

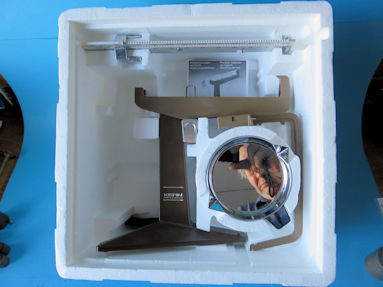

secured in the polystyrene packaging

detail 15
here with the polystyrene lid on it
