G.P.O.
letter scale

maker: De Grave, Short & Co. Ltd., London, England
bruine lijn

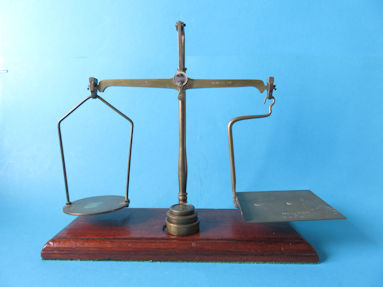

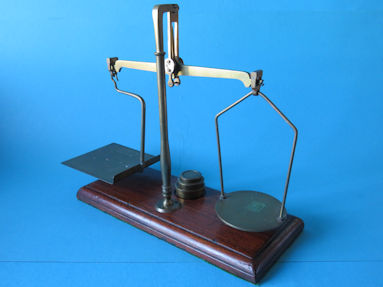

G.P.O. letter scale, maker De Grave, Short & Co.
G.P.O. letter scale, maker De Grave, Short & Co.


This balance for weighing letters was used in English post offices. The letters G.P.O. in the letter plate and in the recess for the weights on the mahogany base plate indicate this. G.P.O. stands for General Post Office. There are different versions of these letter scales. With stackable brass flat weights, weighing up to 8 oz, up to 1 Lb, 2 Lb or up to 4 Lb. With rectangular block weights up to 8 oz, up to 16 oz or up to 32 oz. weighing. Later there were also versions adapted to gram weights. The later versions were made at Arnold Precision Scales of Redhill in Surrey. There are also copies bearing one of the following names: FJ Thornton of Colchester, A E Sommers & Co (Scales) Ltd. of London, and WILTSHIRE SCALES Co. The size of the base plate is 28 x 11.5 centimeters. The balance is 24.7 cm high. My copy has 3 weights, probably some are missing. This balance is intended for weighing up to 8 ounces. The weighing sensitivity would be 1 grain = ±0.065 grams.


back of the balance
back of the balance


The company De Grave and Son existed from 1817 to 1844. The company then existed under the name De Grave, Short & Co. in 1845. Later, also in 1845, Fanner was added and it became De Grave, Short and Fanner. Fanner died in 1871. The firm again became De Grave, Short & Co. until 1922 when the firm was then taken over by Avery. {Internet source: Grace's Guide to British Industrial History]. Below some pictures of this G.P.O. balance.

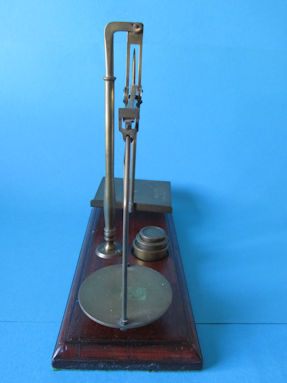

side view
side view


weger

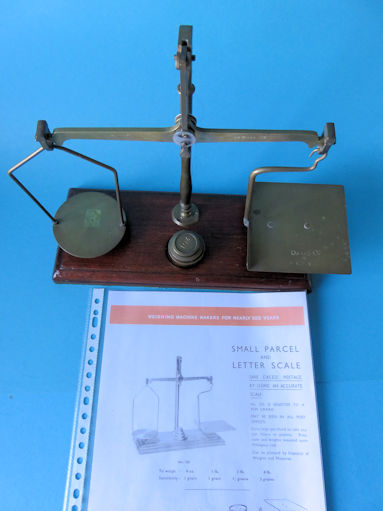

the balance and the catalog sheet in List No. 36 of De Grave, Short & Co.
on which this balance is described and depicted as No. 255

side view
side view


detail 1
the weights plate

detail 2

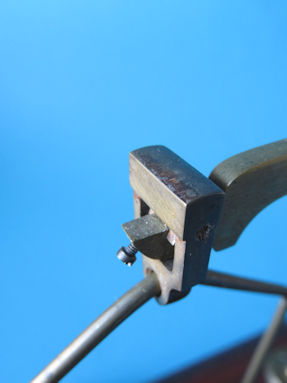

the knife-edge suspension of the weights plate

detail 3

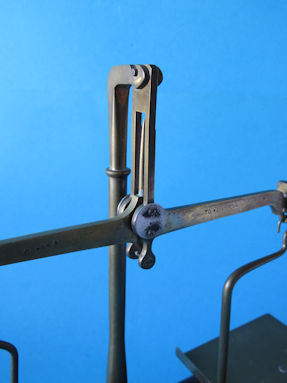

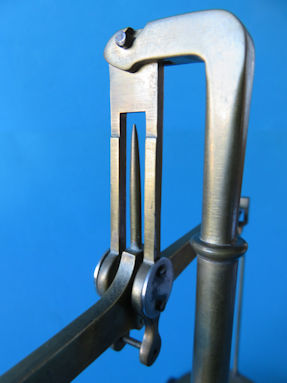

the needle indicates balance

detail 4

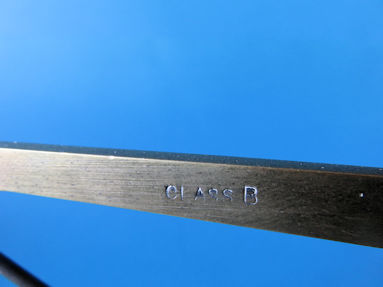

Class B

detail 5
suitable for up to 8 ounces

detail 6

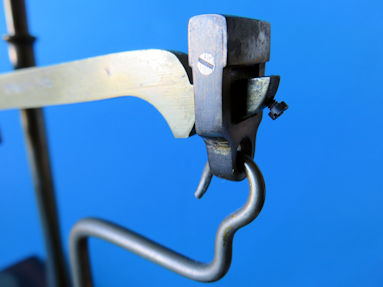

the knife-edge suspension of the letter plate

detail 7

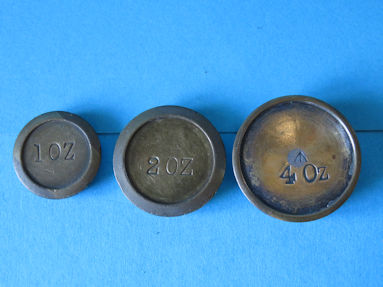

1 oz, 2 oz and 4 oz is together 7 oz, that is too little

detail 8

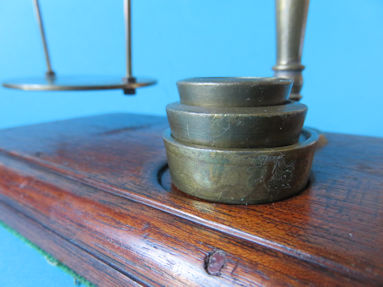

the stacked weights

detail 9

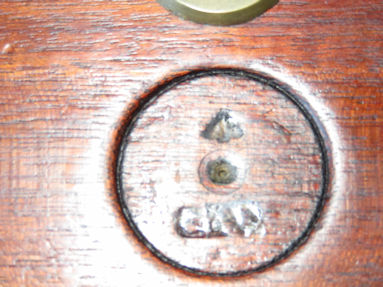

G.P.O. marking

detail 10
marking De G. S. Co. G.P.O. on the letter plate

detail 11
repair to suspension bracket letter plate

detail 12
piece of brass added at the bottom gives balance

knife-edge
knife-edge


suspension of the balance
animation: the balance is
suspended on the upright
[move the pointer over the photo]
knife-edge
knife-edge


detail 13
suspension weights plate is marked 20

detail 14
bottom of the weights plate

detail 15
suspension letter plate is marked 31

detail 16
the suspended balance is in equilibrium

detail 17

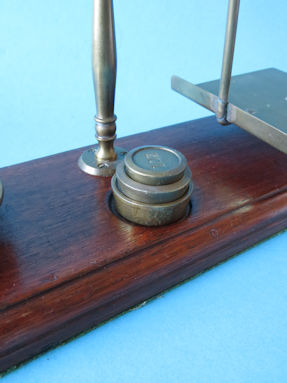

the three weights in the recess

detail 18

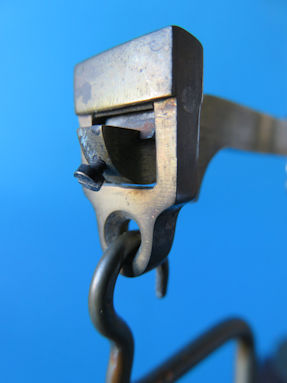

knife-edge suspension letter plate

detail 19
the G.P.O. balance

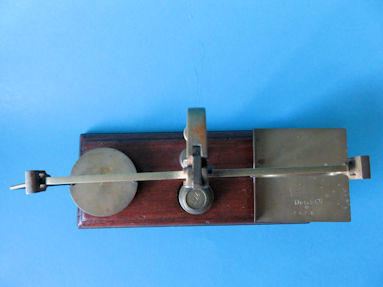

detail 20
seen from above

detail 21

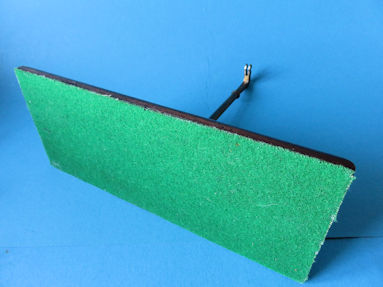

a recently applied felt underlayer
