letter scale
with decorative base

maker: unknown, Germany
bruine lijn

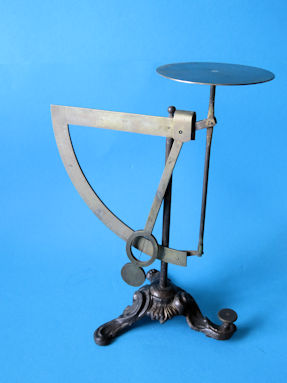

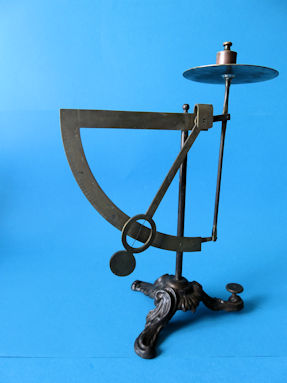

letter scale, maker unknown
letter scale


I do not know who made this letter scale. The scale probably comes from Germany. The letter scale stands on a gracefully curled foot. This decorative foot model has already been shown at another letter scale, see here. Both scales are at the bottom of this page. The combination of the counterweight with the oval reading window is very special. The weighing range is 250 grams. Up to 125 grams, each gram has a stripe of measure. Above that, there is a stripe of measure per five grams. The 125 grams was a postage limit in Sweden. This letter scale came with a rectangular letter tray, which did not seem the right shape to me. I therefore replaced the plateau with a homemade round one.
Below are some more images of this rare special letter scale.

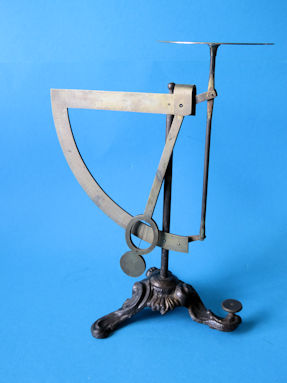

back of the scale
back of the letter scale

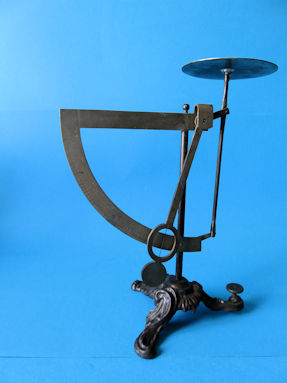

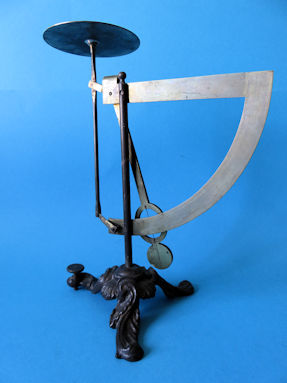

the unloaded scale
the unloaded scale


two different loads on the letter scale
animation: the scale loaded with 50 grams
or loaded at the max with 250 grams
[move the pointer over the photo]
the unloaded scale
the unloaded scale

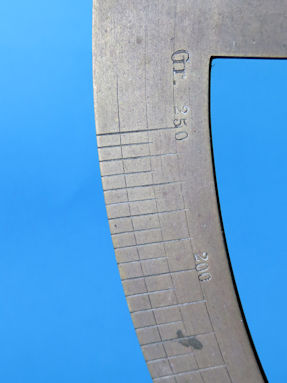

detail 1
the unit of measure Gr. and stripes per five grams

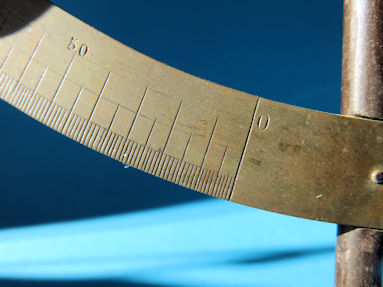

detail 2
up to 125 grams, each gram has a stripe of measure


detail 4

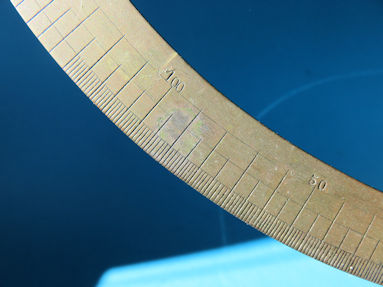

also extended stripes per five and ten grams
digits only at 0, 50, 100, 150, 200, and 250 grams

detail 5

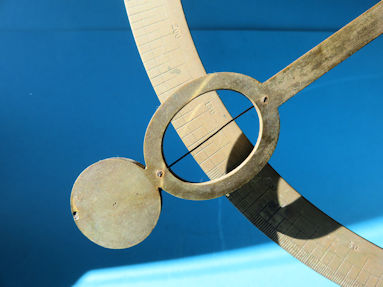

the oval window with reading wire

detail 3

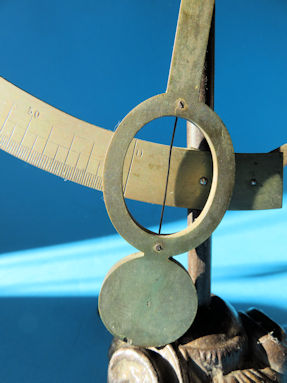

a somewhat strange combination of oval and round

detail 6

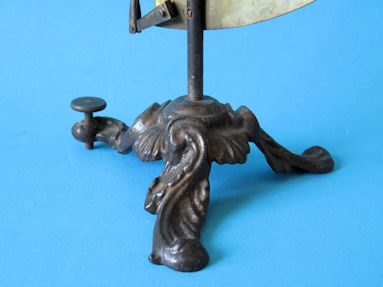

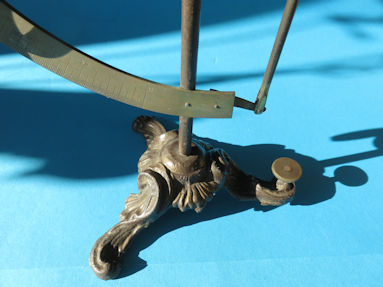

the decorative foot

detail 7

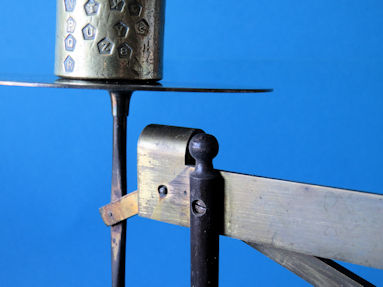

a folded frame at the main pivot

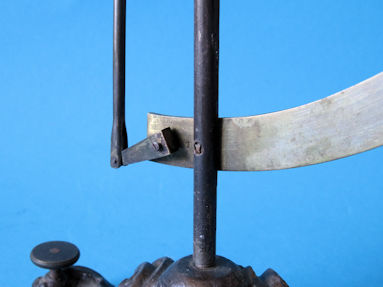

detail 8
the folded lower short lever

detail 9
two fixed and one adjustable support point

detail 7

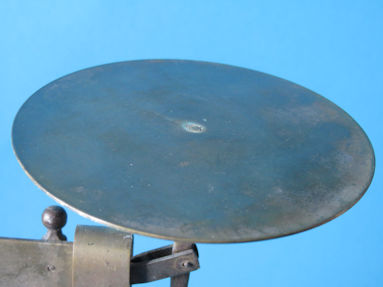

the replacement letter plate

detail 8

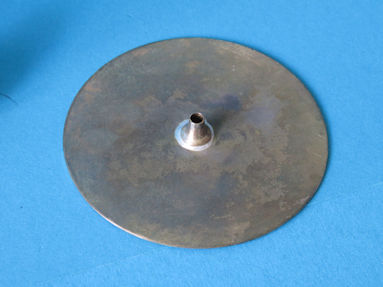

the round plateau with the mounting bush soldered on it

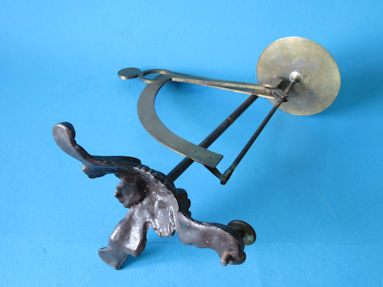

detail 9
the three-legged decorative foot from below

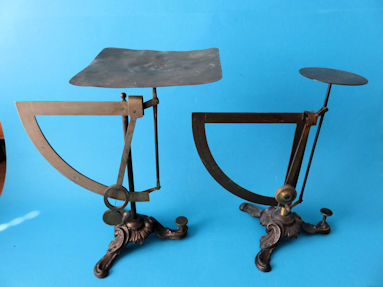

detail 7

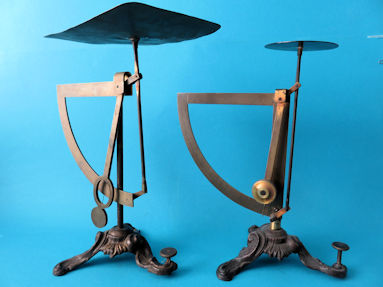

on the left the purchased letter scale still with the rectangular plateau
on the right the letter scale already shown, see here

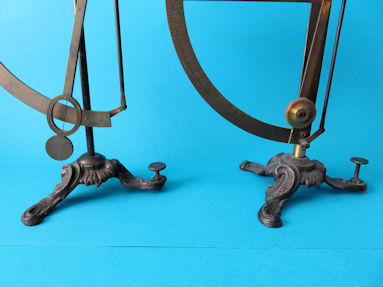

detail 8
both letter scales have the same decorative foot


detail 9
the scales differ on all parts, with the exception of the decorative foot
