postal balance, maker Ph.J. Maul

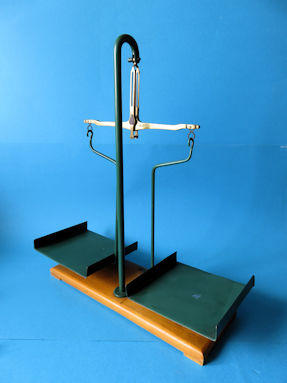

postal letter balance

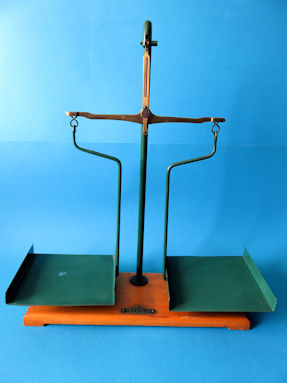

This postal balance was made by Philipp Jakob Maul from Hamburg in Germany. On the base plate is the beautiful brand plate of Ph.J. maul. On the balance arm is the M logo with the abbreviation D.R.G.M. In the catalog of Ph.J. Maul states that the balance is verifiable and is used, among other things, at German post offices. The balance shown here has calibration marks of the years 1955, 1956 and 1957. The banderole of a calibration office is also stamped in it. On the band itself are the letters DR (short for Deutsches Reich). Above it is 7, and below it is 2A. Which calibration office it concerns exactly is going too far here. The balance arm states that the scale is suitable for use up to a maximum of 2 kilograms. A set of weights had to be purchased separately. The balance has knife edge bearings. The green painted parts are made of magnetic steel. The balance arm is made of brass. The upright of the balance is a maximum of 39 cm high. The base plate measures 31 x 11.5 cm. The plate sizes are 13.5 x 13.0 cm.
Below are some more images of this well-made postal letter balance made by Ph.J. maul.

back of the scale
back of the scale

scale detail

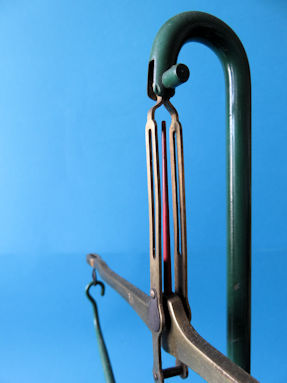

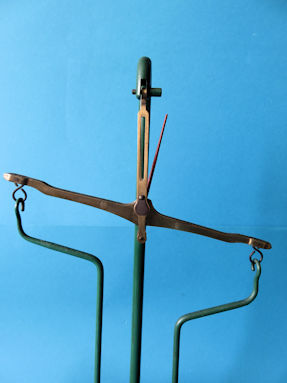

suspension of the balance and the red pointer


imbalance and balance
animation: unbalance and balance
[move the pointer over the photo]

scale detail
the shiny brass balance parts



detail 1

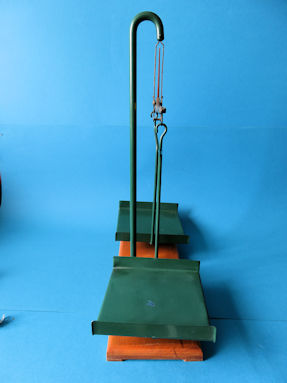

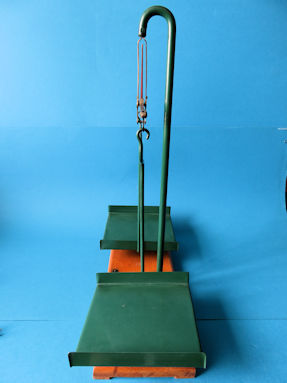

side view

detail 2

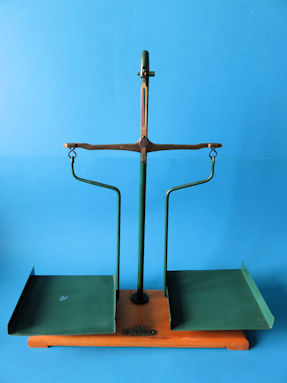

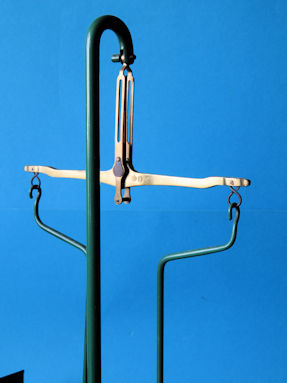

in balance

detail 3
side view

detail 4
knife edge bearing

detail 5

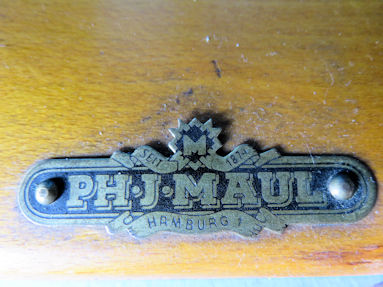

the beautiful Ph.J. Maul brand plate

detail 6
the M logo and below it the abbreviation D.R.G.M.

detail 7

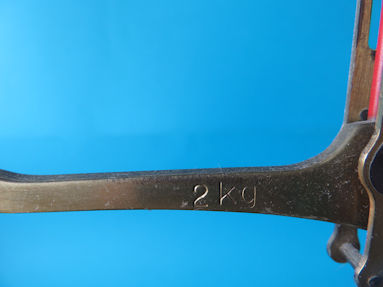

the weighing capacity is two kilograms


detail 8
the suspension on the upright


detail 9

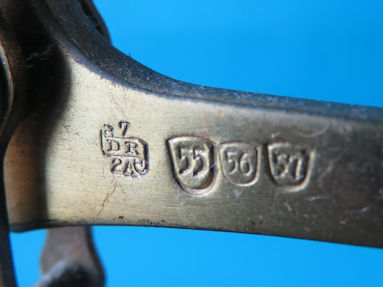

the calibration office mark and the calibration marks
of the years 1955, 1956 and 1957

detail 7

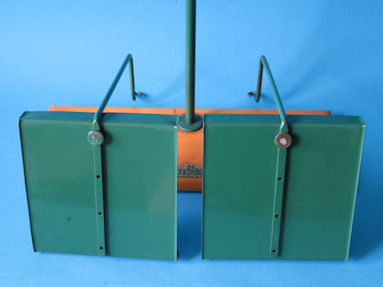

bottoms of the balance plates

detail 8

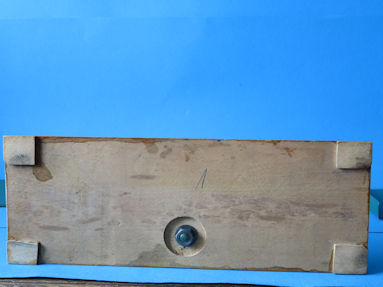

bottom of the base plate

detail 9

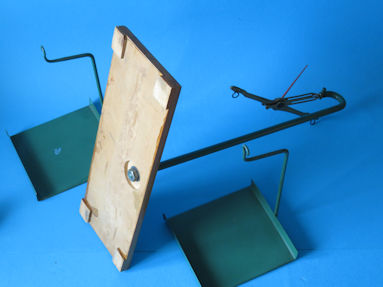

the parts of the postal letter balance
