CONVEX
letter scale

maker: Philipp Jakob Maul, Hamburg, Germany
bruine lijn
letter scale, maker Ph.J. Maul
Ph.J. Maul Convex letter scale

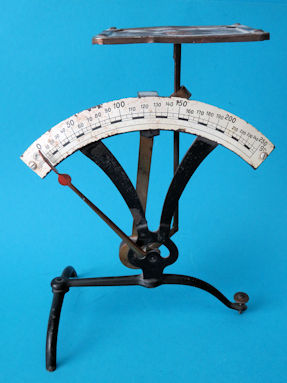

This letter scale was made by Philipp Jakob Maul from Hamburg in Germany. The measuring scale is arranged convex, i.e. arranged convex. Much more used is the concav scale, i.e. the concave scale. The letter plate is less visible in the field of view and hinders the reading of the scale less. The vertical frame part is the same with concav scales, but is of course mirrored horizontally. The letter plate has four slots, where a postage card can be inserted. Such a rate card is easy to exchange in the event of rate changes. I don't have that postage card. This scale goes up to 250 grams and the scale is subdivided per five and ten grams. The height of the scale is 21 cm, the foot measures 15 x 11.2 cm, the letter plate is 7.7 x 9.6 cm. The measurements scale is 16.6 cm wide.
Below some more images of this Convex letter scale.

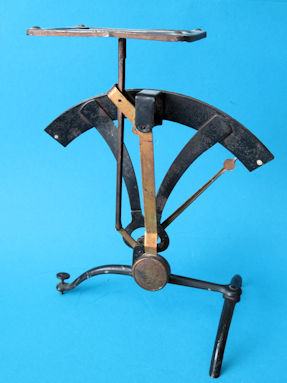

back of the letter scale
back of the letter scale

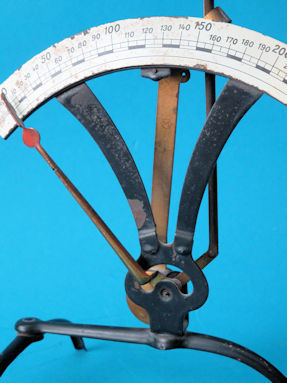

scale detail
the scale is tilted back slightly


detail
the scale is subdivided per five and per ten grams


scale detail
the weighing range is 250 grams

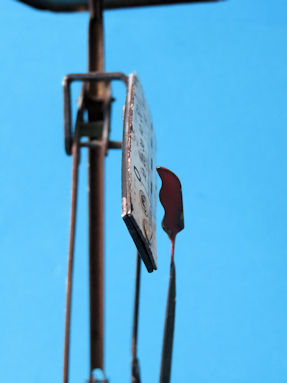

detail 1
good picture of the convex position of the scale

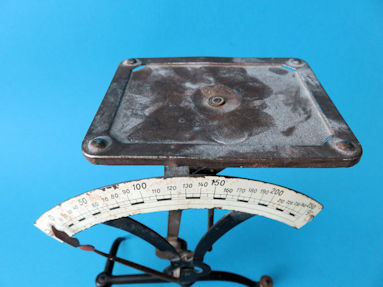

detail 2
the letter plate is quite dusty

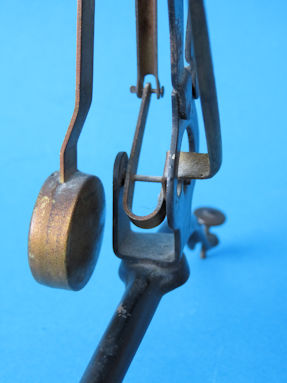

detail 3
detail with the counterweight

detail 4
back of letter scale

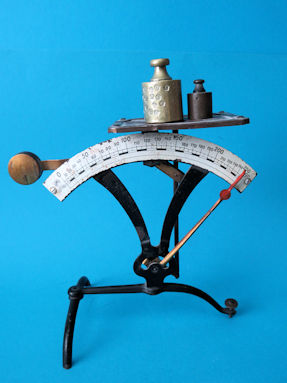

detail 5
loaded with 150 grams

detail 6
maximum load of 250 grams

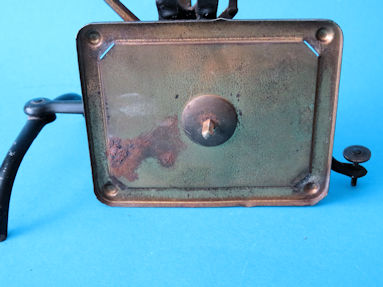

detail 7
the affected letter plate with postage card cutouts

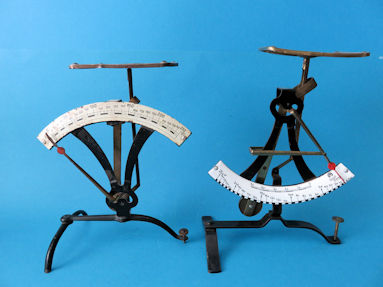

detail 8

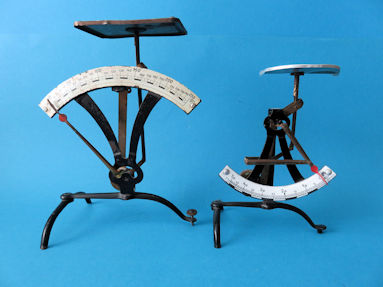

on the left a convex scale and on the right a concav scale
note that the frame is flipped horizontally

detail 9
on the left a convex scale and on the right a concav scale
note that the frame is flipped horizontally

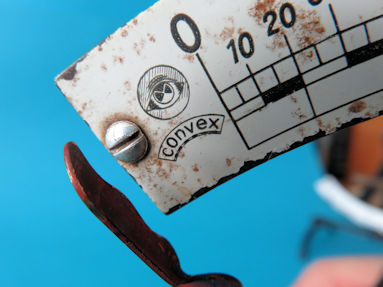

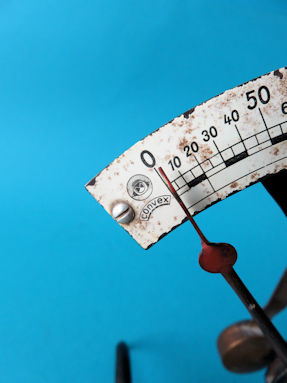

detail 10
the Convex logo

detail 11
the upside-down frame

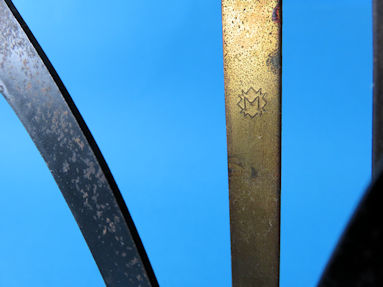

detail 12
the M logo of Ph.J. Maul is in the bar with the counterweight
