PESE-LETTRES
letter scale
RENÉ GUÉRIN

maker: René Guérin, Paris, France
bruine lijn
letter scale, maker René Guérin
the restored letter scale of Ren é Gu érin


With a lot of luck you will sometimes come across a really special letter scale on the internet and also from the shape of the letter scale you will immediately recognize the maker. Only the frame with the pointer part of this letter scale was offered on the website of a French antique shop. By the way, the dealer knew that it was design by René Guérin. René Guérin filed a patent application for 15 years on January 15, 1849. A patent was granted on March 9, 1849 and it was numbered FR7874. On March 21, 1849, a supplement was added to that patent. Some patent figures are further down this page.
I found two other copies on the internet. In Belgium an incomplete copy can be seen on the website of Erfgoedinzicht, see here. In France a complete copy was sold on the website of Aquitania-Memoria, see this webpage. There is a short video of this copy on Youtube with introductory French texts, see there. The realized letter scale differs in details from the patent figures.


back of the letter scale
back of the letter scale

scale

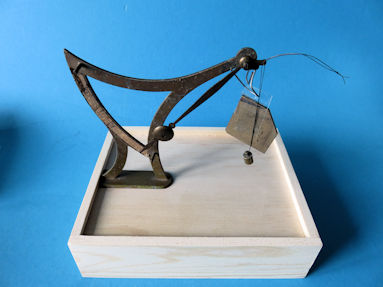

a quick determination of what weight sets the letter scale to zero grams,
which turns out to be 19 grams. The weight of the letter plate to be
made together with the suspension may not exceed 19 grams

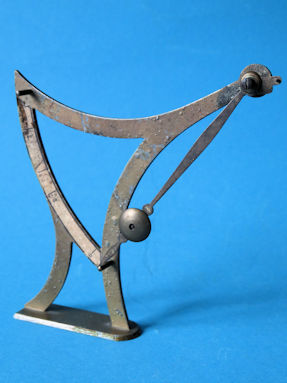

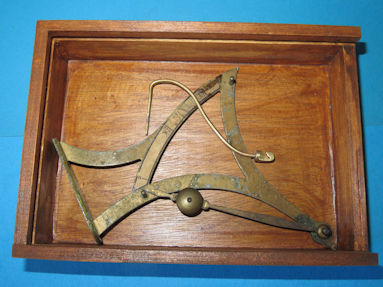

the scale part purchased
the purchased scale part


animation hanging up the letter plate
animation:
suspending the self-made letter plate sets the scale to zero
[move the pointer over the photo]


In old technical textbooks from the years 1851, 1855, 1856, 1865, 1870 and 1885 a drawing of the Guérin letter scale is depicted, mirrored or otherwise. In the magazine Equilibrium 1990 no.3, on page 1374, the FR7874 patent is briefly discussed. Also the magazine Le Système Métrique of 1997, on page 1115, pays attention to this patent FR7874.
After two months of waiting, the purchased scale part was finally delivered to me by PostNL (on behalf of Mondial Relay and via Hermes). My plan became to make this very old letter scale complete again. First of all, the weight that causes the letter scale to reach zero is determined. That's 19 grams. After some calculations, the thickness and diameter for the brass letter plate and the diameter and length for the brass suspension bracket were determined. I also roughly determined the dimensions for the suspension hook. It is still possible to add some extra weight at the bottom of the letter tray for fine tuning. A wooden box with an adapted (sliding) lid was also planned. A storage box is partly visible on the patent drawings. The purchased new box with sliding lid was a bit too big, I reduced the height and width by sawing. The parts are then rejoined with wood glue. An extra plank with a recess cut to size is glued to the lid. The scale foot should be slid into this recess when setting up the letter scale. It fits just right. The scale frame with the rotatably attached pointer, the detached suspension bracket and the separate letter plate fit in the box, see photos below. The box has been treated with dark oak wood stain a few times.
The scale of my copy is made of glued-on paper. The scale values in grams indicate the French letter rate. The first printed weight limit of 7½ grams and 20 centimes has been crossed out. As of January 1, 1862, that first letter post weight limit was raised to 10 grams and 20 centimes. The letter post weight limit of 15 grams was also replaced by 20 grams. That weight limit does not fit on this letter scale. The paper scale shows 40 centimes at 15 grams. Above it is an arrow pointing up and the value 80 centimes. This is barely readable due to the leaked glue. That was the rate from 15 grams to 100 grams in the period July 1, 1854 to January 1, 1862. This copy was therefore probably purchased somewhere in that period and the measurement scale was adjusted to the new postal rate after 1 January 1862. That postal rate remained valid until January 1, 1871.
The measurement scale of the specimen in France is painted and has the values: 0, 7½ and 15, without a gram indication, and still readable between 7½ and 15 the rate of 40 centimes. That was the letter rate from January 1, 1849 to January 1, 1850 and again from July 1, 1854 to January 1, 1862. That copy is from 1849 or from the period 1854-1862.
The measurement scale of the scale in Belgium only shows the values: 0, 10 and 20, without a gram indication and without postage. This copy is from after January 1, 1862. This measurement scale is also painted.
The two copies on the internet have a letter tray in which reinforcement circles and also texts are pressed, it looks like embossing.

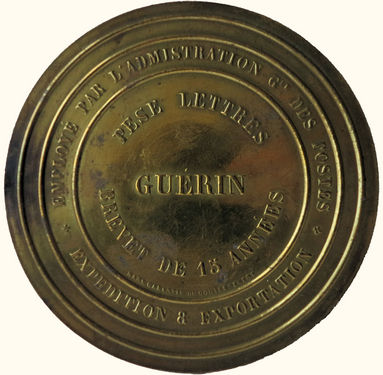

The text outside the inner circle on the letter plate in France:
* EMPLOYÉ PAR L'ADMINISTRATION CIE DES POSTES *
FABQUE 66. R. DES MARAIS ST MARTIN A PARIS
The text inside the inner circle:
PESE LETTRES GUÉRIN BREVET DE 15 ANNÉES
and with much smaller letters:
SANS GARANTIE DU GOUVERNEMENT

The text outside the inner circle on the letter plate in Belgium:
* EMPLOYÉ PAR L'ADMINISTRATION CIE DES POSTES *
EXPEDITION & EXPORTATION
The text inside the inner circle:
PESE LETTRES GUÉRIN BREVET DE 15 ANNÉES
and with much smaller letters:
SANS GARANTIE DU GOUVERNEMENT

detail 1

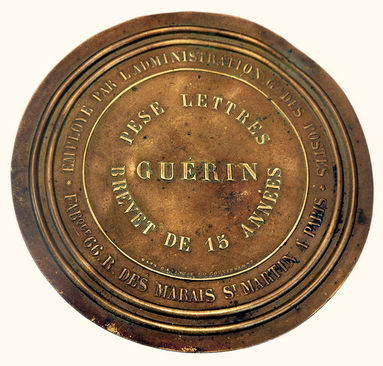

the letter plate of the letter scale in France
[source and can be found at Aquitania-Memoria]

detail 2
the letter plate of the letter scale in Belgium
[source and can be found at Erfgoedinzicht.be]

detail 3
the two letter plates printed on paper

detail 4
on the left the letter plate seen in Belgium, on the right the letter plate seen in France

detail 5

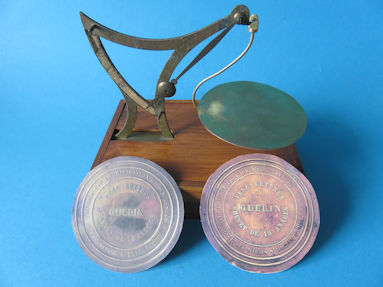

the two letter plates printed on paper

detail 6

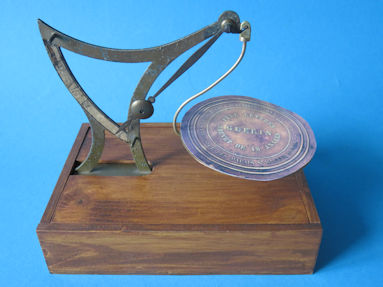

the paper French letter plate placed on my brass letter plate

detail 7

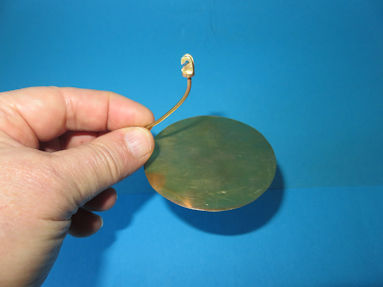

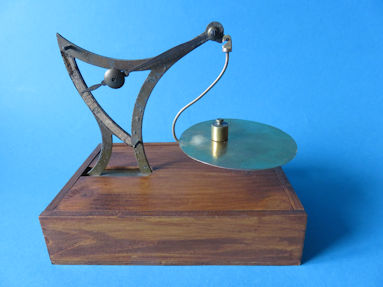

merely my homemade brass letter plate

detail 8

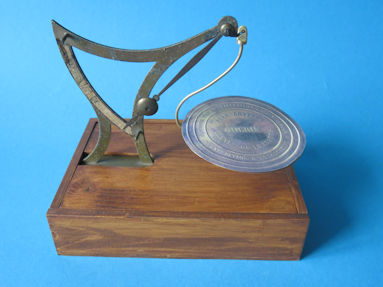

the paper Belgian letter plate placed on my brass letter plate

detail 9

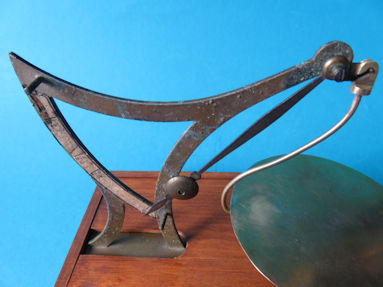

the scale has stops at the beginning and end of the scale

detail 10
the top stop is clearly visible on the left

detail 11

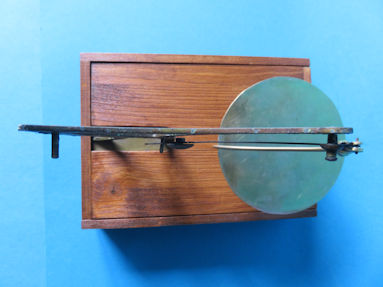

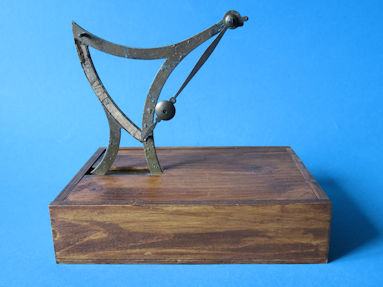

the letter scale mounted on top of the storage box is ready for weighing

detail 12

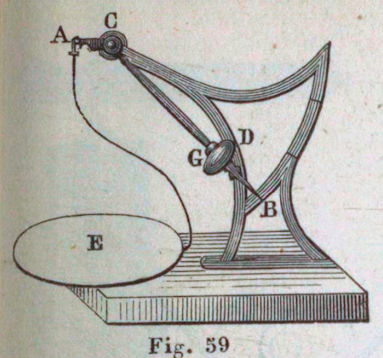

figure from the book Cours Elementaire de Mechanique from 1851
N.B. the scale foot is in the wood surface

detail 13

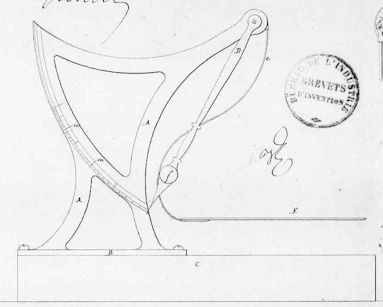

figure from patent application FR7874 of January 13, 1849
N.B. here the letter scale is screwed to the wood

detail 14

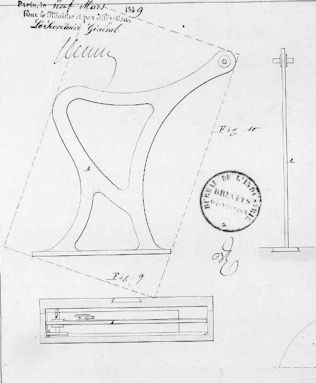

figure from patent FR7874 of March 9, 1849
N.B. the tilted rectangle is the inside measurement of the box
below this is a cross-section of the box

detail 15
as depicted in the Physics book for children:
Slinger en Magneet in dienst van den Mensch from 1865



detail 16
image with the scale foot
on top of the wooden base plate



detail 17
image from a physics book from 1885 with the
scale foot screwed to the wooden base plate



detail 18
image from an 1855
mechanics book with the title: allereerste gronden
der practische en theoretische mechanica
this image is similar to the one from 1851


Below more images of this special letter scale by René Guérin.
detail 19
the top plank on the sliding lid is quite thick

detail 20

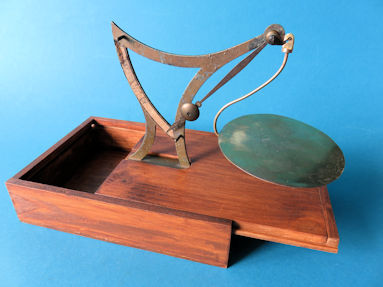

the sliding cover rests in the grooves

detail 21
the thickness of the top plank on the sliding lid is clearly visible

detail 22

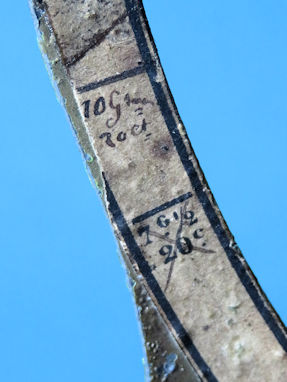

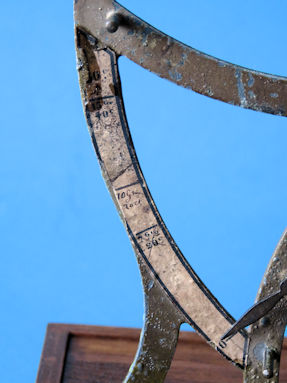

the glued-on paper measuring scale only has
stripes at 0, 7½, 10, and 15 grams


detail 23
the crossed out value of 7½ grams
and the added value at 10 grams

detail 24

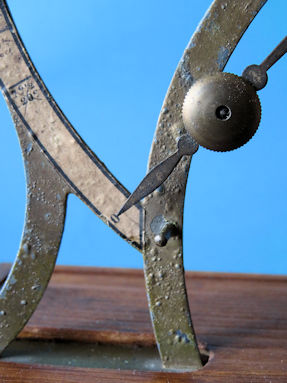

the pointer with the counterweight on the arm
is exactly at zero grams here

detail 25
the Guérin letter scale is in this box

detail 26

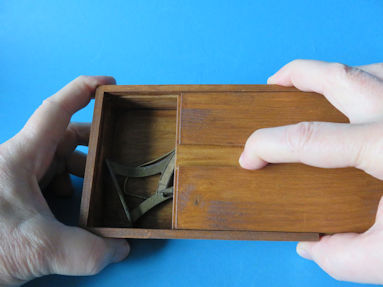

sliding the lid open requires the use of both hands
make use of the recess

detail 27
the lid can be slid off completely
this is not really necessary for mounting the scale base

detail 28

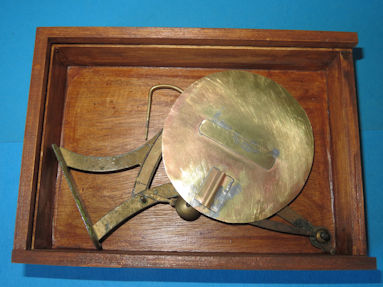

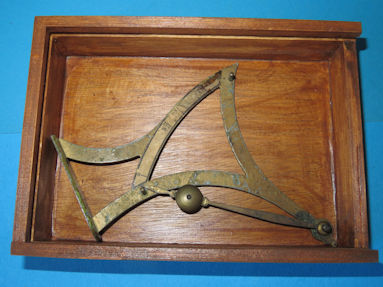

the three scale parts are stored in it

detail 29
the letter plate was removed first
the suspension bracket follows

detail 30
the scale frame with the rotatably attached pointer
fits nicely in the box

detail 31

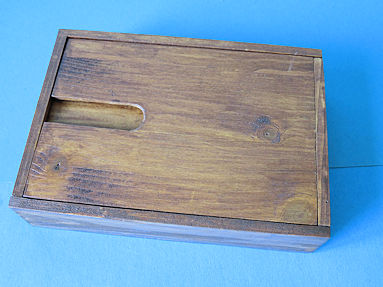

now slide the scale foot into the recess on the lid

detail 32
the scale foot is now mounted in the lid

detail 33
then the lid can be closed again

detail 34

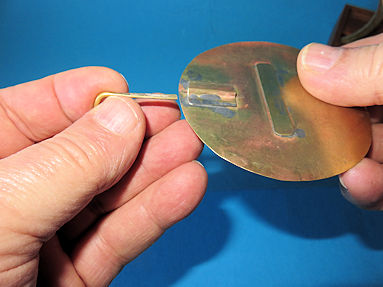

then slide the suspension bracket into the tunnel at the bottom of the letter plate

detail 35
the letter plate is thus connected to the suspension bracket

detail 36
hanging this on the scale part requires precision
because it is a very small suspension shaft and a small slot

detail 37

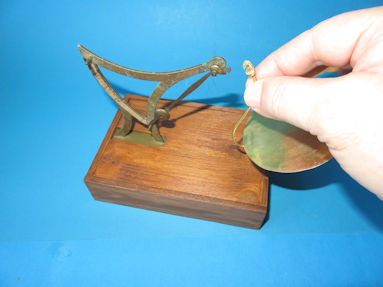

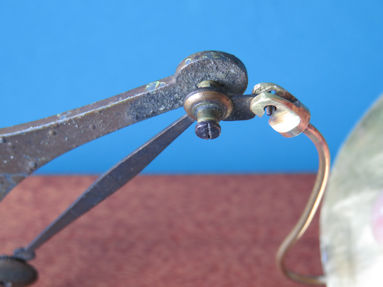

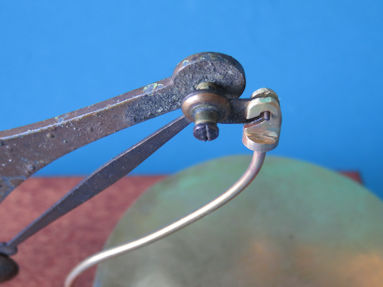

the scale rotation axis and the very small suspension shaft

detail 38
connecting the suspension bracket to the small suspension shaft

detail 39
the suspension bracket now hangs properly on the axle

detail 40
the Guérin letter scale is ready for use and is at rest at zero

detail 41
here the Guérin letter scale is loaded with 10 grams

detail 42
here a load of 15 grams is on the Guérin letter scale

detail 43

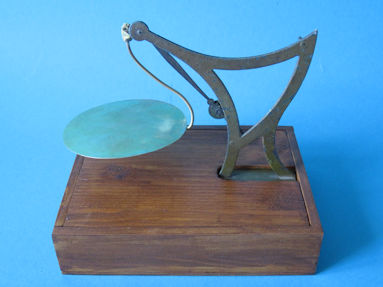

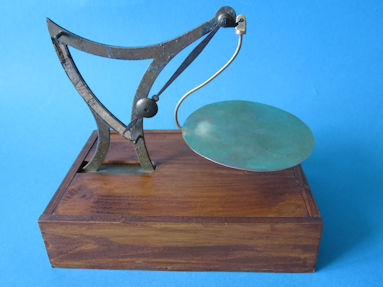

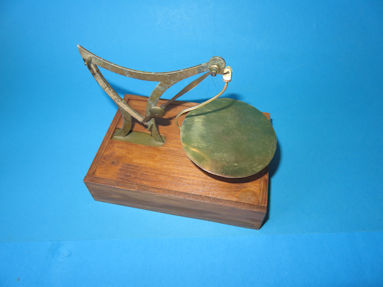

the Guérin letter scale on the self-made box with sliding lid


detail 43

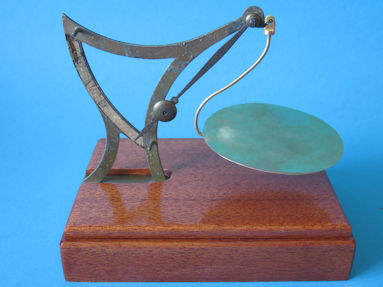

the Guérin letter scale mounted on an also self-made hardwood
box with overlay lid
