ARCA
10 Kg
letter and parcel scale

maker: Jakob Maul, Bad-König-Zell, Germany
bruine lijn
letter and parcel scale, maker Jakob Maul

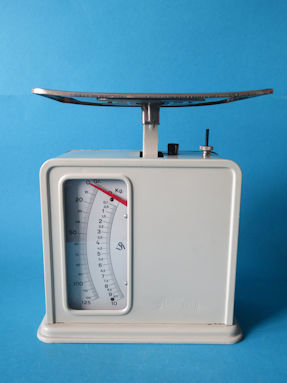

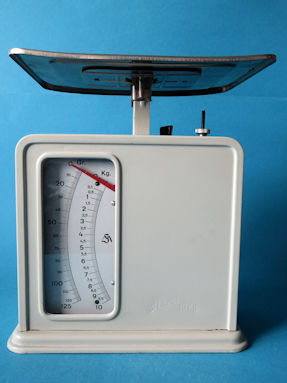

Arca letter and parcel scale, maker Jakob Maul


This is the largest Arca scale made by Jakob Maul from Bad-König-Zell in Germany. This version is in a catalog from about 1980. It is a letter scale combined with a parcel scale. To switch from letter to parcel function, there is a pull switch on top of the scale housing. There is also the rotary knob to set the letter scale to zero. The letter measuring scale goes up to 125 grams and has a stripe of measure for each gram. The parcel measuring scale starts with stripes at 0.1 kg and goes up to 10 kilograms and has a stripe per 100 grams. On the dial is the JM logo by Jakob Maul. At the front of the metal scale house is pressed: Arca 10 kg. On the back of the scale house it says: NOT FOR TRADE PURPOSES. The scale mechanism has, see the photos, two tension springs, for the parcel function the heavy spring must be tightened with the pull switch. The photos show the mechanism sufficiently. The nickel-plated letter platform is 17.5 by 12.5 centimeters. The scale is 20.5 cm high. The base measures 18.0 by 10.0 cm.
Below are more images of the largest Arca letter and parcel scale with a range of 10 kilos.




achterzijde weger

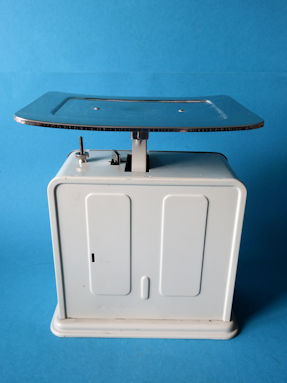

back of this Arca scale

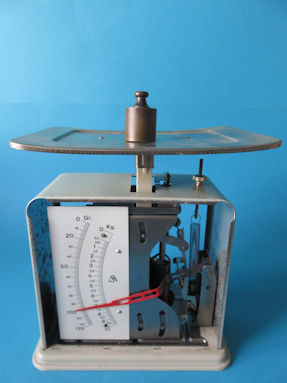

without and with 100 grams
animation: 100 grams in the letter function
[move the pointer over the photo]

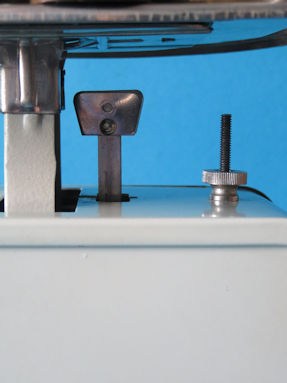

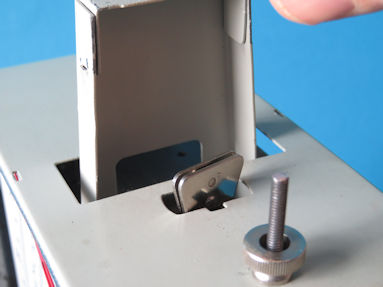

the two positions of the pull switch
animation: the two positions of the pull switch
[move the pointer over the photo]

different loads in parcel function
animation: different loads in parcel function
[move the pointer over the photo]


detail 1

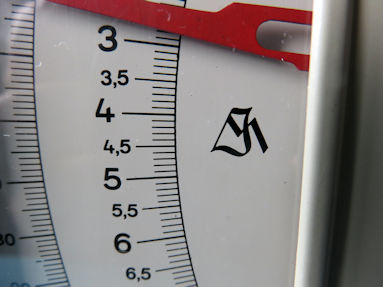

the JM logo and stripes per 100 grams on the parcel scale

detail 2

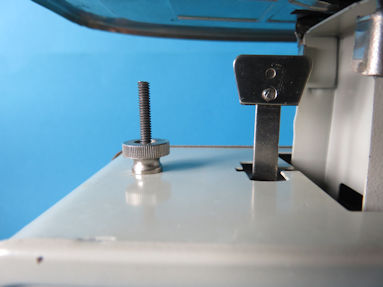

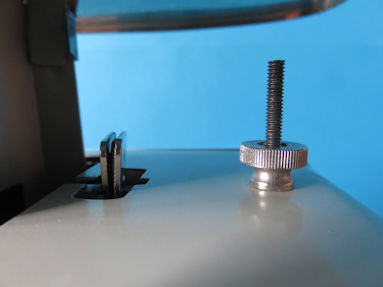

the pull switch next to the zero adjustment knob

detail 3
Arca 10 kg is at the front of the scale house

detail 4

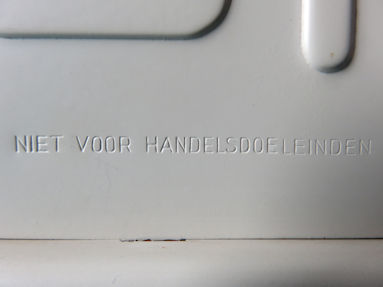

on the back of the scale house it says
NIET VOOR HANDELSDOELEINDEN
Dutch meaning: NOT FOR TRADING PURPOSES

detail 5
on the left the adjusting knob for the spring of the 125 grams range
on the right the pull switch is in parcel function


detail 6
on the left the pull switch is in the deactivated parcel function
on the right the adjusting knob for the spring of the 125 grams letter range


detail 7
front and back are disassembled

the two positions of the pull switch
animation: the two positions of the pull switch
[move the pointer over the photo]

detail 9

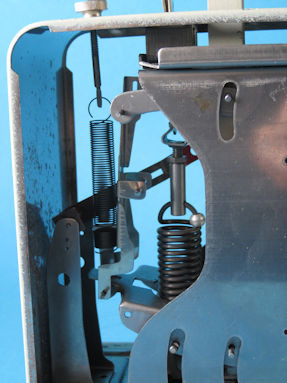

view of the two tension springs

two positions in the letter weighing range
animation: from 100 to 125 grams in the letter range
[move the pointer over the photo]

detail 10

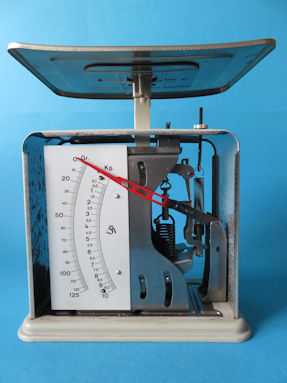

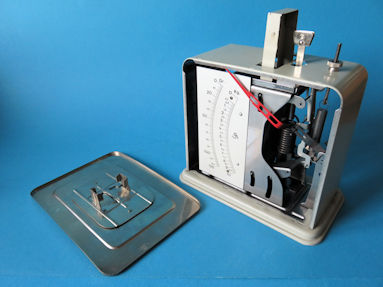

the scale with the large plate taken off

two positions of the pull switch
animation: the two positions of the pull switch
[move the pointer over the photo]

detail 11
outside of the front, the viewing window is
covered with a plate of transparent plastic

detail 12
outside of the back

detail 13
outside of the bottom
it is cardboard with hard foam layer

detail 14
inside of the front with some rust

detail 15
inside of the back with some rust

detail 16

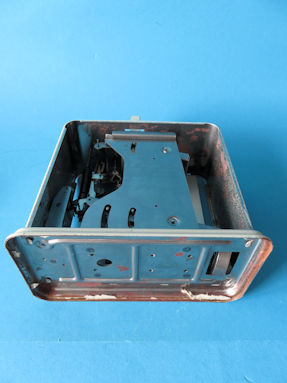

inside bottom, with glue residues on the edge

detail 17
metal bottom of the scale with some rust and glue and cardboard residues

detail 18
there is also some rust on the top and on the sides

detail 19

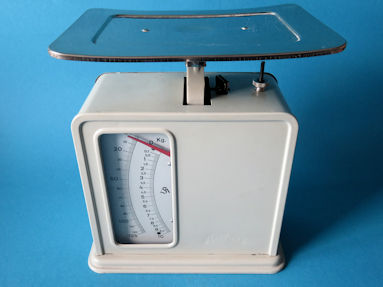

the completely reassembled 10 kilo Arca letter and parcel scale
