letter scale
with counterweight sphere

maker: unknown, Germany
bruine lijn
letter scale, maker unknown
letter scale with counterweight sphere


The maker of this letter scale is unknown to me, there is no logo or name on it. Only on the underside of both cast iron frame parts the number 2 is cast. The scale probably comes from Germany, probably Ph.J. Maul is the maker because the frame still has the characteristic copper-colored zones on the cast iron frame, which are still very vaguely visible. The measuring scale is nickel-plated. It is striking that this measuring scale and the two strips are made from one plate, the upper short arm of the parallelogram is also part of the same plate. Usually the measuring scale is fastened with rivets to loose strips of the weighing mechanism. The 150 gram scale has a stripe of measure for every five grams. The spherical counterweight is striking. This weighing mechanism has already been shown on this website, see here, that letter scale stands on a round wooden decorative base.
The scale height is 19.5 centimeters, the letter plate is 7.5 cm round. The cast base is 11.0 cm long and 6.5 cm wide.
Below are some more images of this letter scale with counterweight ball.

back of the letter scale
back of the letter scale

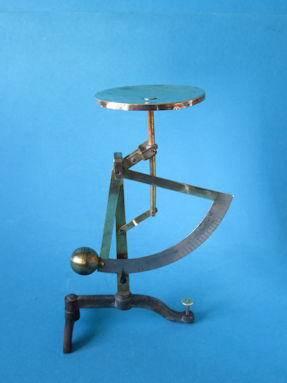

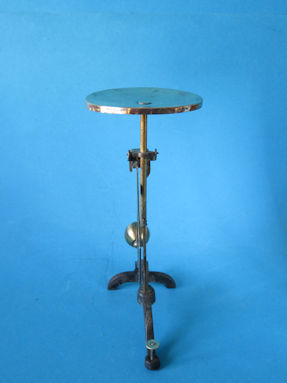

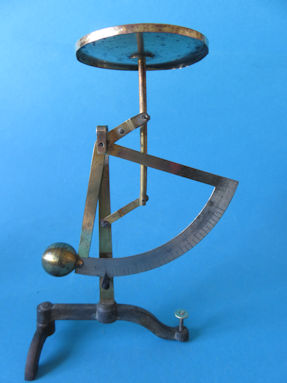

side view
side view

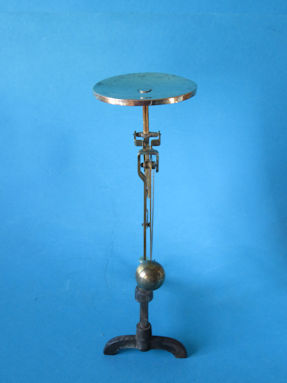

the letter scale from the front
the letter scale from the front

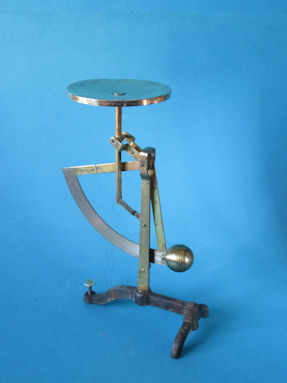

side view
side view



detail 1

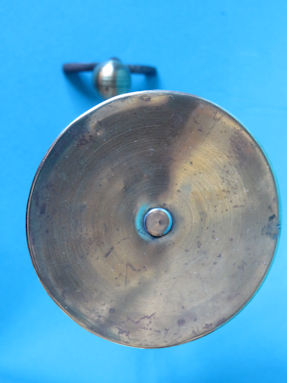

the letter plate

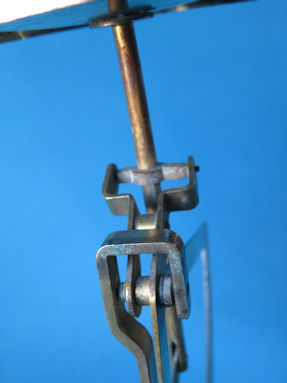

detail 2

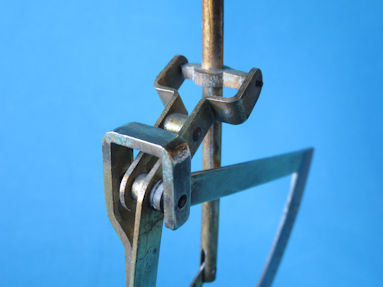

solidly constructed

detail 3
a thick sturdy upright

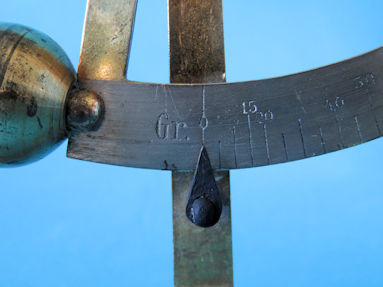

detail 4
abbreviation of unit of measurement Gr. and 15 grams is indicated extra

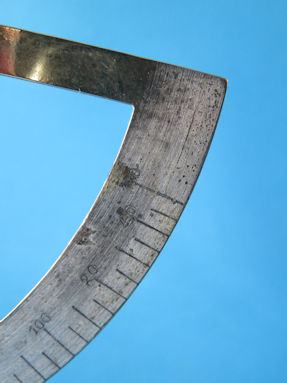

detail 5
stripes per five grams up to one hundred and fifty grams

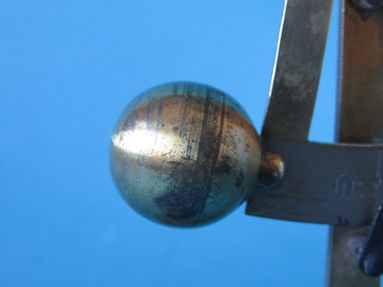

detail 6
the counterweight is a sphere

detail 7
a solid cast-iron base

detail 8

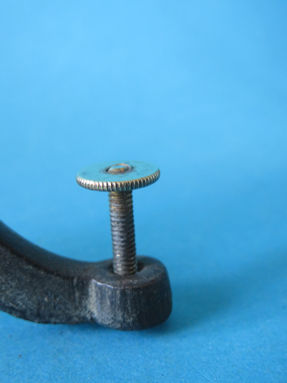

the zero setting screw

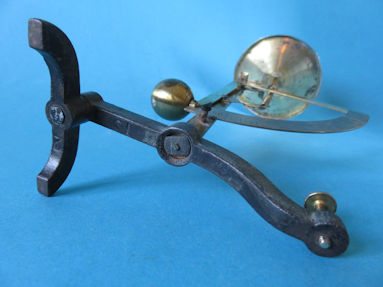

detail 9
both cast parts are marked on the bottom with the number 2
