letter scale
on decorative base

mechanism of the letter scale: unknown maker, Germany
maker of the decorative base: Foundry Ernst Georg Zimmermann from Hanau, Germany
bruine lijn

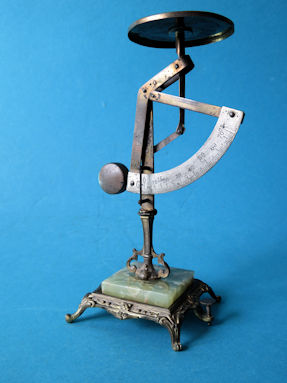

letter scale, unknown maker
letter scale on decorative base


This letter scale probably originates from Germany. However, the decorative base looks very French, compare this scale base with the base of this scale. On the bottom of the cast base is the number 748, the word DÉPOSÉ, which suggests a protection, and a not too sharp logo. Presumably that is the logo of the Ernst Georg Zimmermann foundry from Hanau in Germany. On more readable logos the pennant text Carpe Diem [= Seize the Day] can be read, see both logos further on this page. The foundry of E.G. Zimmermann started in 1840 or 1842, and stopped in 1966, or only in 2011. Internet sources contradict each other. On the cast frame with graceful feet on the four corners lies a square marble tile of 43.5 x 42.6 millimeters. On this is mounted a cast stand on which a brass letter scale is screwed. The letter scale part could come from Philipp Jakob Maul. In the middle right the scale base has a zero adjustment screw. The letter scale weighs up to 75 grams and has stripes of measure per gram. The value 15 is stated separately. The measurement scale is made of nickel-plated brass.
The scale height is 26.0 centimeters, the scale base measured over the decorative feet is 71 - 73.5 - 70 and 75 millimeters, so not a true square. The diameter of the letter tray is 58 millimeters.
Below are some more images of this letter scale.

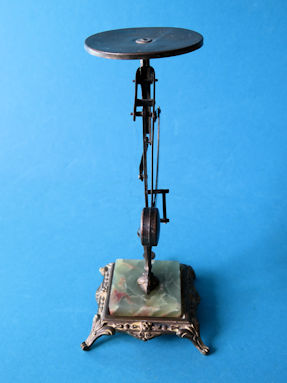

back of the letter scale
back of the letter scale

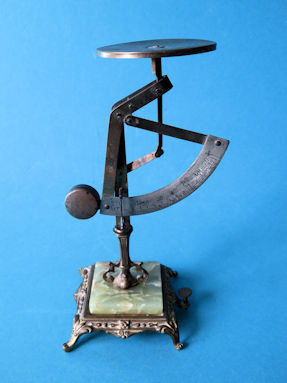

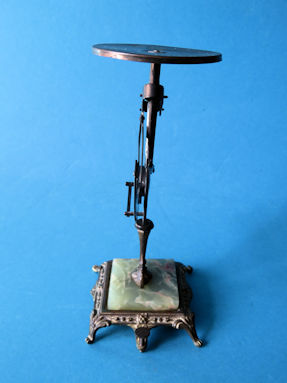

side view
side view

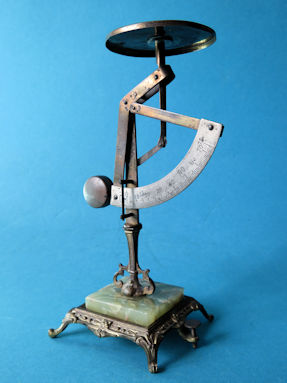

front
front

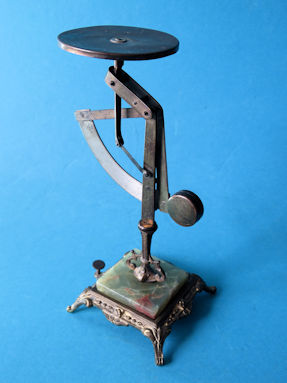

side view
side view



detail 1
the scale base has a graceful geometry

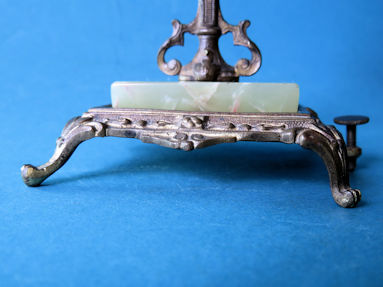

detail 2
the letter scale stands high on its legs

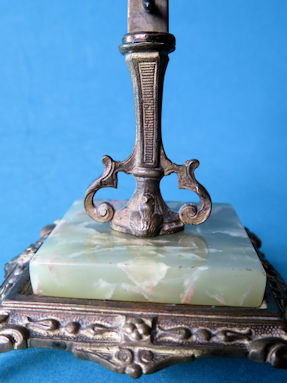

detail 3
with a shiny marble base

detail 4

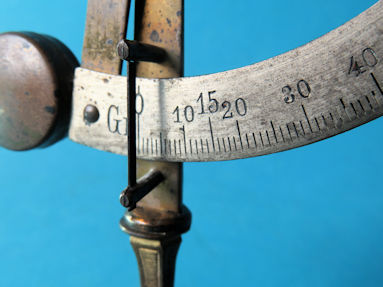

Gr. = gram, the 15 is indicated separately

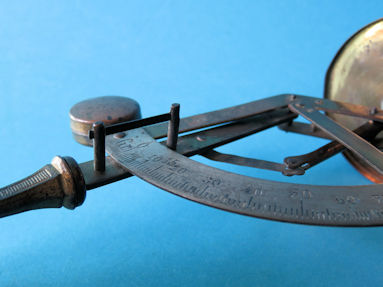

detail 5
the scale is read along the strip between the two pillars

detail 6

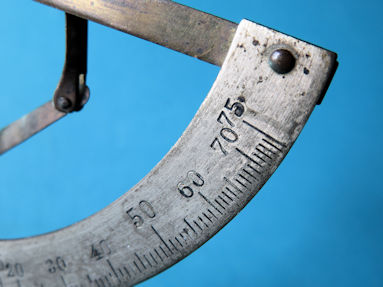

the weighing range is 75 grams

detail 7

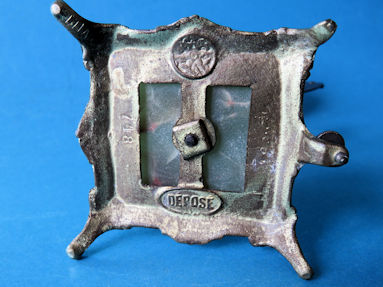

on the bottom there are various cast-in markings

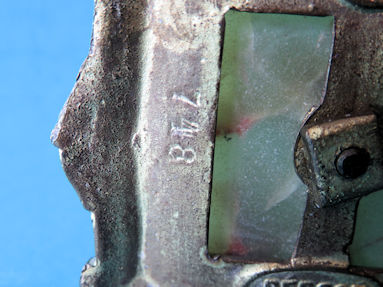

detail 8
numbered 748

detail 9

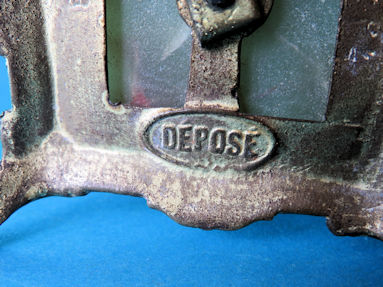

DÉPOSÉ suggests a protection

detail 10
Carpe Diem logo by E.G. Zimmermann
[with thanks to mikrolisk]

detail 11

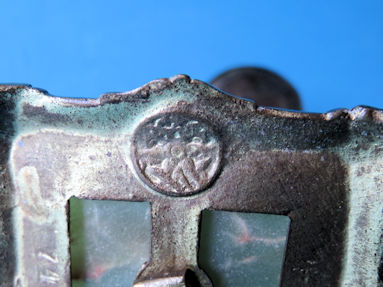

probably the logo of the foundry E.G. Zimmermann from Hanau

detail 12
slightly different Carpe Diem logo by E.G. Zimmermann
[with thanks to mikrolisk]

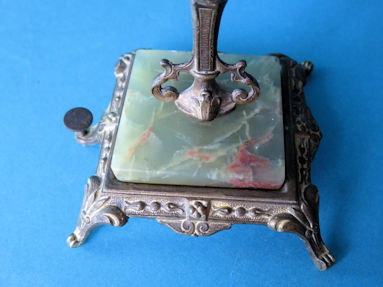

detail 13
the top of the decorative base

de nulstelschroef

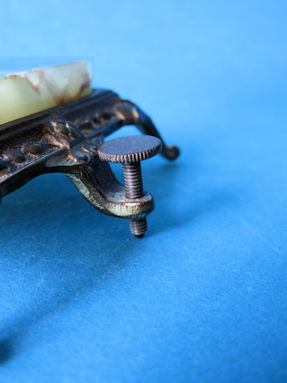

the zero adjustment screw


detail 14

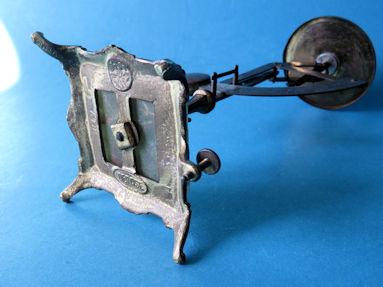

the decorative base seen from below
