The Incredible Egg Scale
JIFFY III
egg scale

maker: Fall Harvest Products, Manchaug, MA, U.S.A.
designer: Paul K. Boutiette, Manchaug, MA, U.S.A.
bruine lijn

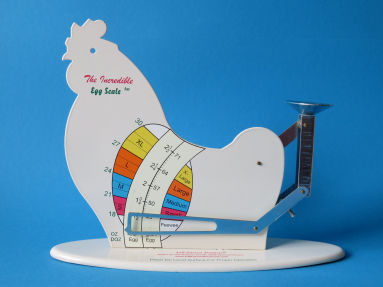

egg scale, maker Fall Harvest Products
The Incredible Egg Scale also named the Jiffy III egg scale


The design of this egg scale is made by Paul K. Boutiette from Manchaug in Massachusetts, U.S.A .. The design is protected with an American Design Patent US D569.751S on May 27, 2008. The patent application dates from May 18, 2007. The term of the patent is fourteen years. The nine patent figures represent the final egg scale well. Only the scale name stated on the patent drawings as Grade A Egg Scale has been changed to The Incredible Egg Scale. The egg scale is made for Fall Harvest Products. The distribution is done by other companies, for example by Kuhl Corporation and by Murray McMurray Hatchery. The brightly colored egg-shaped scale indicates the egg weights per piece and per dozen in ounces. In addition, there are five weight classes Peewee, Small, Medium, Large, and Extra Large. The indication for the Jumbo weight class is missing. The scale also indicates the egg weights in grams and in the European egg weight classes S, M, L and XL.

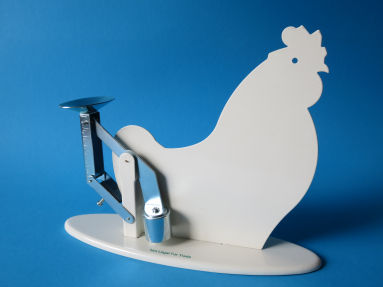

back of the egg scale
back of the egg scale


The scale must be placed as horizontally as possible. The egg scale has an adjusting screw in the lower short lever to limit the range of movement and to weigh faster if required. The color of this egg scale is off-white. There is also a blue version supplied by Kuhl, see bottom right on the Jiffy-Way page, and I also saw a red version on the internet.
Below some more images of this The Incredible egg scale.

egg scale

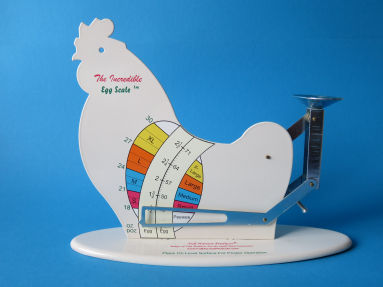

the egg scale with eggs


without and with an egg
animation: egg scale without and with egg
[move pointer over the photo]

egg scale

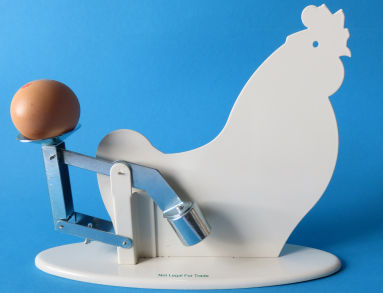

rear view of the egg scale with an egg


detail 2

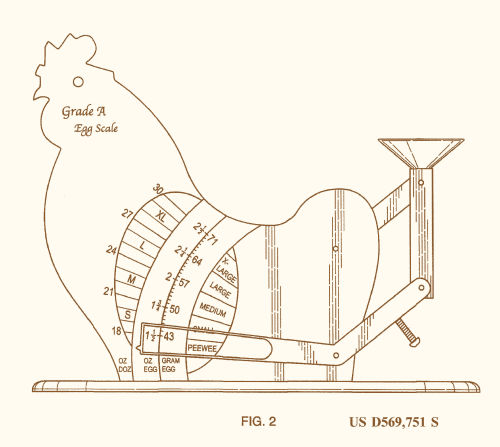

Grade A Egg Scale in figure 2 of US Patent No. D569,751S from 2008

detail 3

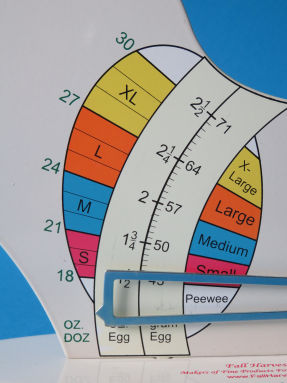

the brightly colored egg-shaped measuring scale

detail 4
the steel egg holder

detail 5
the lever mechanism

detail 6
egg holder with egg

detail 7
text on the front of the scale base

detail 8
the bottom shows the folded fastening tabs

detail 9
text on the back of the scale base

detail 10
front packing box

detail 11
back packing box

detail 12
detail The Incredible Egg Scale TM

detail 13
packaging box + two part polystyrene inner box

detail 14
the two polystyrene parts of the inner box

detail 15
weighing chicken taken from exactly fitting inner box

detail 16
box detail: the happy eggs choir

detail 17
the supplier: Fall Harvest Products

detail 18
box detail with production date May 2011 in China
