letter scale

maker: Jakob Maul, Germany
bruine lijn
letter scale, maker Jakob Maul, Germany
letter scale maker Jakob Maul, Germany


The housing of this letter scale has a beautiful front due to the pattern of stripes and the symmetrically placed window with the chart. This scale has a handle on the top of the housing for switching the range of weighing. As desired 100 or 250 grams. The chart of 100 grams has a stripe per each gram. The 250 grams chart is subdivided per five grams. The chart can be rotated with the knob situated at the right side of the house to adjust it to zero. This side also has the logo JM. This letter scale was protected by a Deutsches Reich Patent with number 676942; it was granted on December 25 1937. It mentions Dipl.Ing. Fritz Scharmann as the inventor. The patent was announced on May 25 1939 and was published June 15 1939. Earlier a brown version was presented at this website. A version in black also exists. This pattern of ornamental stripes is also used on one of the Macito-models. Below some more pictures of this letter scale.





rear of the scale
rear of the scale


letter scale
handle for switching weighing range
visible under the top plate
the two positions of the handle
animation: the two positions
of the handle
indication at the scale housing
a 100 grams or 250 grams
weighing range
detail 1
the double pointer

detail 2
symmetrical window

detail 3
weighing ranges 100 and 250 grams

detail 2
above stripe of measure per gram
below stripe of measure per five grams
detail 1
symmetrically placed striping

detail 3
Jakob Maul logo

detail 1

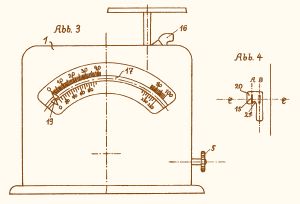

figures of the German
patent with number 676942

detail 3
figures of the German
patent with number 676942

detail 4
folded tabs connect the house and basis

detail 5
furniture protecting layer on bottom

detail 6
furniture protecting layer on bottom

detail 7
the house next to the mechanism

detail 8
the letter scale mechanism

detail 9
the leveling mechanism

detail 7
the house

detail 8
the scale without front and back plate

detail 9
leveling knob down right
