letter scale

maker: unknown
France
bruine lijn
letter scale, unknown maker
letter scale from France


This letter scale is from France. In a catalog from the period 1920/1930 of Allain, from Elbeuf-sur-Seine in France, this letter scale is shown and described. On the bottom of its wooden base the specimen photographed has a tab of this company Allain bearing the article number 2392. The number also appears in the catalog. This is a nickel-plated brass letter scale, has an engraved dial with a pointer, a lacquered wooden base and a leveling screw. At the bottom of this web page the information from said catalog is shown. There are two versions: the 100 grams and the 200 grams. This is the 200 grams version. Up to 20 grams there is a stripe of measure per five grams, above 20 grams the chart is subdivided per ten grams. Here the leveling screw is placed directly in the wood of the base. Other letter scales of this so called Manometer model have a separate metal part which protrudes from the base for holding the leveling screw, as is shown at the previously presented brass letter scale from France.




rear of the scale
rear of the scale


detail 1
stripe of measure per 5 grams
up to 20 grams
detail 2
stripe of measure per 10 grams
from 20 to 200 grams
detail 3
weighing range 200 grams

the relatively thick pointer
the relatively thick pointer


two pointer positions
animation: at rest
and loaded with 100 grams

loaded with 100 grams
loaded with 100 grams


detail 3a
the small top plate

detail 3b
back image

detail 3c
detail of main pivot

detail 4
bottom shaft detail

detail 5
attached with two screws

detail 6
detail counterweight

detail 7
the black wood base

detail 8
leveling screw in the wood

detail 9
detail frame of the scale

detail 10
on its side


detail 11
the bottom with three supports
of which one adjustable
and a sticker
detail 12
the label of the stationary shop
Allain from Elbeuf-sur-Seine

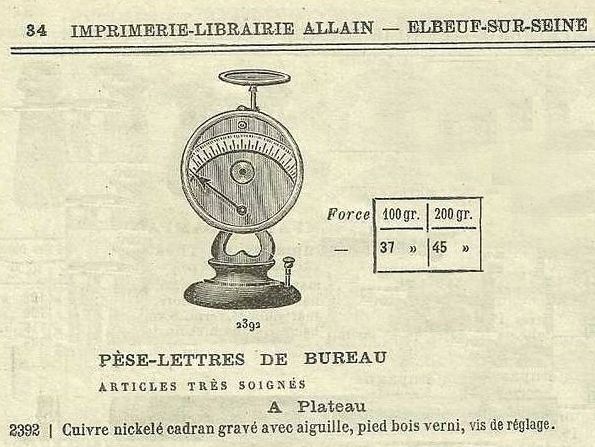

Allain catalog page detail
This information comes from a leaflet from Allain from the year 1920 / 1930 found through Google
article number 2392 - made of nickel-plated brass with engraved dial with a pointer, a lacquered wooden
base and a leveling screw. Two versions were made: the 100 grams and the 200 grams version.
